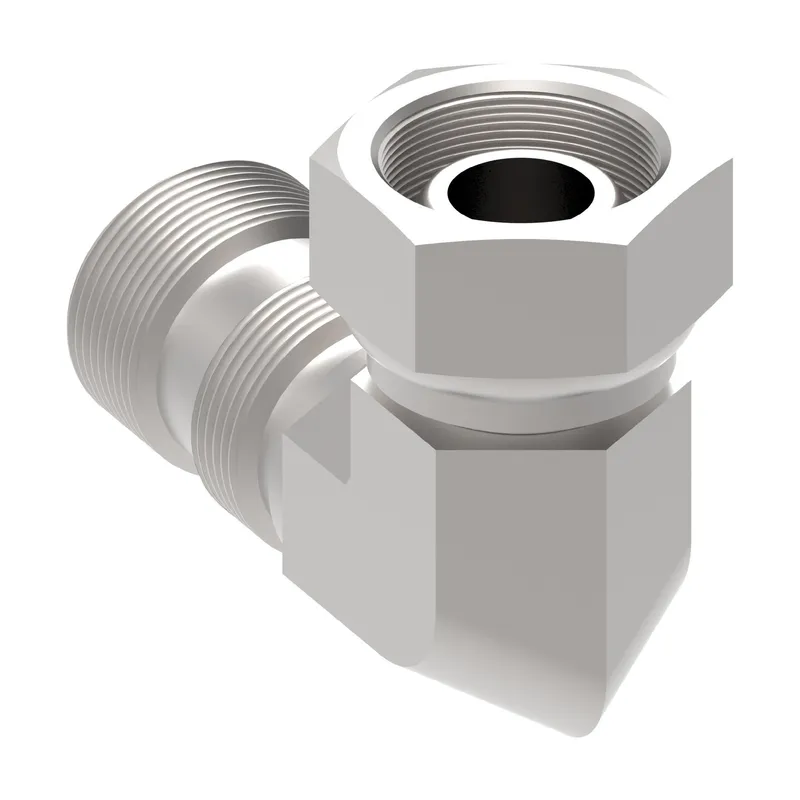

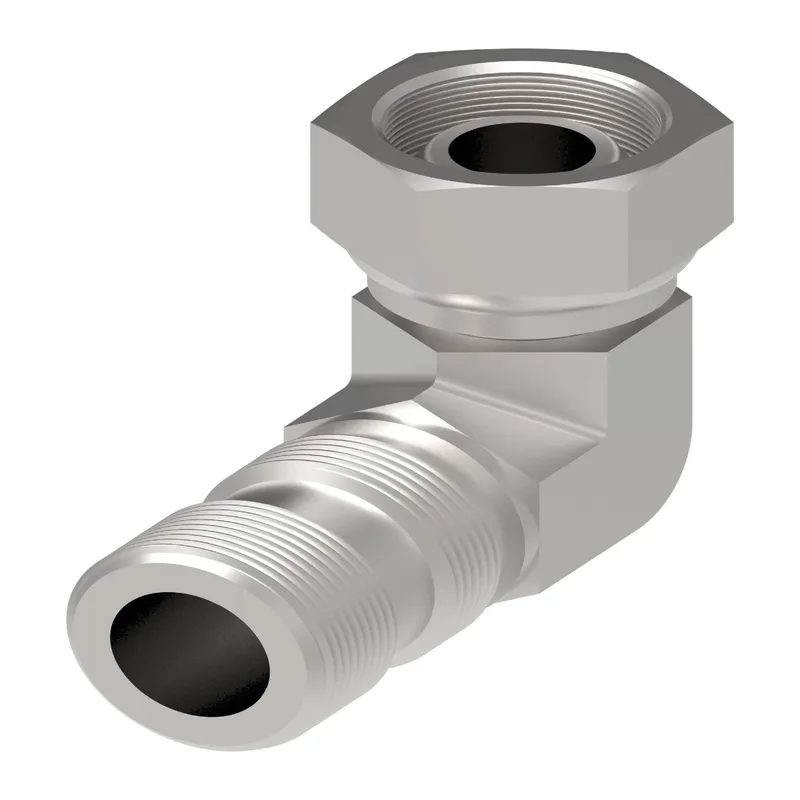

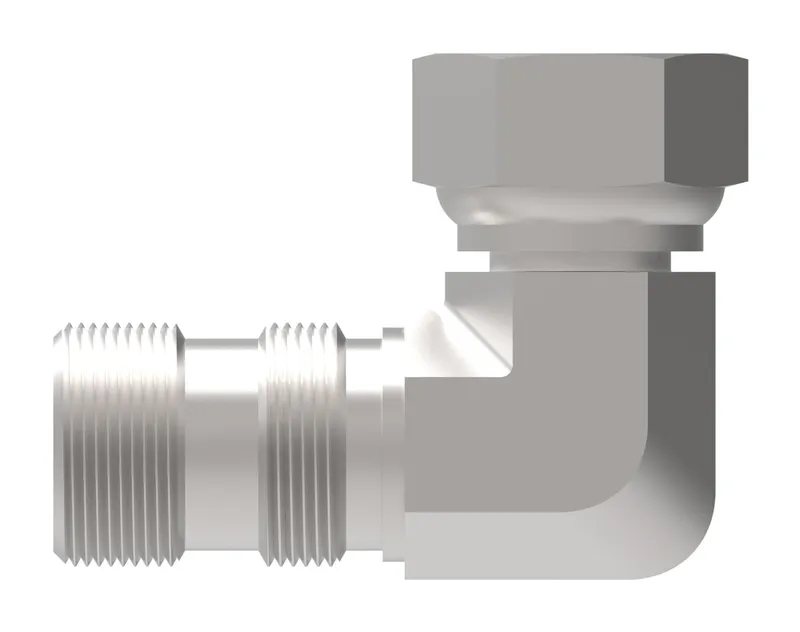

Adapter, SAE 37 90 elbow
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Adapters and swivel joints |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2214-1-16-16S be shipped?
2214-1-16-16S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2214-1-16-16S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2214-1-16-16S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2214-1-16-16S, subject to availability and destination.
Danfoss Adapter, SAE 37 90 elbow, manufacturer part number 2214-1-16-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Drop dimension IN | 2.050 |
| Drop dimension MM | 52.10 |
| End Type 1 | Female 37 degree swivel |
| End Type 2 | Male 37 degree |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.000 |
| Hex size 2 IN | 1.500 |
| Hex size 2 MM | 38.100 |
| Item type | Adapter-elbow |
| Product material | Carbon steel |
| Thread sealant | No |
| Thread size 1 | 1 5/16-12 UN |
| Thread size 2 | 1 5/16-12 UN |
| Tube outside diameter 1 IN | 0.840 |
| Tube outside diameter 1 MM | 21.3 |
| Tube outside diameter 2 IN | 0.840 |
| Tube outside diameter 2 MM | 21.3 |
| Working temp max C | 204 |
| Working temp max F | 400 |
| Working temp min C | -54 |
| Working temp min F | -65 |
More Danfoss (Drives) parts
Available on requestFITTING-NIPPLE
Available on requestAdapter WHD C3569X6 90D 04MP 06 ORB ADJ
Available on requestADAPTER, 90 DEGREE -8M ORB TO -6 MP
Available on requestAdptr 90 DEGREE -10M ORB TO -8MALE PIPE
Available on requestHOSE NIPPLE ASSY, 2P/06, BF/06, CS, STR

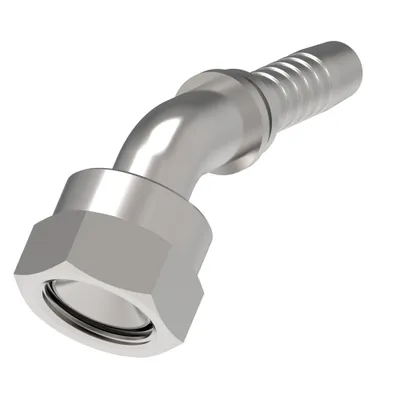

Available on requestHOSE NIPPLE ASSY, 2P/08, BF/08, CS, STR
