Danfoss 20791-22-08XZ

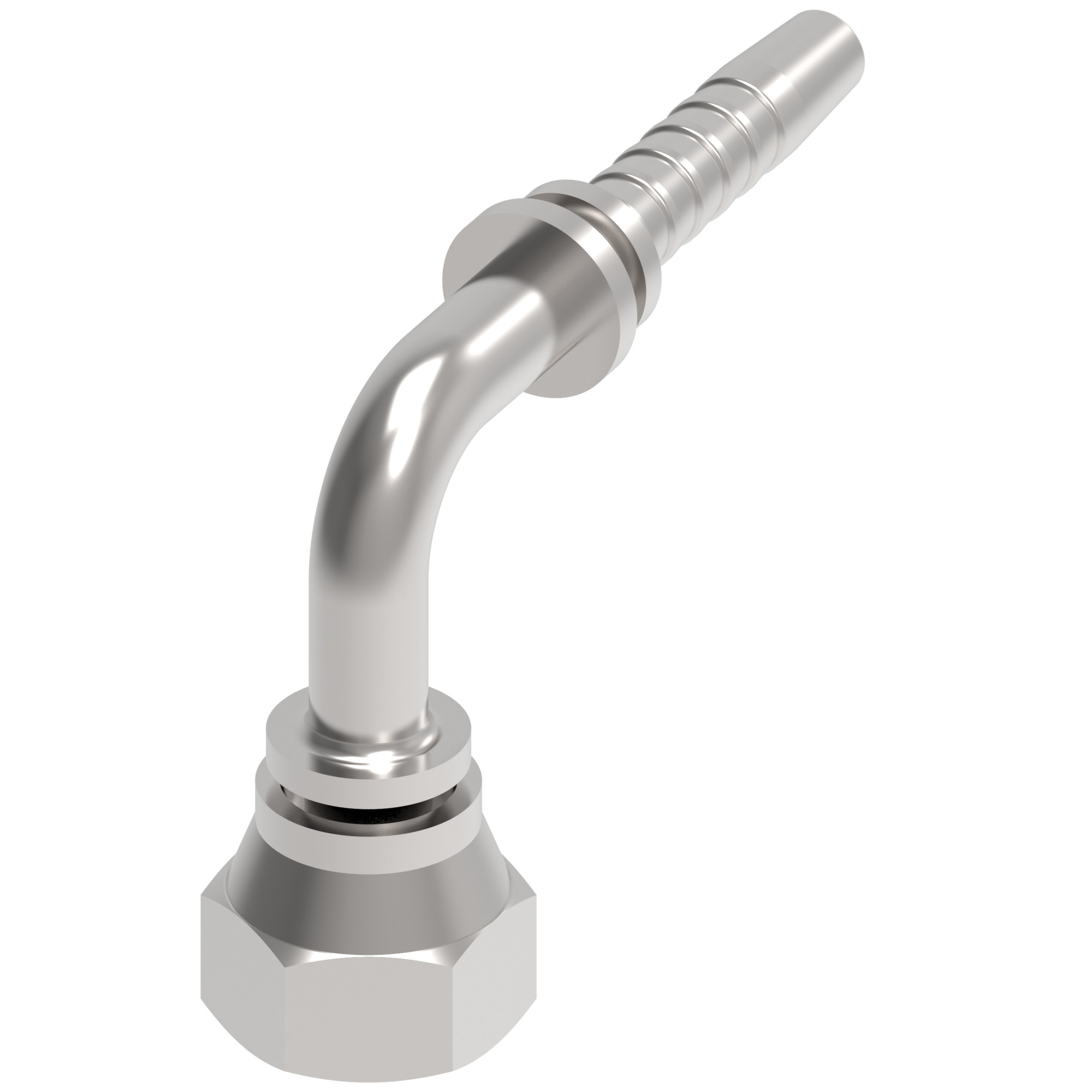

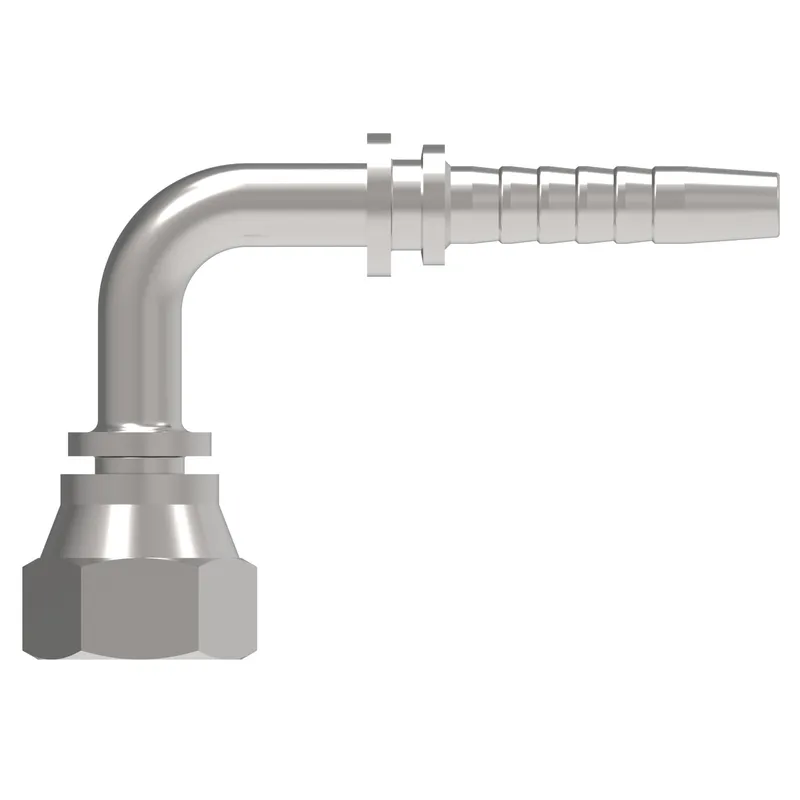

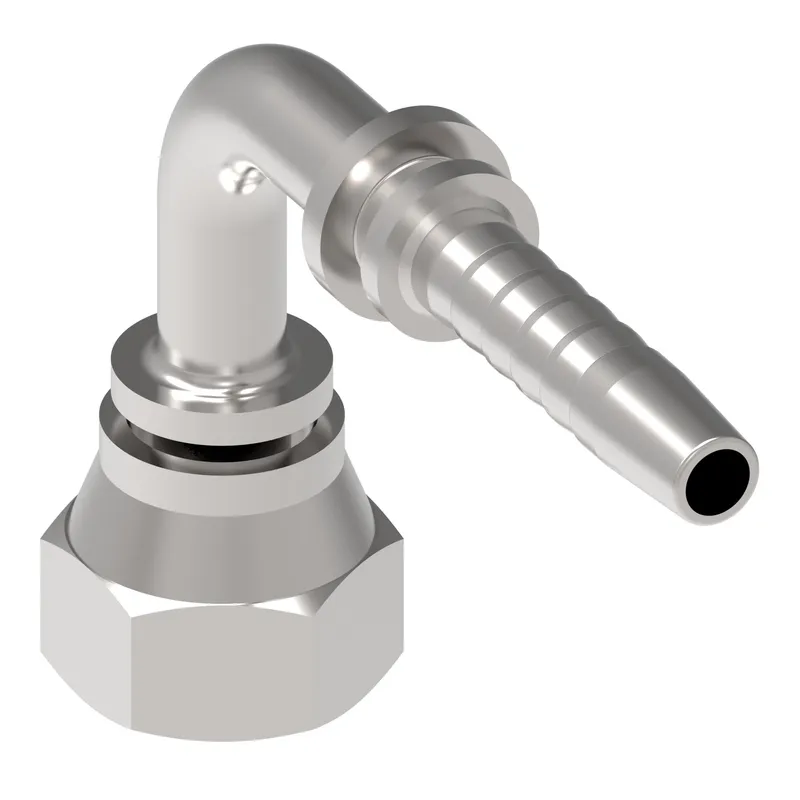

HOSE NIPPLE ASSY,2P/08,JIC-F/22,CS,90D

MPN: 20791-22-08XZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20791-22-08XZ?

Danfoss HOSE NIPPLE ASSY,2P/08,JIC-F/22,CS,90D, manufacturer part number 20791-22-08XZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.850
A dimension MM	72.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	1.880
Drop dimension MM	48.00
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	1.610
Hose cut off factor MM	41.000
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	3.208
Product height mm	81.483
Product length in	3.385
Product length mm	85.979
Product material	Carbon steel
Product width in	1.062
Product width mm	26.974
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M22x1.5
