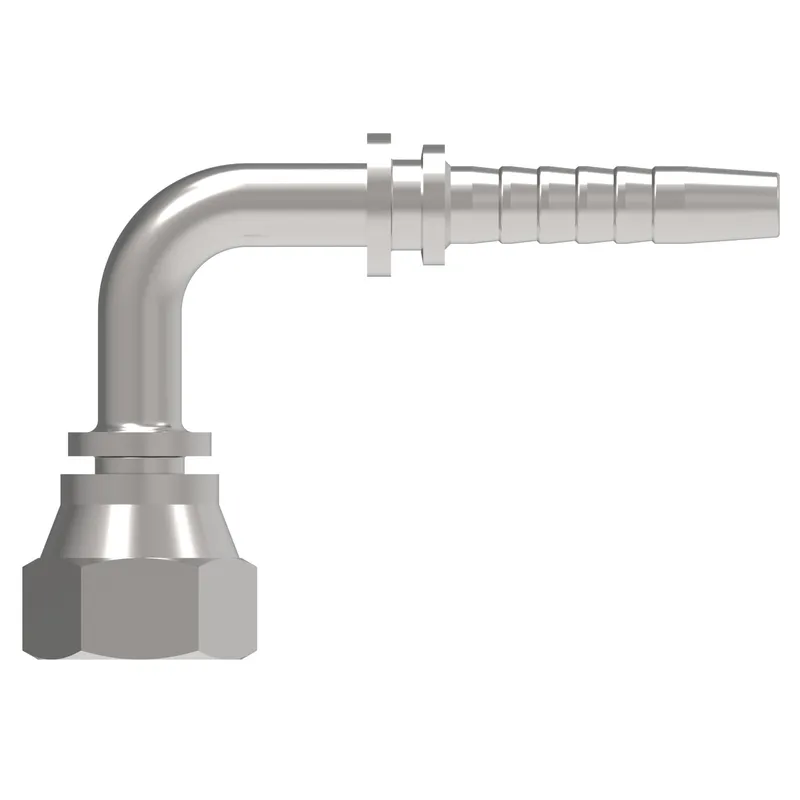

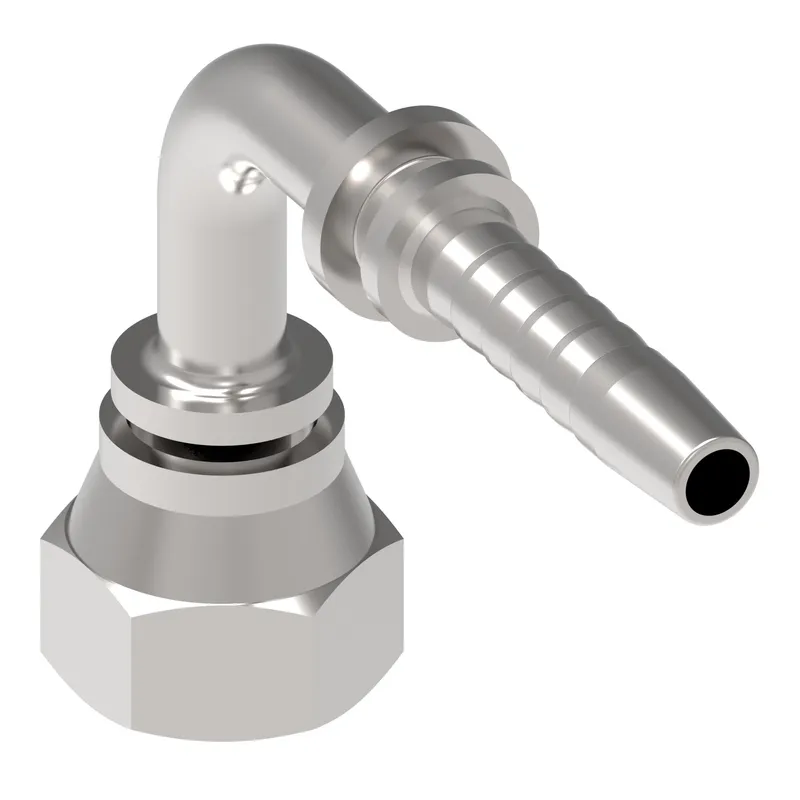

Danfoss 20791-18-06H65Z

HOSE NIPPLE ASSY,2P/06,JIC-F/18,CS,90D

MPN: 20791-18-06H65Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20791-18-06H65Z?

Danfoss HOSE NIPPLE ASSY,2P/06,JIC-F/18,CS,90D, manufacturer part number 20791-18-06H65Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.560
A dimension MM	65.250
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction Style	Crimp
Drop dimension IN	2.550
Drop dimension MM	65.00
Finish plating	Zinc plating
Hex size 1 IN	0.950
Hex size 1 MM	24.130
Hex size 2 IN	0.945
Hex size 2 MM	24.003
Hose cut off factor IN	1.380
Hose cut off factor MM	35.250
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	3.740
Product height mm	94.996
Product length in	3.041
Product length mm	77.241
Product material	Carbon steel
Product width in	0.944
Product width mm	23.977
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M18x1.5
