Danfoss 20711-18-05TZ

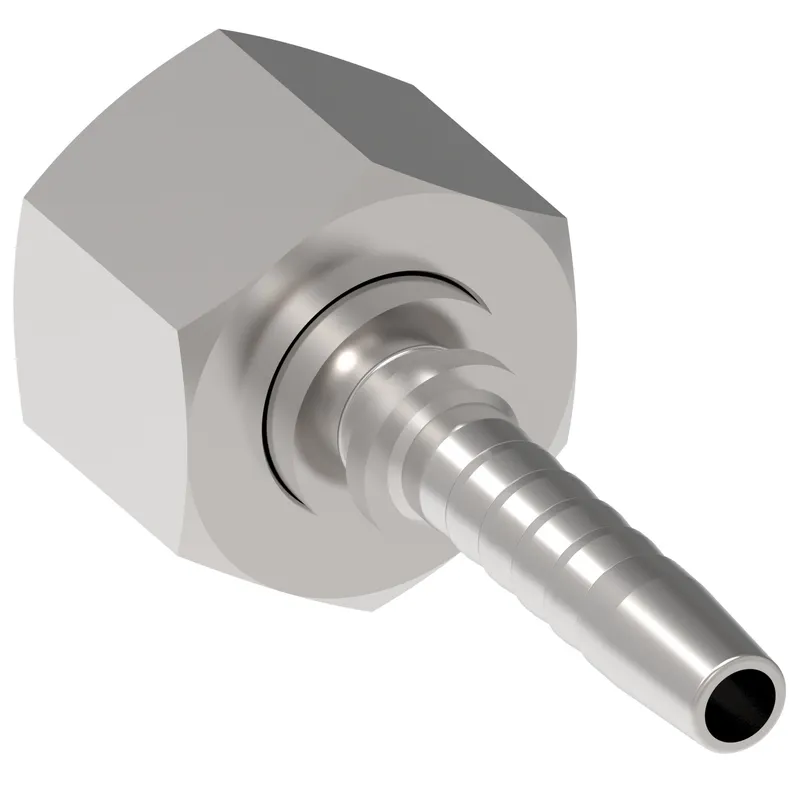

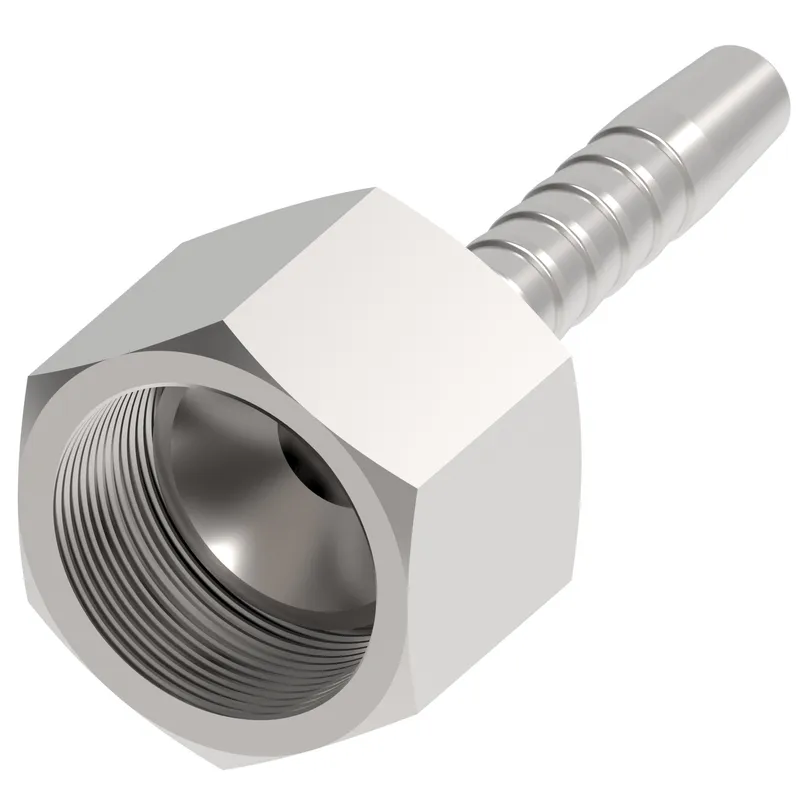

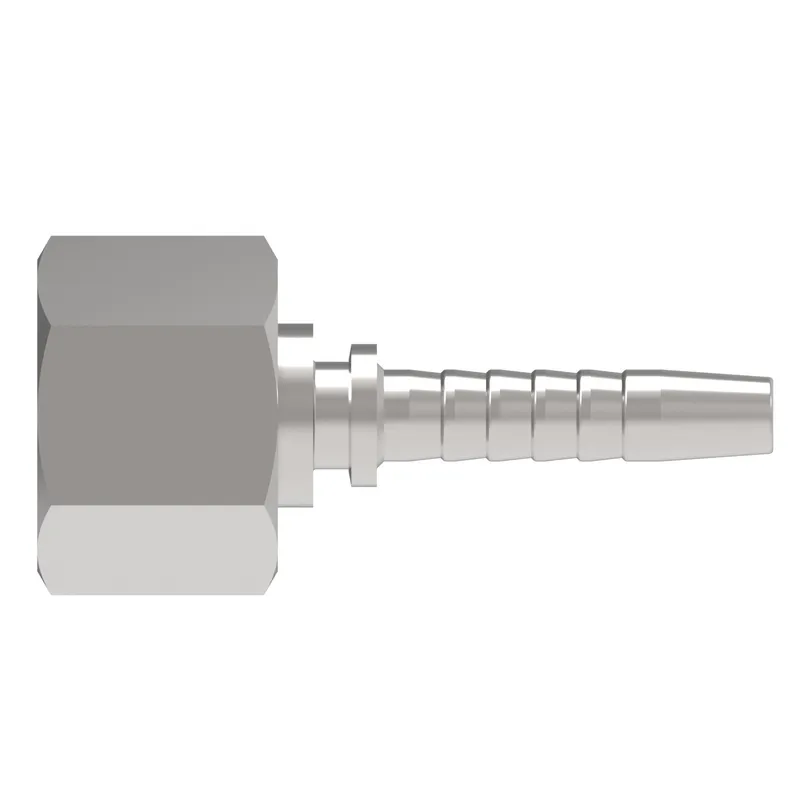

HOSE NIPPLE ASSY,2P/05,JIC-F/18,CS,STR

MPN: 20711-18-05TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20711-18-05TZ?

Danfoss HOSE NIPPLE ASSY,2P/05,JIC-F/18,CS,STR, manufacturer part number 20711-18-05TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.730
A dimension MM	44.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hex size 2 IN	0.870
Hex size 2 MM	22.098
Hose cut off factor IN	0.620
Hose cut off factor MM	16.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	1.000
Product height mm	25.400
Product length in	2.047
Product length mm	51.993
Product material	Carbon steel
Product width in	0.866
Product width mm	21.996
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M18x1.5
