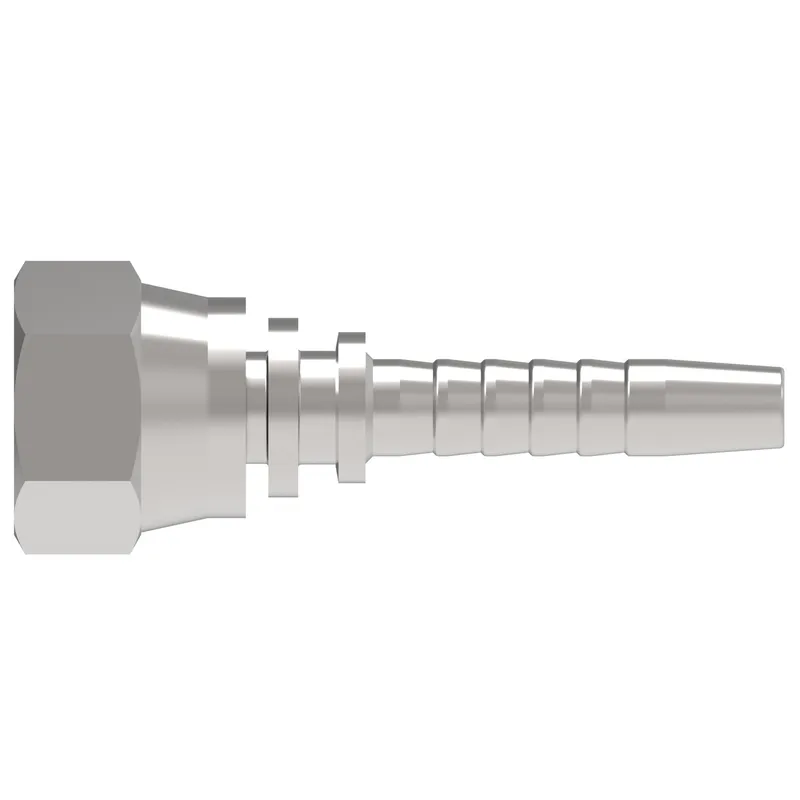

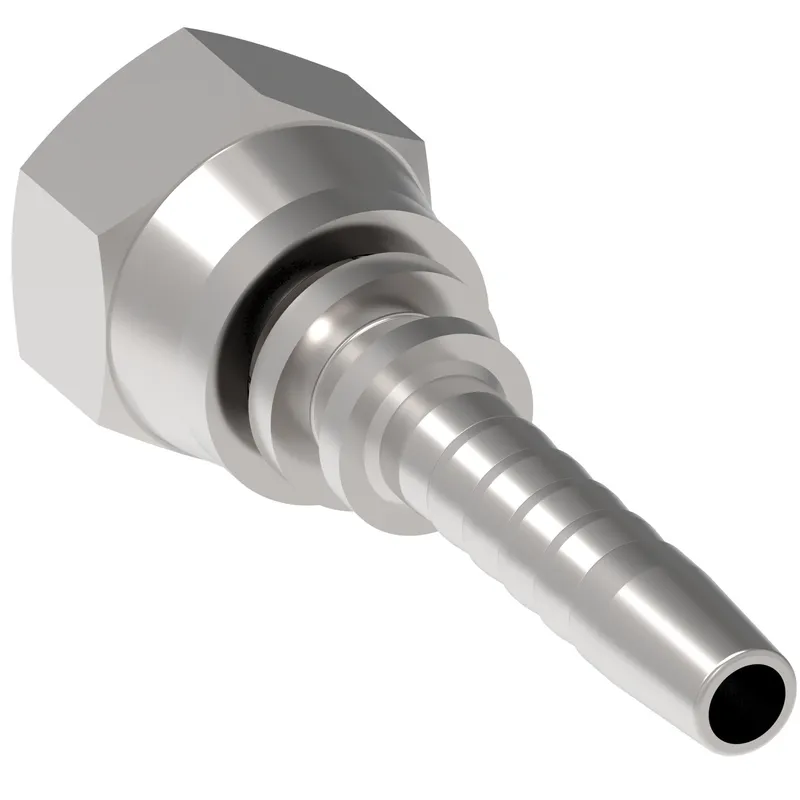

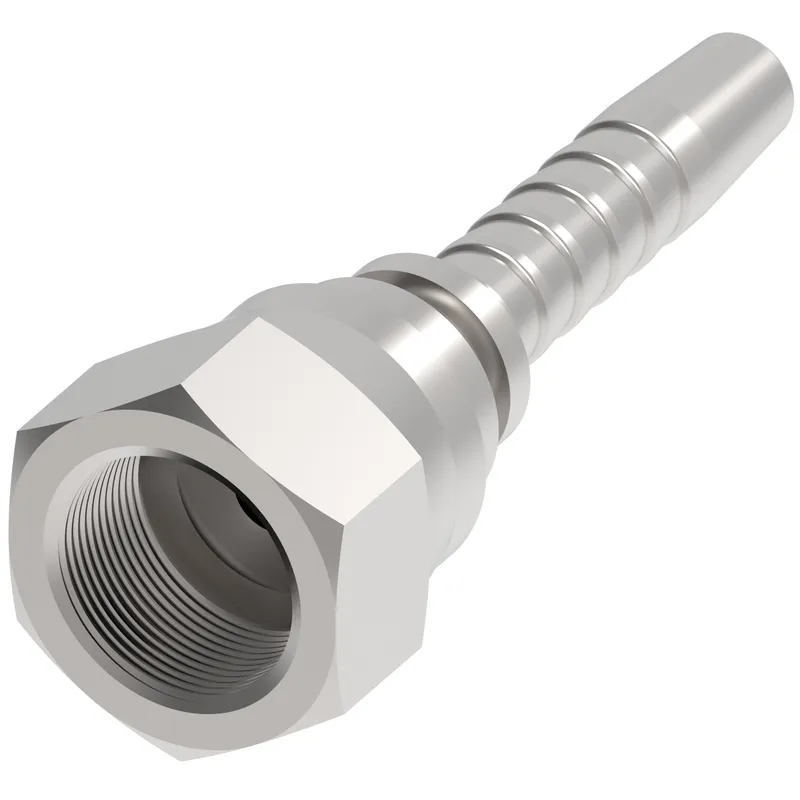

Danfoss 20711-14-04Z

HOSE NIPPLE ASSY,2P/04,JIC-F/14,CS,STR

MPN: 20711-14-04Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20711-14-04Z?

Danfoss HOSE NIPPLE ASSY,2P/04,JIC-F/14,CS,STR, manufacturer part number 20711-14-04Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.710
A dimension MM	43.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hose cut off factor IN	0.610
Hose cut off factor MM	15.500
Hose size	-4
Inside diameter IN	0.157
Inside diameter MM	4.000
Product height in	0.870
Product height mm	22.098
Product length in	1.713
Product length mm	43.510
Product material	Carbon steel
Product width in	19.050
Product width mm	19.05
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M14x1.5
