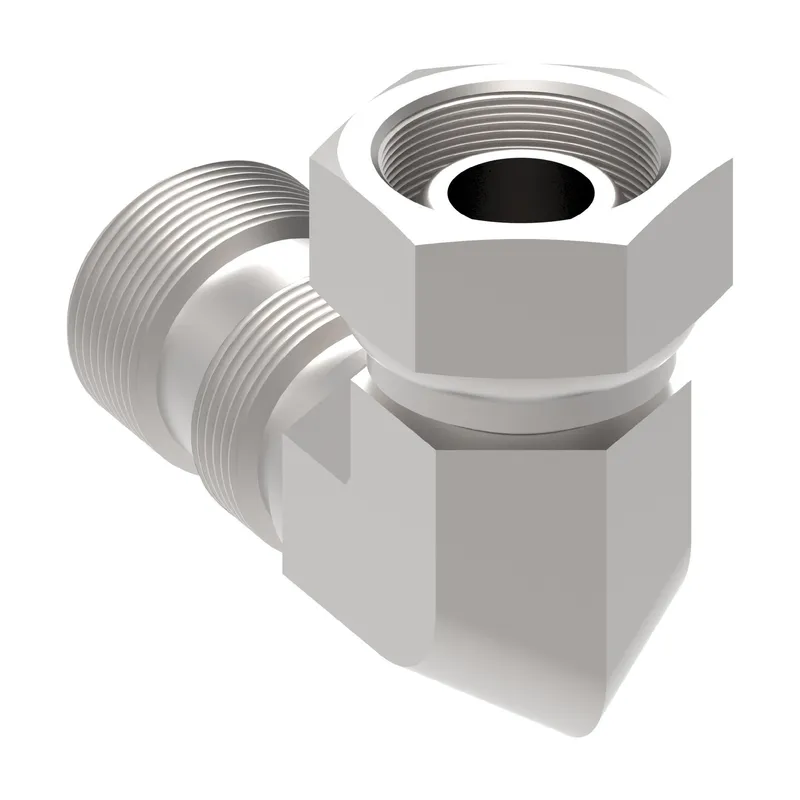

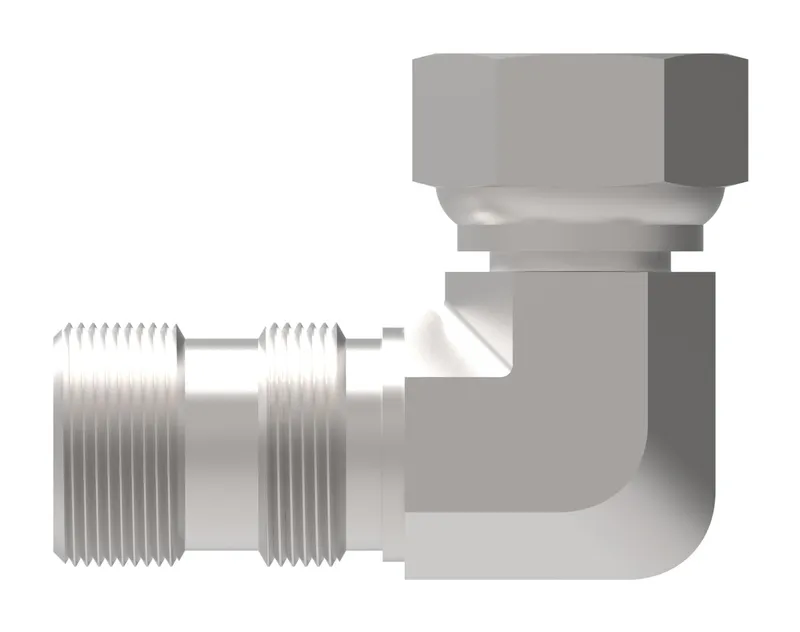

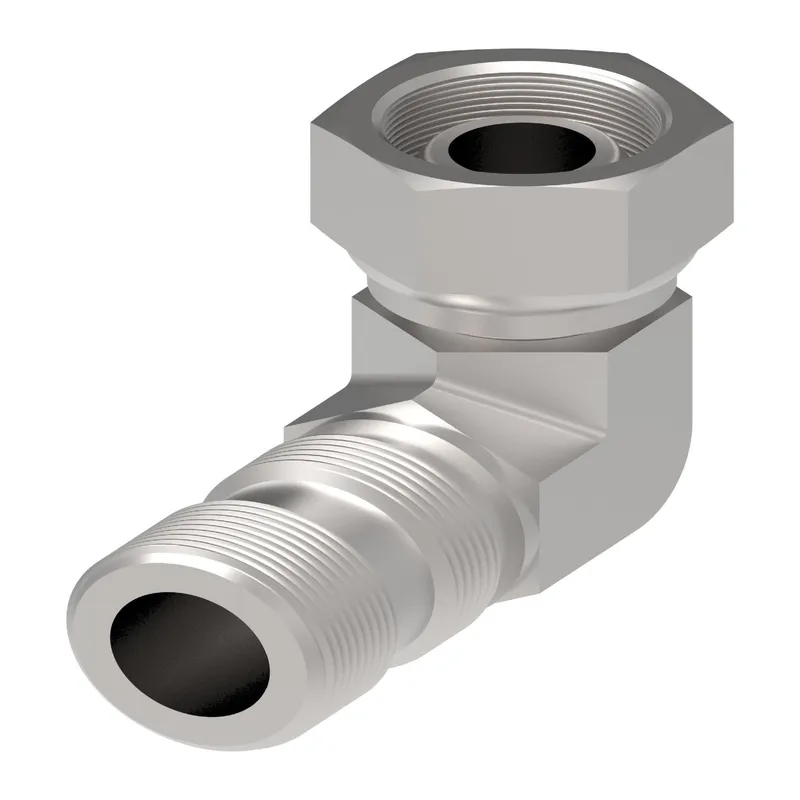

ADP SAE ORB NPSM 90D 12F NPSM 16M ORB
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Adapters and swivel joints |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 206805-12-16S be shipped?
206805-12-16S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 206805-12-16S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 206805-12-16S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 206805-12-16S, subject to availability and destination.
Danfoss ADP SAE ORB NPSM 90D 12F NPSM 16M ORB, manufacturer part number 206805-12-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Drop dimension IN | 2.120 |
| Drop dimension MM | 53.80 |
| End Type 1 | Female pipe swivel (NPSM) |
| End Type 2 | Male 37 degree |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.260 |
| Hex size 1 MM | 32.000 |
| Hex size 2 IN | 1.250 |
| Hex size 2 MM | 31.800 |
| Product material | Carbon steel |
| Thread sealant | No |
| Tube outside diameter 1 IN | 0.620 |
| Tube outside diameter 1 MM | 15.7 |
| Tube outside diameter 2 IN | 0.840 |
| Tube outside diameter 2 MM | 21.3 |
| Working temp max C | 204 |
| Working temp max F | 400 |
| Working temp min C | -54 |
| Working temp min F | -65 |
