Danfoss 206804-12-12S

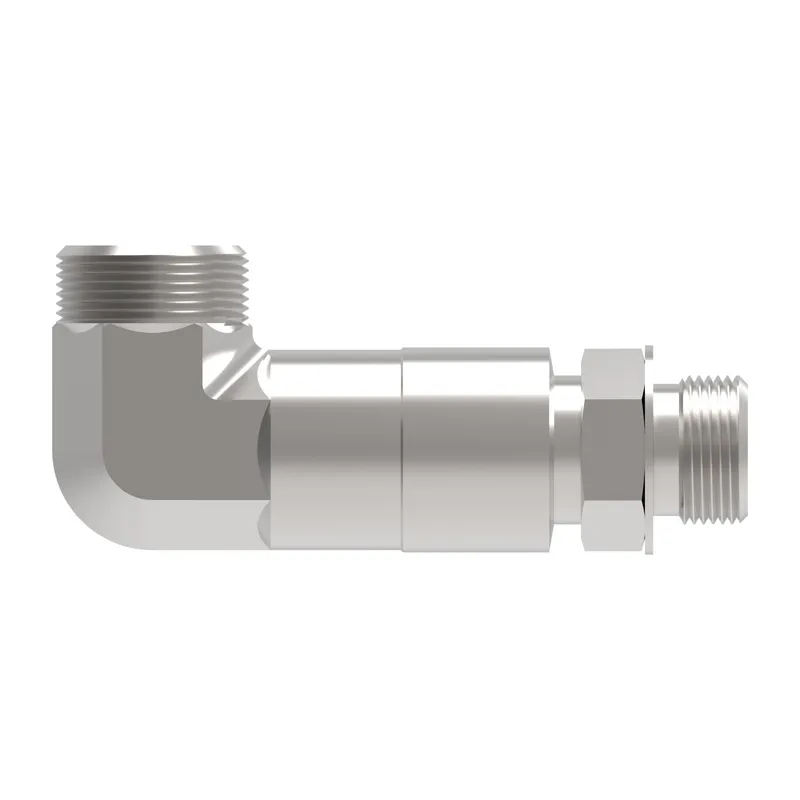

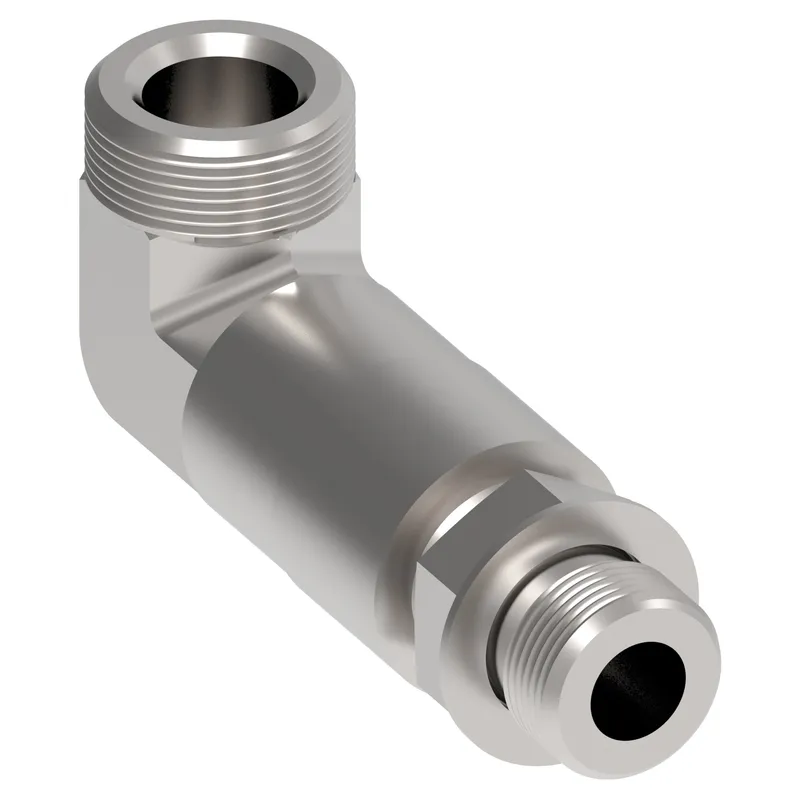

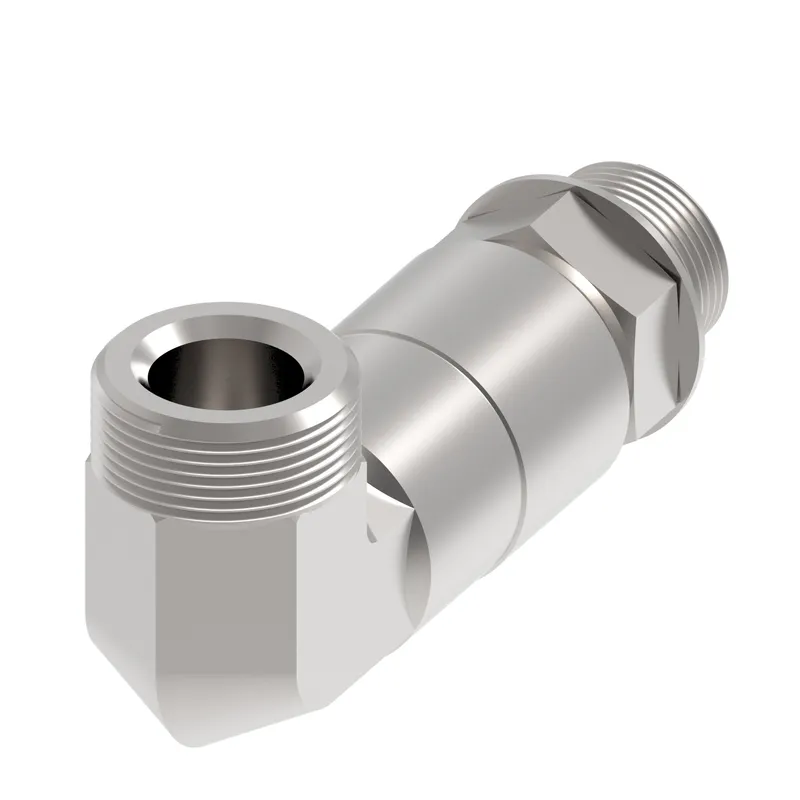

Adapter, SAE ORB 90 elbow

MPN: 206804-12-12S
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 206804-12-12S?

Danfoss Adapter, SAE ORB 90 elbow, manufacturer part number 206804-12-12S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146187130
Angle shape	90 Degree
Brand	Danfoss
Drop dimension IN	4.120
Drop dimension MM	104.60
End Type 1	Female pipe (NPTF)
Finish plating	Dura-Kote
Hex size 1 IN	1.260
Hex size 1 MM	32.000
Hex size 2 IN	0.640
Hex size 2 MM	16.300
Item type	Adapter-elbow
Product material	Carbon steel
Thread sealant	No
Thread size 2	1 1/16-12 UN
Working temp max C	204
Working temp max F	400
Working temp min C	-54
Working temp min F	-65

206804-12-12S: frequently asked questions

When can 206804-12-12S be shipped?

206804-12-12S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 206804-12-12S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 206804-12-12S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 206804-12-12S, subject to availability and destination.
