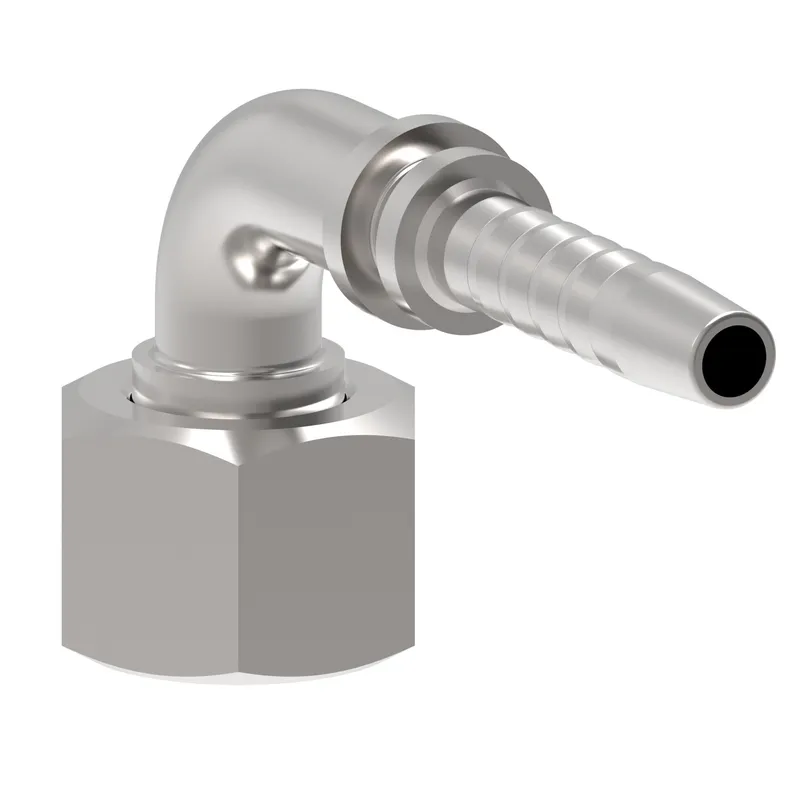

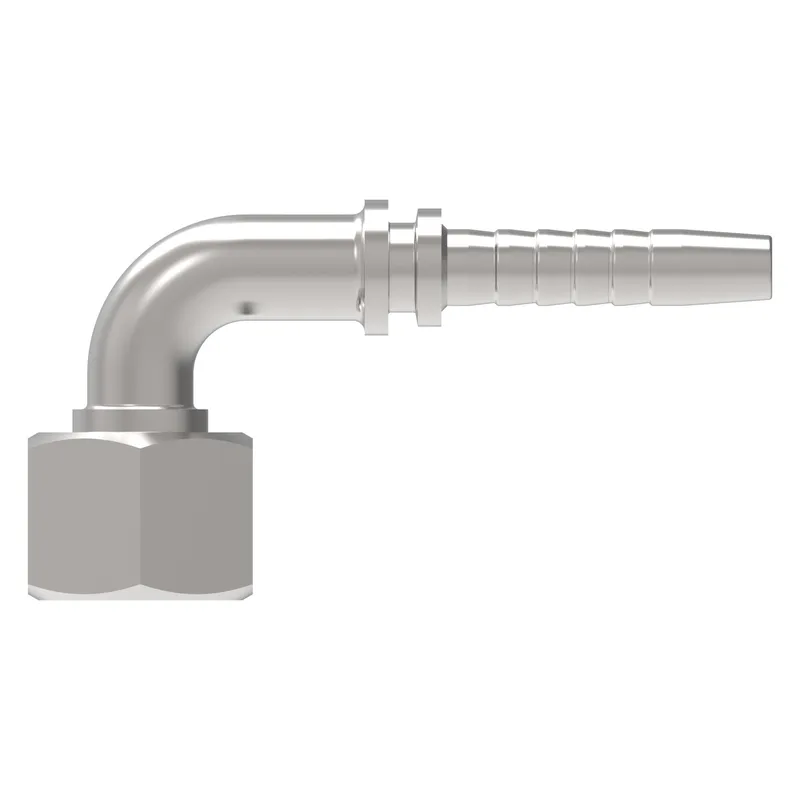

Danfoss 20591-30-10TZF

HOSE NIPPLE ASSY,2P/10,DKOH-B/30,CS,90D

MPN: 20591-30-10TZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-30-10TZF?

Danfoss HOSE NIPPLE ASSY,2P/10,DKOH-B/30,CS,90D, manufacturer part number 20591-30-10TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.267
A dimension MM	83.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.948
Drop dimension MM	49.50
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hose cut off factor IN	1.929
Hose cut off factor MM	49.000
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	2.480
Product height mm	62.992
Product length in	4.252
Product length mm	108.001
Product material	Carbon steel
Product width in	1.417
Product width mm	35.991
Series	Winner 2-Piece
Thread size 1	M30x2
Tube OD 1 IN	0.787
Tube OD 1 MM	20.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20591-30-10TZF: frequently asked questions

When can 20591-30-10TZF be shipped?

20591-30-10TZF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20591-30-10TZF in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20591-30-10TZF and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591-30-10TZF, subject to availability and destination.
