Danfoss 20591-30-08TZ

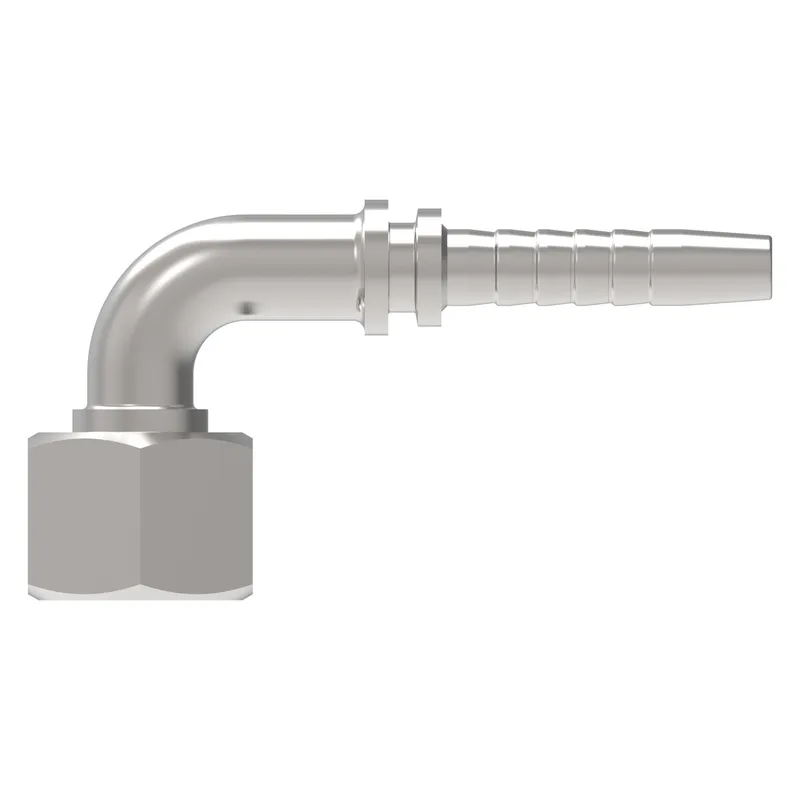

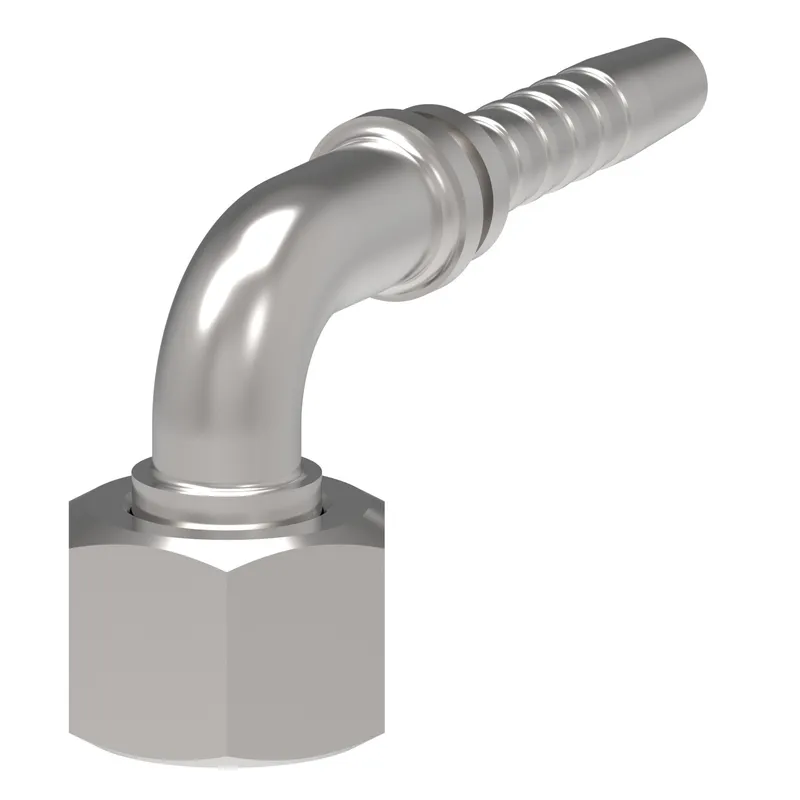

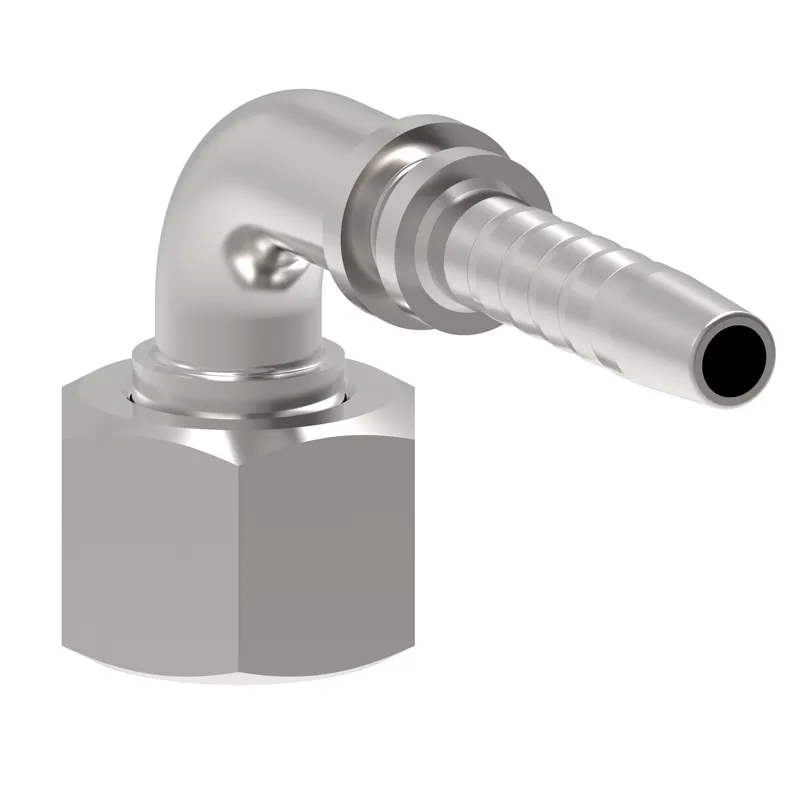

HOSE NIPPLE ASSY,2P/08,DKOH-B/30,CS,90D

MPN: 20591-30-08TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20591-30-08TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOH-B/30,CS,90D, manufacturer part number 20591-30-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.992
A dimension MM	76.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.811
Drop dimension MM	46.00
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hose cut off factor IN	1.751
Hose cut off factor MM	44.500
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.303
Product height mm	58.496
Product length in	3.701
Product length mm	94.005
Product material	Carbon steel
Product width in	1.417
Product width mm	35.991
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	M30x2
Tube OD 1 IN	0.787
Tube OD 1 MM	20.000
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
