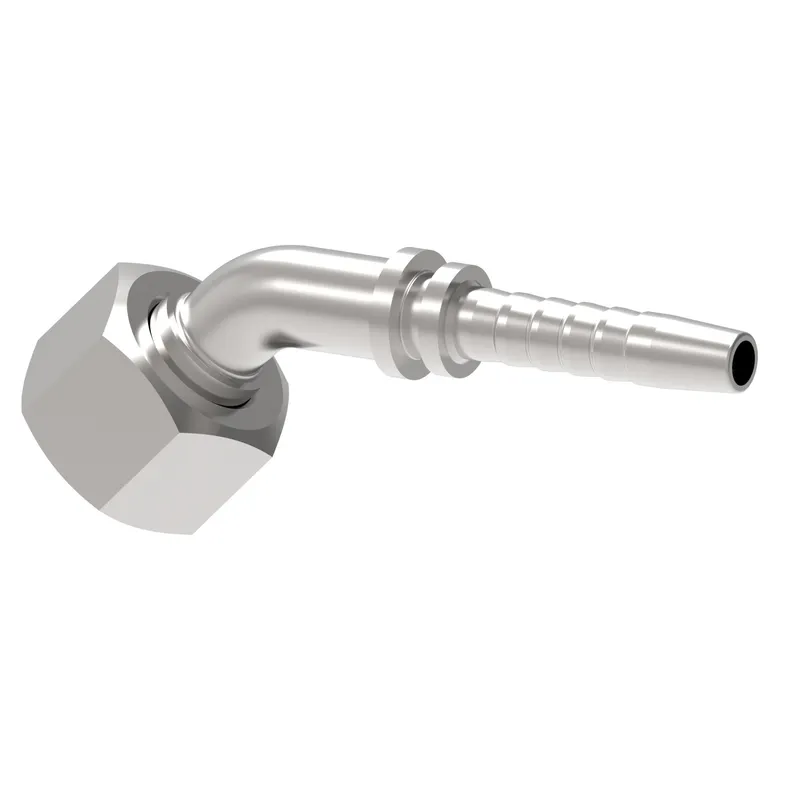

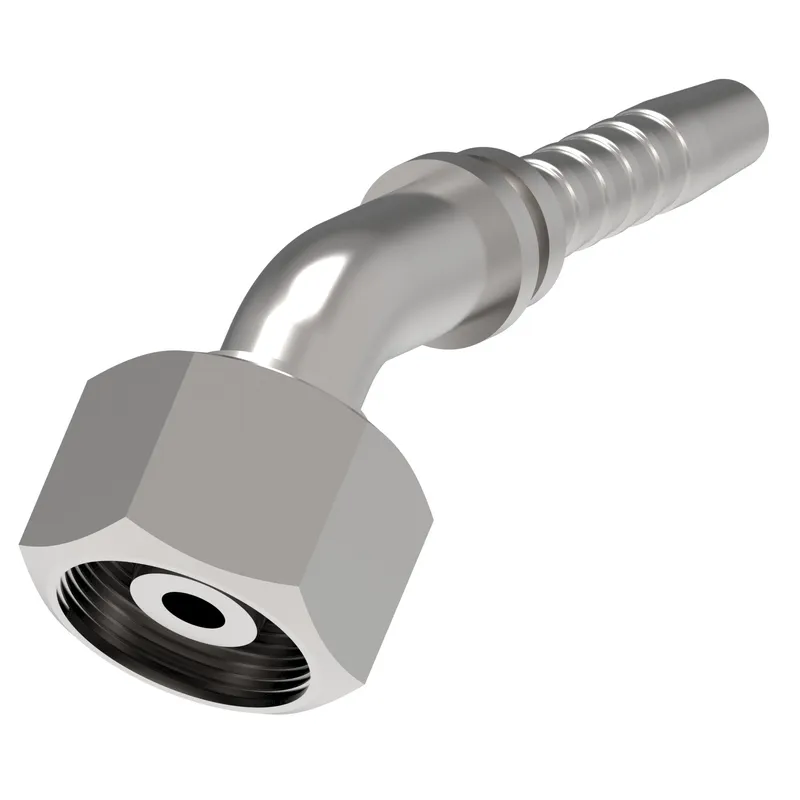

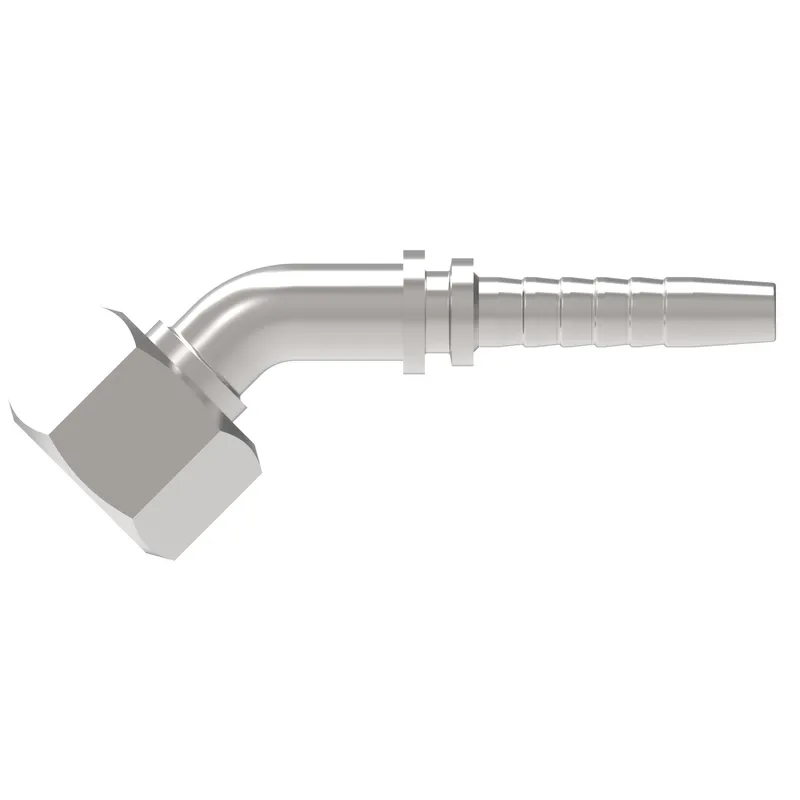

What is the Danfoss 20541-18-04TZF?

Danfoss HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,45D, manufacturer part number 20541-18-04TZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.640
A dimension MM67.100
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
Drop dimension IN0.670
Drop dimension MM17.00
End connection torque37-44 lb-ft(50-60 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hose cut off factor IN1.540
Hose cut off factor MM39.100
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in1.460
Product height mm37.084
Product length in3.140
Product length mm79.756
Product materialCarbon steel
Product width in0.866
Product width mm21.996
SeriesWinner 2-Piece
Thread size 1M18x1.5
Tube OD 1 IN0.393
Tube OD 1 MM10.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
