Danfoss 20541-18-04TZ

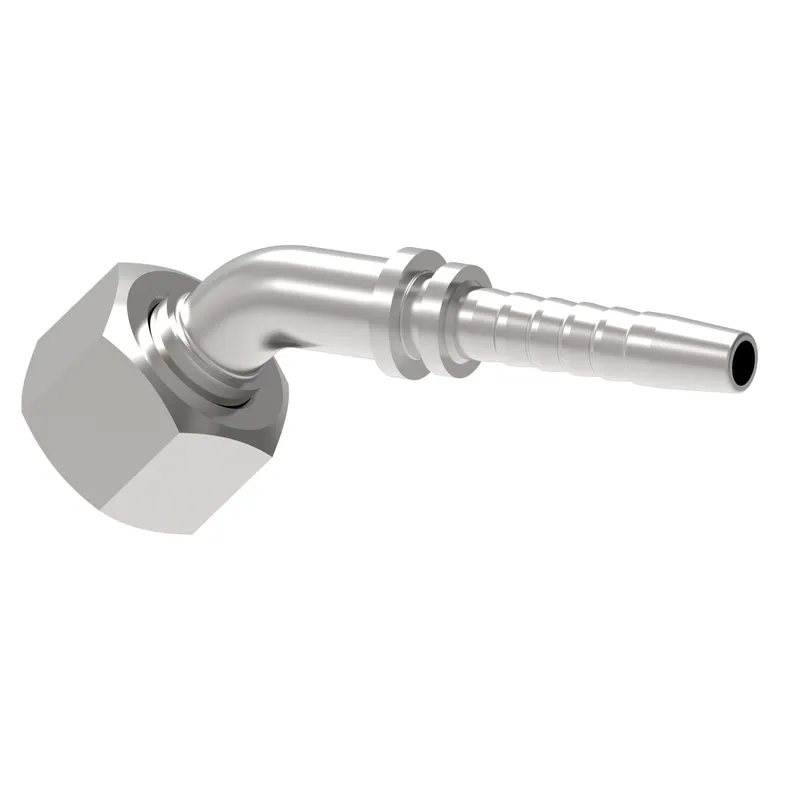

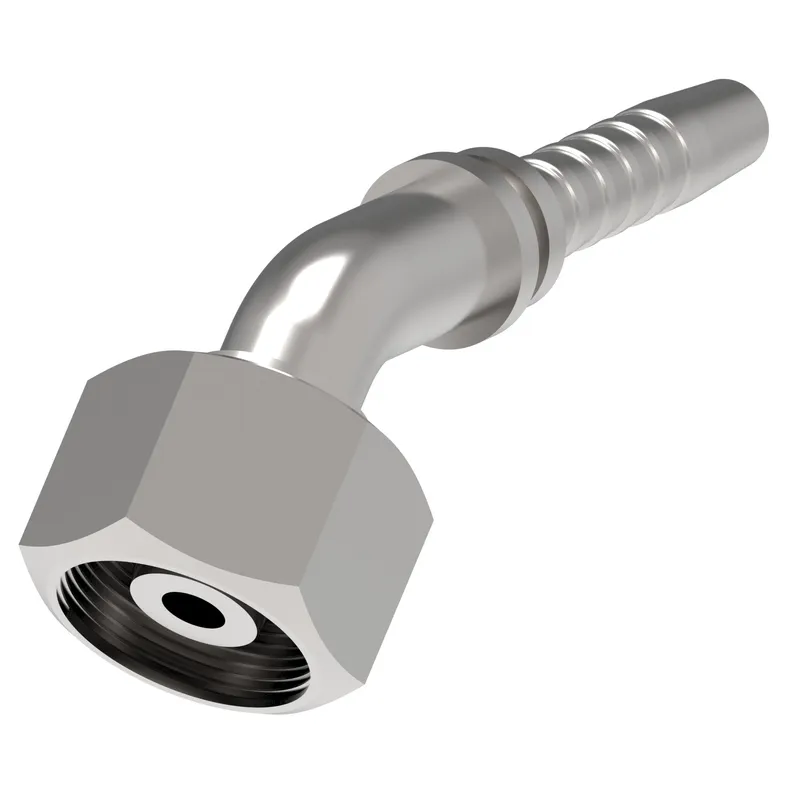

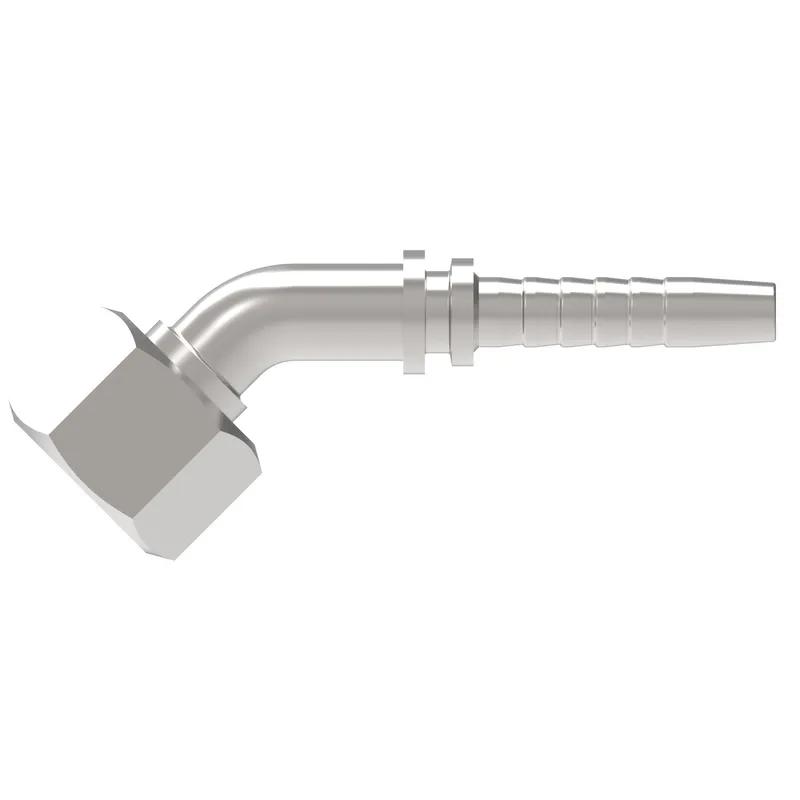

HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,45D

MPN
20541-18-04TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20541-18-04TZ?

Danfoss HOSE NIPPLE ASSY,2P/04,DKOH-B/18,CS,45D, manufacturer part number 20541-18-04TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.640
A dimension MM67.100
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
Drop dimension IN0.670
Drop dimension MM17.00
End connection torque37-44 lb-ft(50-60 Nm)
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 MM22.000
Hose cut off factor IN1.540
Hose cut off factor MM39.100
Hose size-4
Inside diameter IN0.160
Inside diameter MM4.000
Product height in1.398
Product height mm35.509
Product length in3.075
Product length mm78.105
Product materialCarbon steel
Product width in0.866
Product width mm21.996
Proposition 65Cancer and Reproductive Harm
SeriesWinner 2-Piece
Thread size 1M18x1.5
Tube OD 1 IN0.393
Tube OD 1 MM10.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20541-18-04TZ: frequently asked questions

When can 20541-18-04TZ be shipped?

20541-18-04TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20541-18-04TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20541-18-04TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541-18-04TZ, subject to availability and destination.
