Danfoss 20511YT-30-12TZ

HOSE NIPPLE ASSY,2P/12,DKOH-B/30,CS,STR

MPN
20511YT-30-12TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20511YT-30-12TZ?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOH-B/30,CS,STR, manufacturer part number 20511YT-30-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.893
A dimension MM73.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Construction StyleCrimp
End Type 124 deg. DKO swivel heavy duty
Finish platingZinc plating
Hex size 1 IN1.417
Hex size 1 MM36.000
Hose cut off factor IN1.377
Hose cut off factor MM35.000
Hose size-12
Inside diameter IN0.275
Inside diameter MM15.000
Product height in1.620
Product height mm41.148
Product length in3.120
Product length mm79.248
Product materialCarbon steel
Product width in1.450
Product width mm40.64
SeriesWinner 2-Piece
Thread sealantNo
Tube OD 1 IN0.780
Tube OD 1 MM20.000

20511YT-30-12TZ: frequently asked questions

When can 20511YT-30-12TZ be shipped?

20511YT-30-12TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20511YT-30-12TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20511YT-30-12TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511YT-30-12TZ, subject to availability and destination.

More Danfoss (Drives) parts

Danfoss 20511YT-20-06TZ – HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,STR
Danfoss
20511YT-20-06TZ

HOSE NIPPLE ASSY,2P/06,DKOH-B/20,CS,STR

Danfoss 20511YT-24-08TZ – HOSE NIPPLE ASSY,2P/08,DKOH-B/24,CS,STR
Danfoss
20511YT-24-08TZ

HOSE NIPPLE ASSY,2P/08,DKOH-B/24,CS,STR

Danfoss 20511YT-36-12TZ – HOSE NIPPLE ASSY,2P/12,DKOH-B/36,CS,STR
Danfoss
20511YT-36-12TZ

HOSE NIPPLE ASSY,2P/12,DKOH-B/36,CS,STR

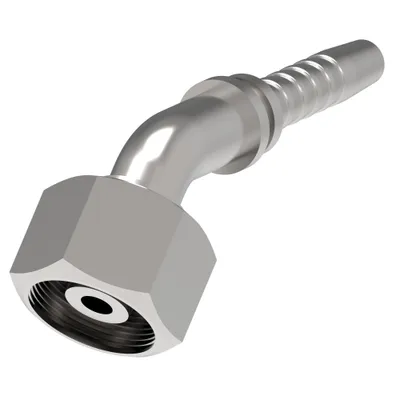

Danfoss 20541-16-04TZ – HOSE NIPPLE ASSY,2P/04,DKOH-B/16,CS,45D
Danfoss
20541-16-04TZ

HOSE NIPPLE ASSY,2P/04,DKOH-B/16,CS,45D

Danfoss 20541-16-04TZF – HOSE NIPPLE ASSY,2P/04,DKOH-B/16,CS,45D
Danfoss
20541-16-04TZF

HOSE NIPPLE ASSY,2P/04,DKOH-B/16,CS,45D

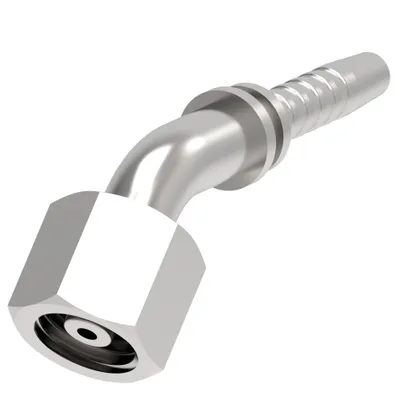

Danfoss 20541-16-05WZ – HOSE NIPPLE ASSY,2P/05,DKOH-B/16,CS,45D
