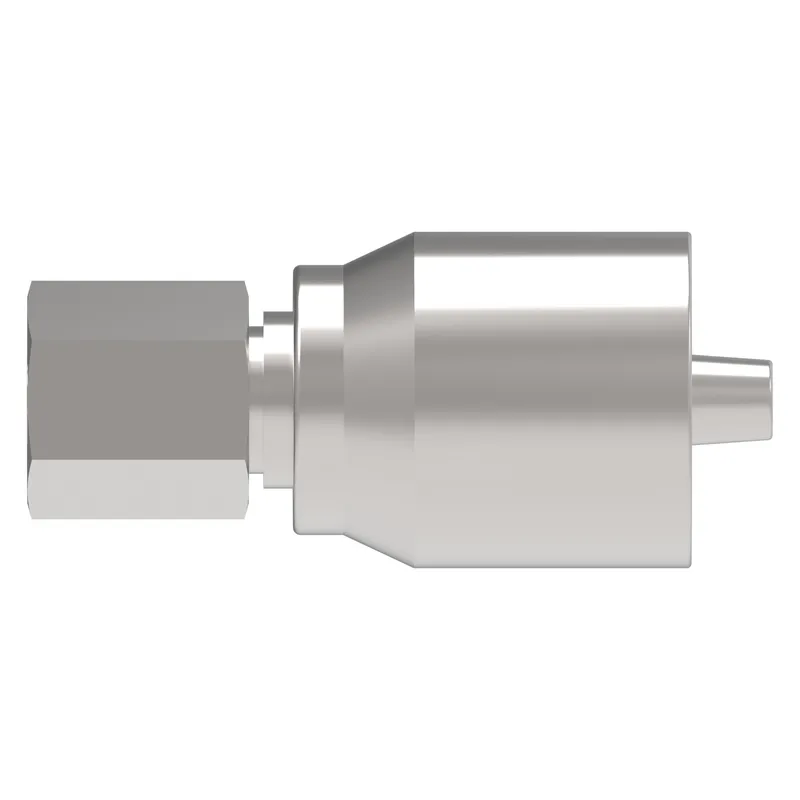

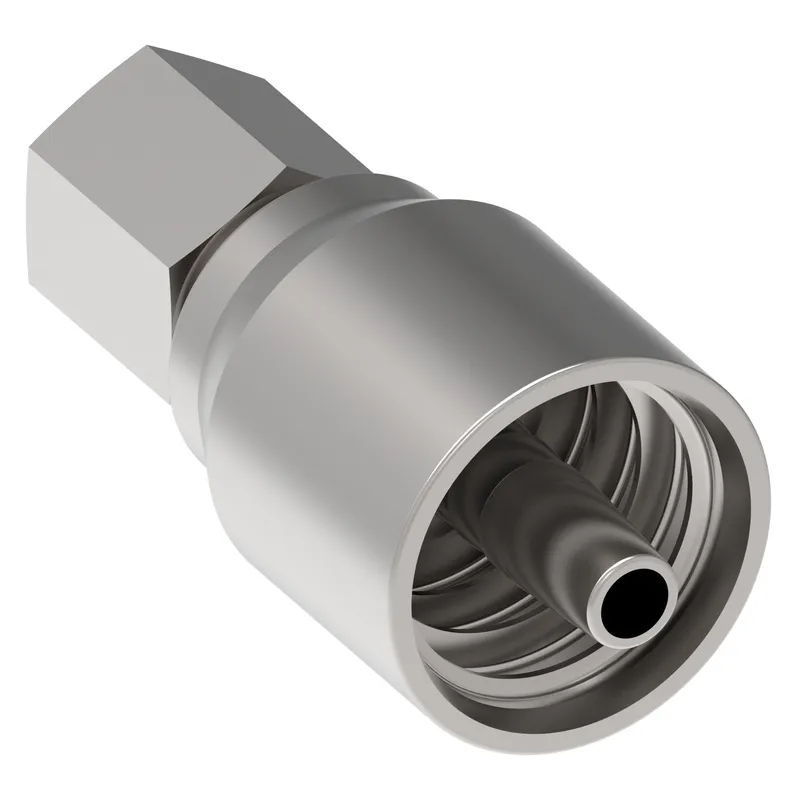

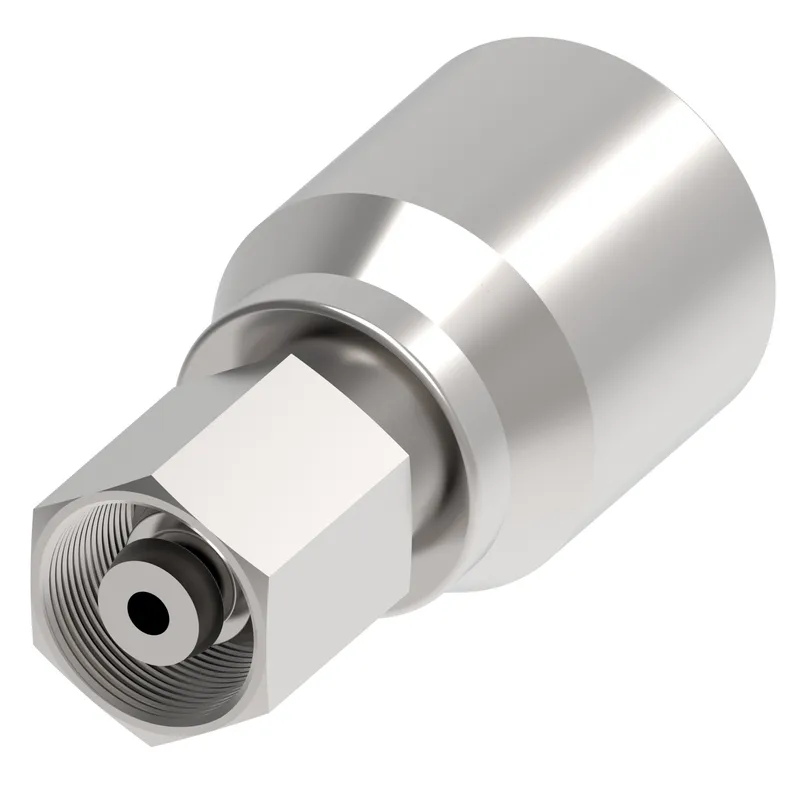

Danfoss 20511YT-22-08SRT

HOSE NIPPLE ASSY,2P/08,DKOH-B/22,AN,STR

MPN
20511YT-22-08SRT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20511YT-22-08SRT?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOH-B/22,AN,STR, manufacturer part number 20511YT-22-08SRT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.322
A dimension MM59.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End size 2-8
End Type 124 deg. DKO swivel heavy duty
End Type 2Line/hose/tube
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN1.082
Hose cut off factor MM27.500
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in1.212
Product height mm30.784
Product length in2.362
Product length mm59.994
Product material304 Stainless steel
Product width in1.212
Product width mm30.785
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M22x1.5
Tube OD 1 IN0.550
Tube OD 1 MM14.000

20511YT-22-08SRT: frequently asked questions

When can 20511YT-22-08SRT be shipped?

20511YT-22-08SRT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20511YT-22-08SRT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20511YT-22-08SRT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20511YT-22-08SRT, subject to availability and destination.
