Danfoss 20491Y-30-12SRT

HOSE NIPPLE ASSY,2P/12,DKOL/30,AN,90D

MPN: 20491Y-30-12SRT
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-30-12SRT?

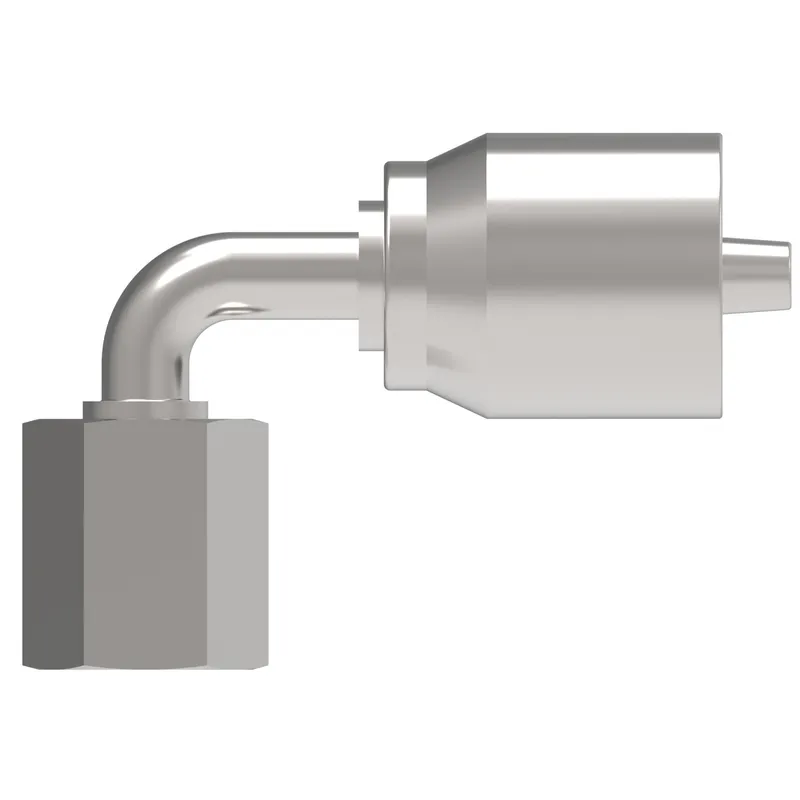

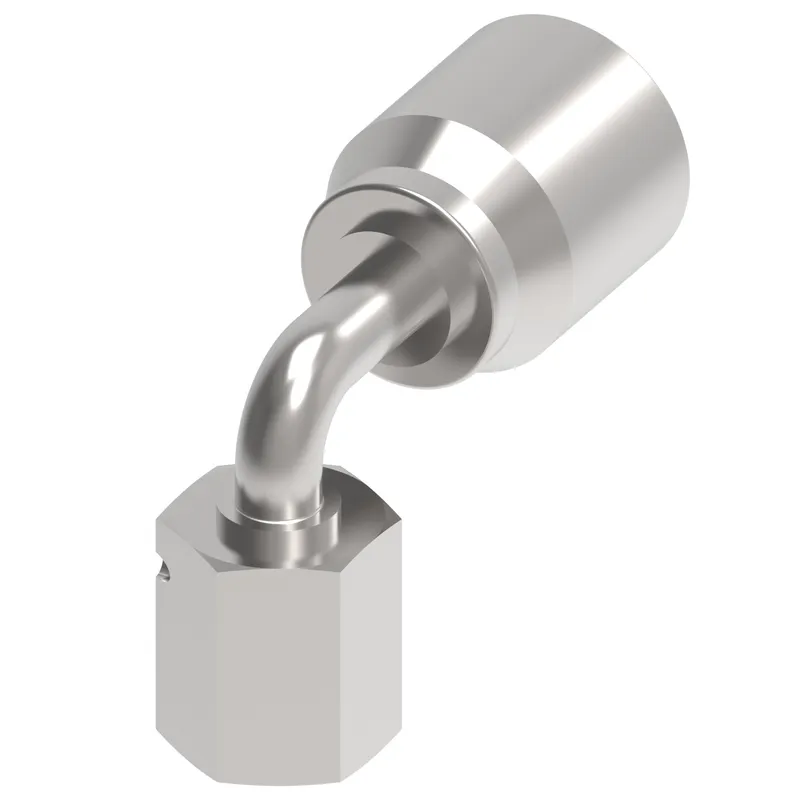

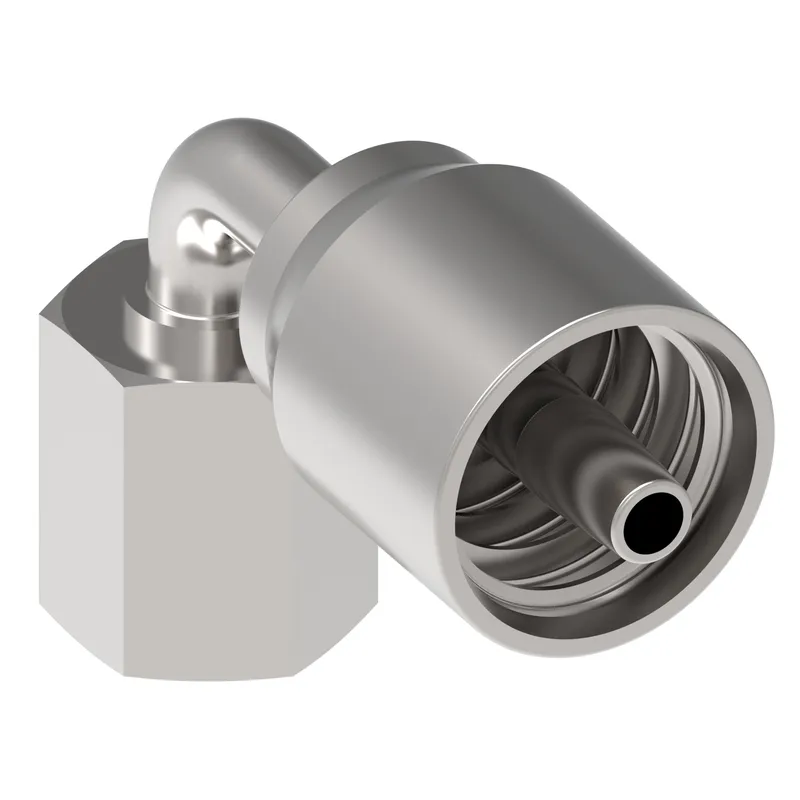

Danfoss HOSE NIPPLE ASSY,2P/12,DKOL/30,AN,90D, manufacturer part number 20491Y-30-12SRT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.759
A dimension MM	95.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
Drop dimension IN	2.204
Drop dimension MM	56.00
End Type 1	24 deg. DKO swivel light duty
Hex size 1 IN	1.417
Hex size 1 MM	35.992
Hex size 2 IN	1.420
Hex size 2 MM	36.068
Hose cut off factor IN	2.244
Hose cut off factor MM	57.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	4.790
Product height mm	121.666
Product length in	4.470
Product length mm	113.538
Product material	304 Stainless steel
Product width in	1.555
Product width mm	39.497
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	0.860
Tube OD 1 MM	22.000

20491Y-30-12SRT: frequently asked questions

When can 20491Y-30-12SRT be shipped?

20491Y-30-12SRT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20491Y-30-12SRT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20491Y-30-12SRT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20491Y-30-12SRT, subject to availability and destination.
