Danfoss 20491Y-26-10TZ

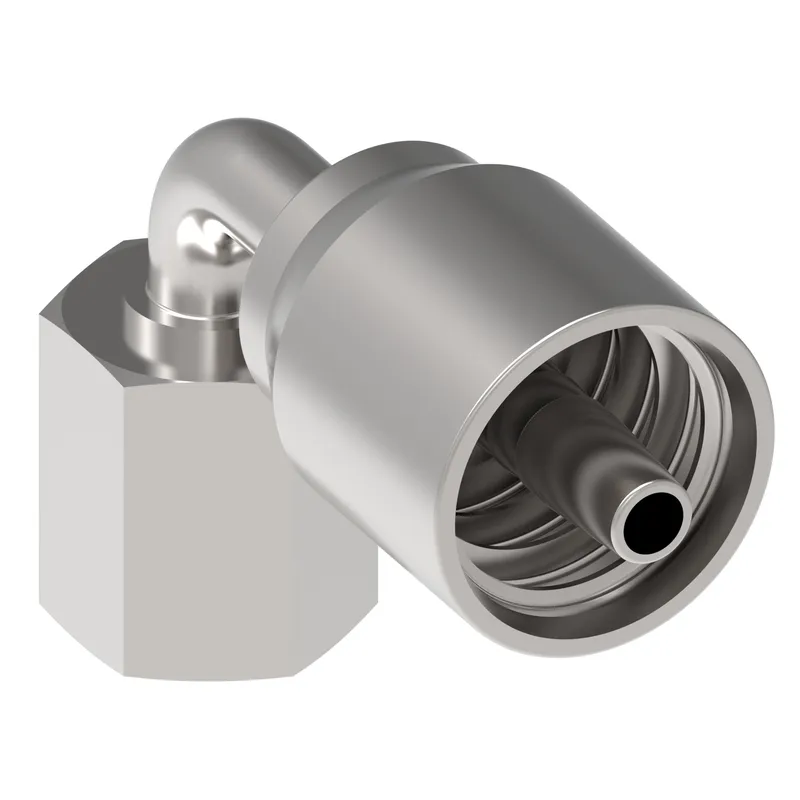

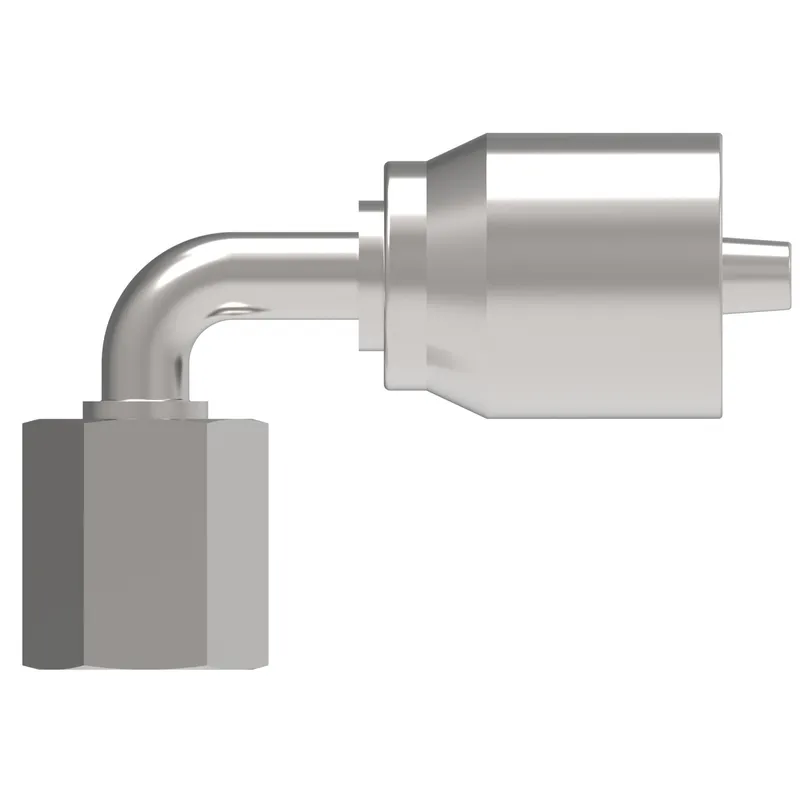

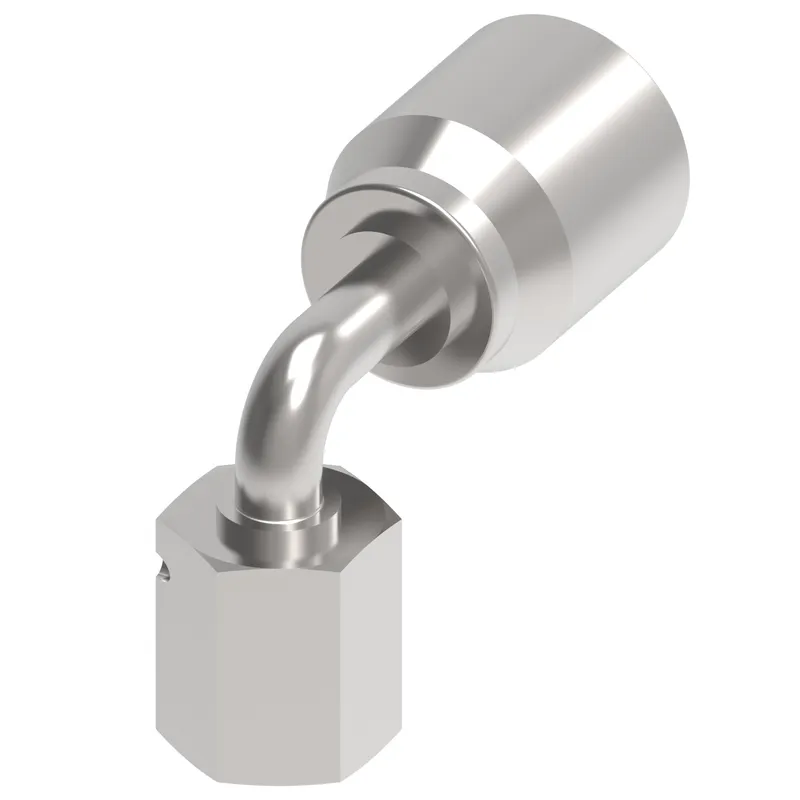

HOSE NIPPLE, 2P/10, DKOL/26, CS, 90D

MPN: 20491Y-26-10TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-26-10TZ?

Danfoss HOSE NIPPLE, 2P/10, DKOL/26, CS, 90D, manufacturer part number 20491Y-26-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.354
A dimension MM	85.200
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	2.027
Drop dimension MM	51.50
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.259
Hex size 1 MM	31.979
Hex size 2 IN	1.250
Hex size 2 MM	31.750
Hose cut off factor IN	2.015
Hose cut off factor MM	51.200
Hose size	-10
Inside diameter IN	0.472
Inside diameter MM	12.000
Product height in	3.440
Product height mm	87.376
Product length in	3.984
Product length mm	101.194
Product material	Carbon steel
Product width in	1.401
Product width mm	35.585
Series	Winner 2-Piece
Thread sealant	No
