Danfoss 20491Y-22-10WZ

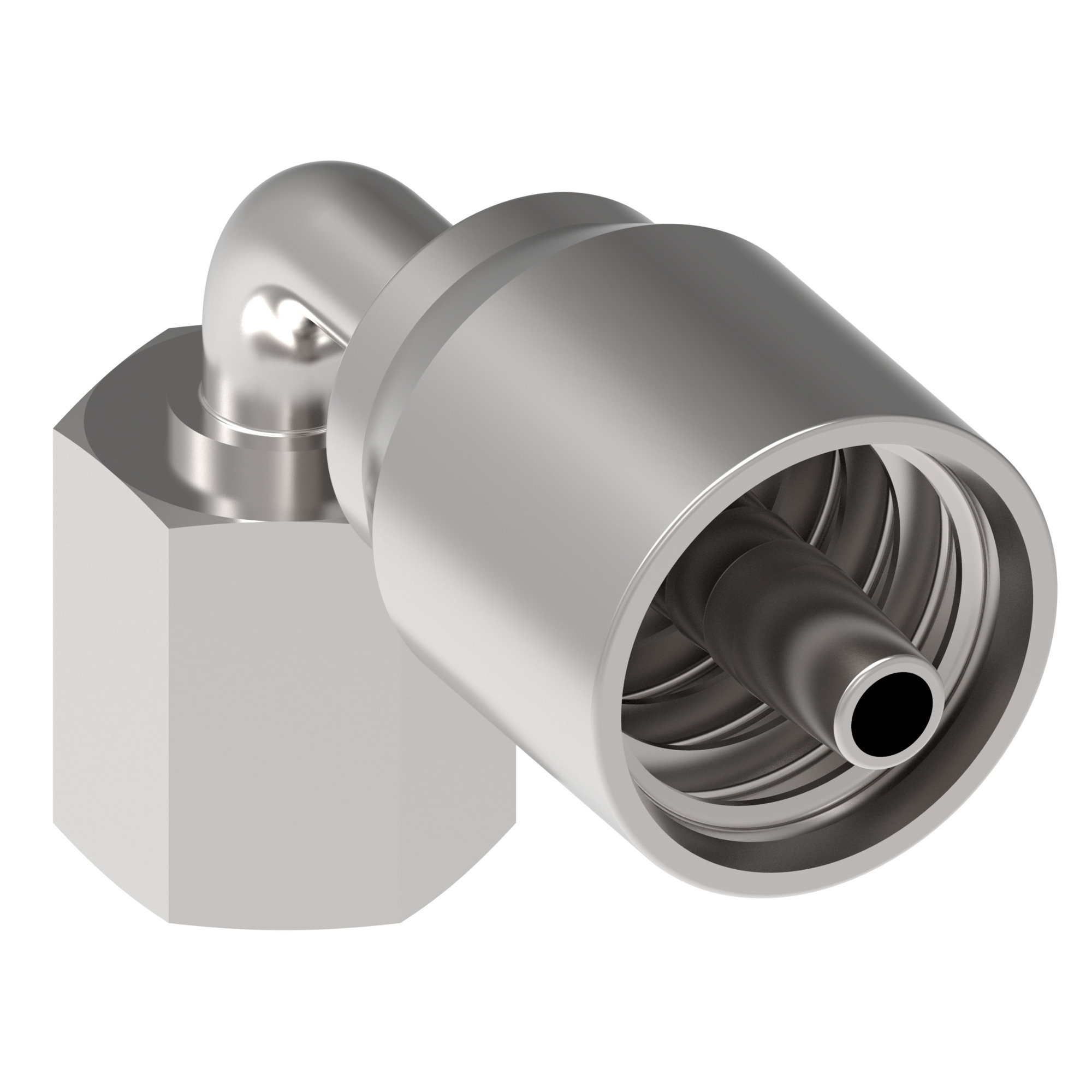

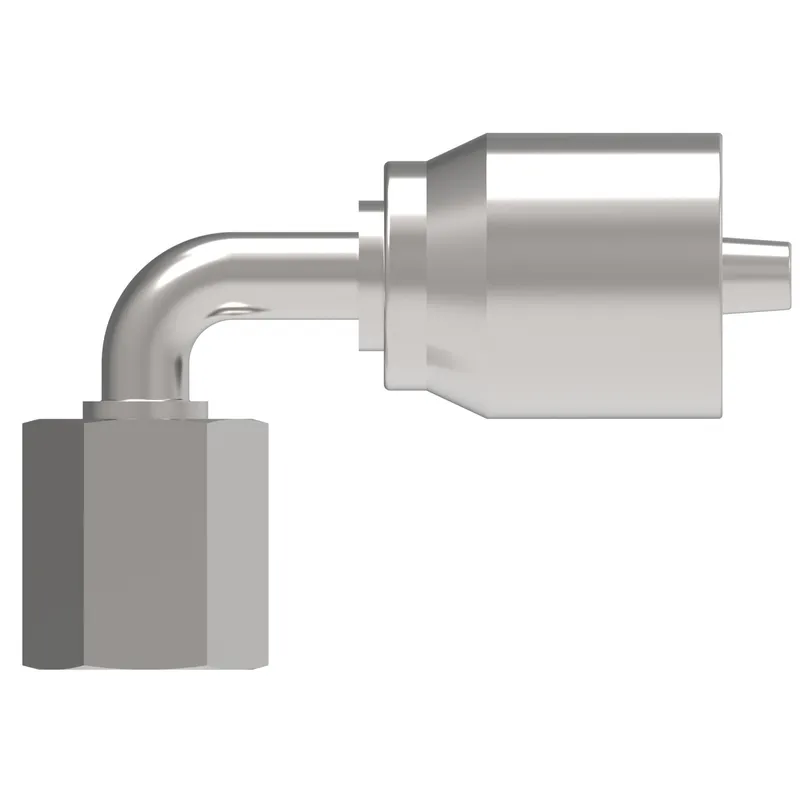

HOSE NIPPLE ASSY,1P/10,DKOL/22,CS,90D

MPN: 20491Y-22-10WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-22-10WZ?

Danfoss HOSE NIPPLE ASSY,1P/10,DKOL/22,CS,90D, manufacturer part number 20491Y-22-10WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	79.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Construction Style	Crimp
Drop dimension IN	1.750
Drop dimension MM	44.50
End connection torque	46-50 lb-ft(62-68 Nm)
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	1.770
Hose cut off factor MM	45.000
Hose size	-10
Inside diameter IN	0.470
Inside diameter MM	11.900
Product height in	3.102
Product height mm	78.790
Product length in	3.641
Product length mm	92.481
Product material	Carbon steel
Product width in	1.401
Product width mm	35.585
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
