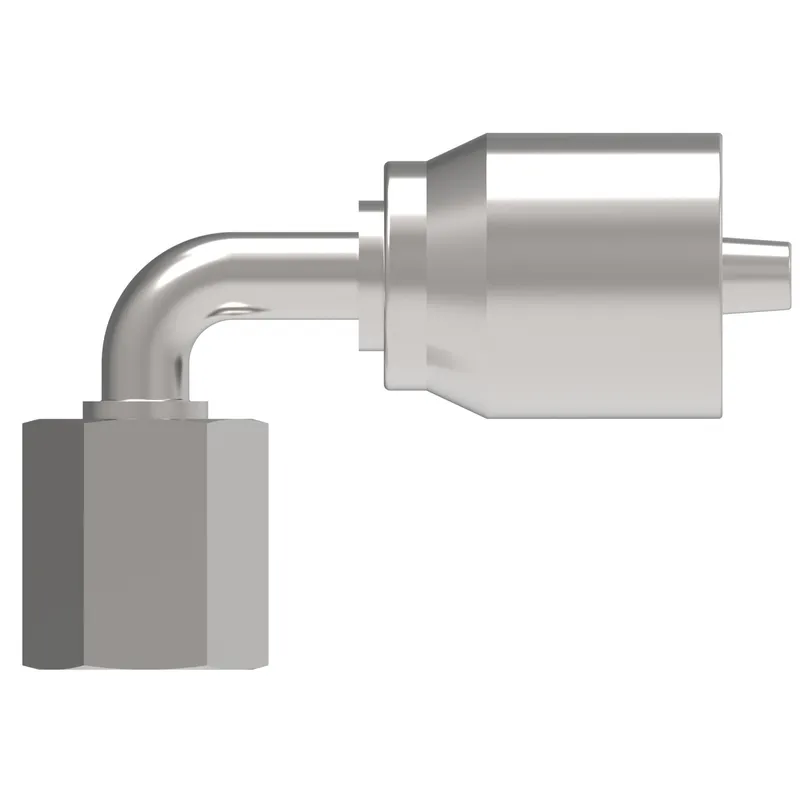

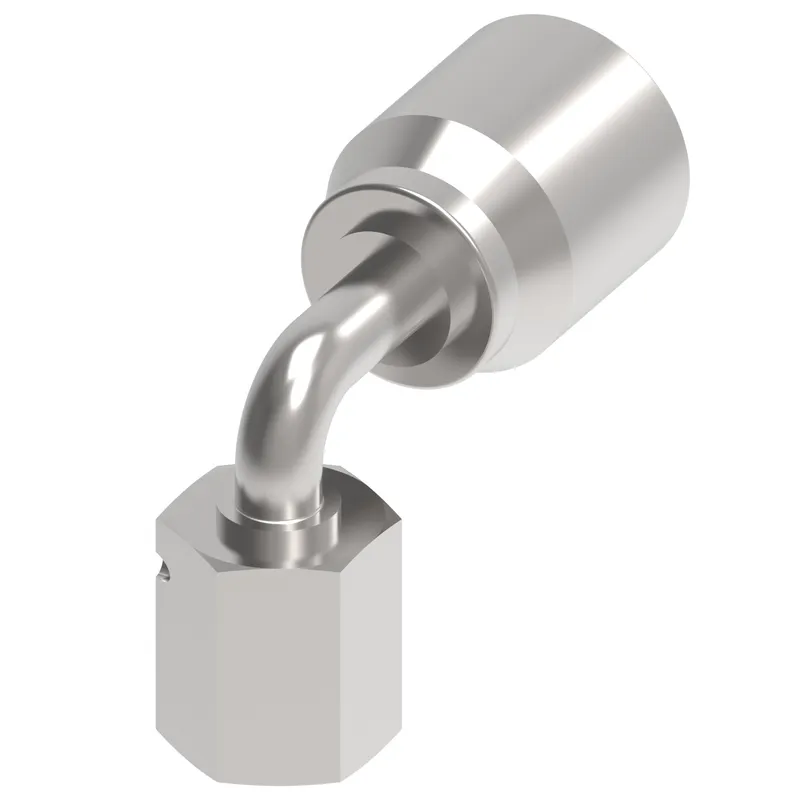

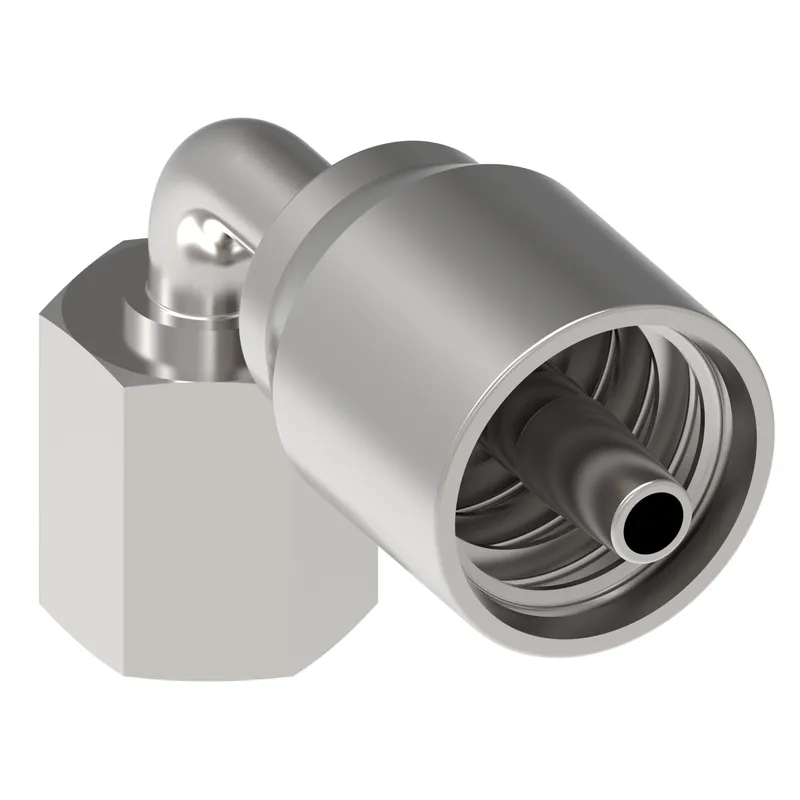

Danfoss 20491Y-22-08SVT

HOSE NIPPLE ASSY,1P/08,DKOL/22,AP,90D

MPN: 20491Y-22-08SVT
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491Y-22-08SVT?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOL/22,AP,90D, manufacturer part number 20491Y-22-08SVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.893
A dimension MM	73.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	1.633
Drop dimension MM	41.50
End connection torque	46-50 lb-ft(62-68 Nm)
End Type 1	24 deg. DKO swivel light duty
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 IN	1.060
Hex size 2 MM	26.924
Hose cut off factor IN	1.653
Hose cut off factor MM	42.000
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	2.338
Product height mm	59.385
Product length in	3.523
Product length mm	89.484
Product material	316L Stainless steel
Product width in	1.062
Product width mm	26.974
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
