Danfoss 20491-22-08H80TZ

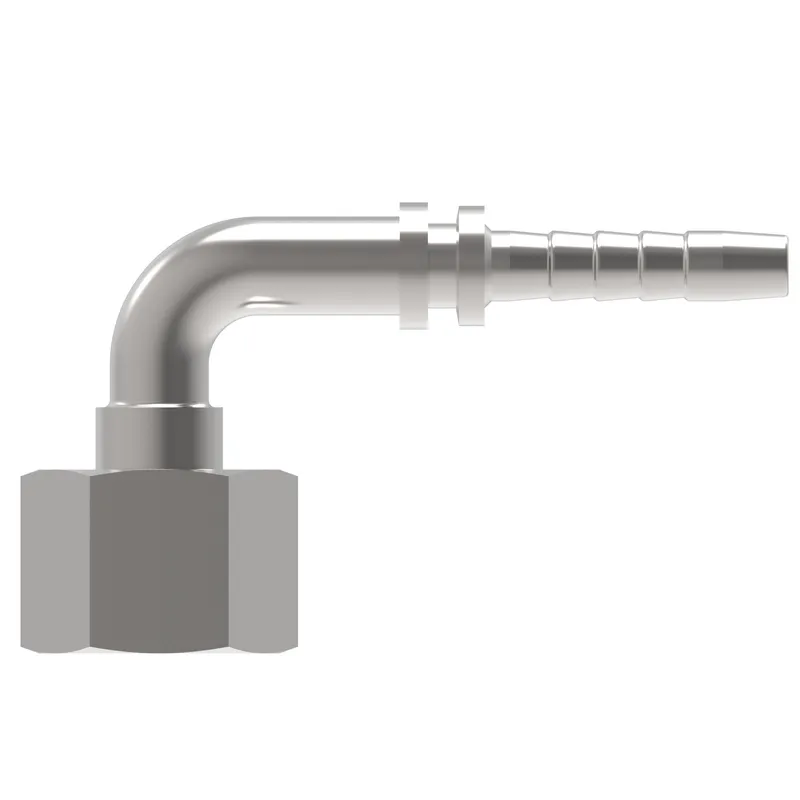

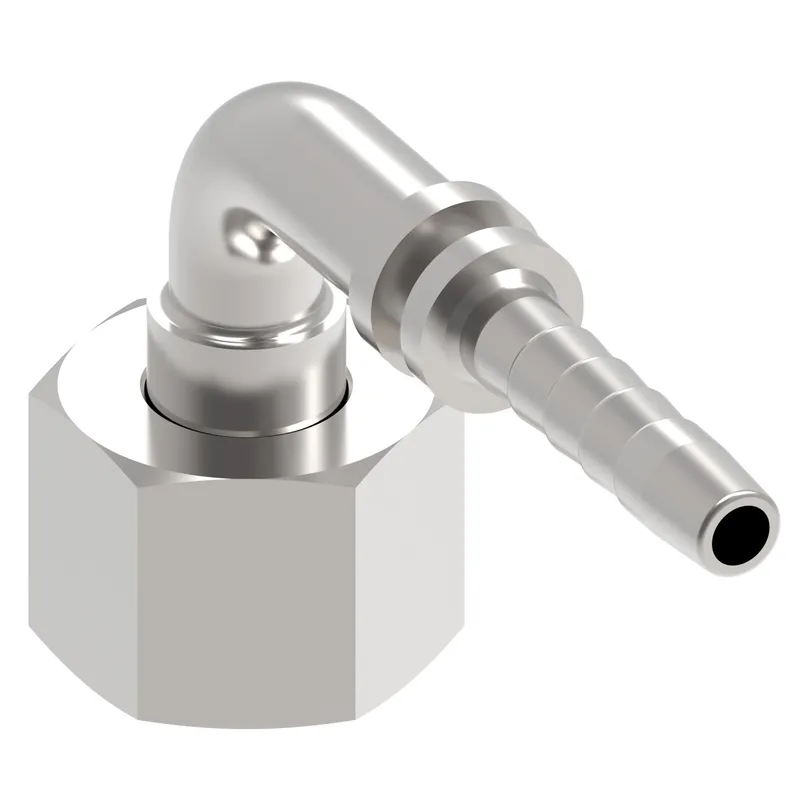

HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,90D

MPN: 20491-22-08H80TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-22-08H80TZ?

Danfoss HOSE NIPPLE ASSY,2P/08,DKOL/22,CS,90D, manufacturer part number 20491-22-08H80TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.893
A dimension MM	73.500
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Construction Style	Crimp
Drop dimension IN	3.149
Drop dimension MM	80.00
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-12
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	26.924
Hose cut off factor IN	1.653
Hose cut off factor MM	42.000
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	3.490
Product height mm	88.646
Product length in	3.420
Product length mm	86.868
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
