Danfoss 20491-22-05TZ

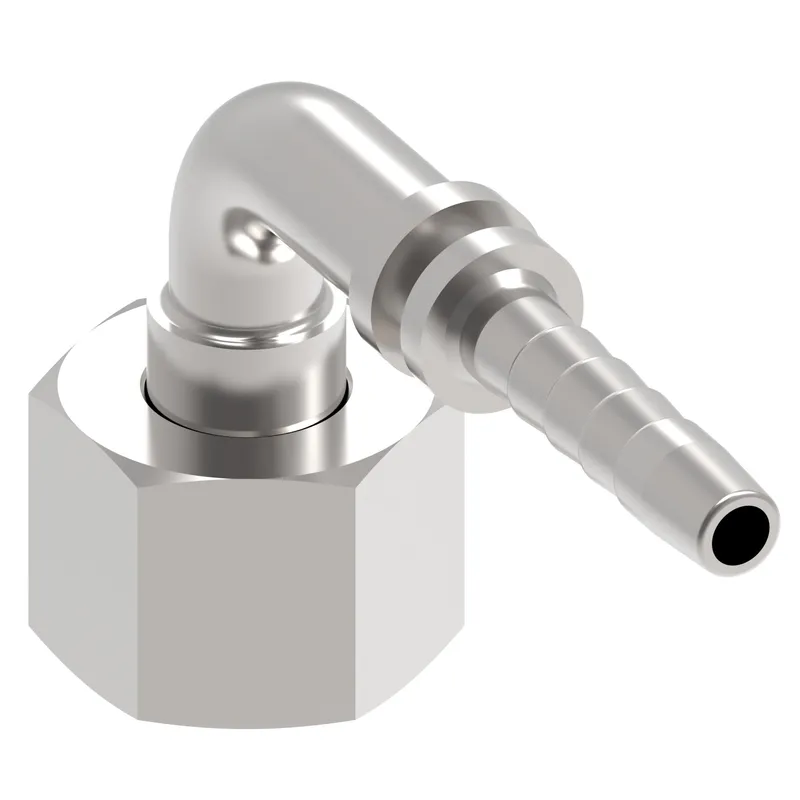

HOSE NIPPLE ASSY,2P/05,DKOL/22,CS,90D

MPN: 20491-22-05TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20491-22-05TZ?

Danfoss HOSE NIPPLE ASSY,2P/05,DKOL/22,CS,90D, manufacturer part number 20491-22-05TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.401
A dimension MM	61.000
Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.358
Drop dimension MM	34.50
End connection torque	55-70 lb-ft(75-95 Nm)
End size 1	-12
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hex size 1 IN	1.060
Hex size 1 MM	26.924
Hex size 2 IN	1.060
Hex size 2 MM	26.924
Hose cut off factor IN	1.299
Hose cut off factor MM	33.000
Hose size	-5
Inside diameter IN	0.216
Inside diameter MM	5.500
Product height in	2.260
Product height mm	57.404
Product length in	2.933
Product length mm	74.498
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M22x1.5
Tube OD 1 IN	0.590
Tube OD 1 MM	15.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20491-22-05TZ: frequently asked questions

When can 20491-22-05TZ be shipped?

20491-22-05TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20491-22-05TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20491-22-05TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20491-22-05TZ, subject to availability and destination.
