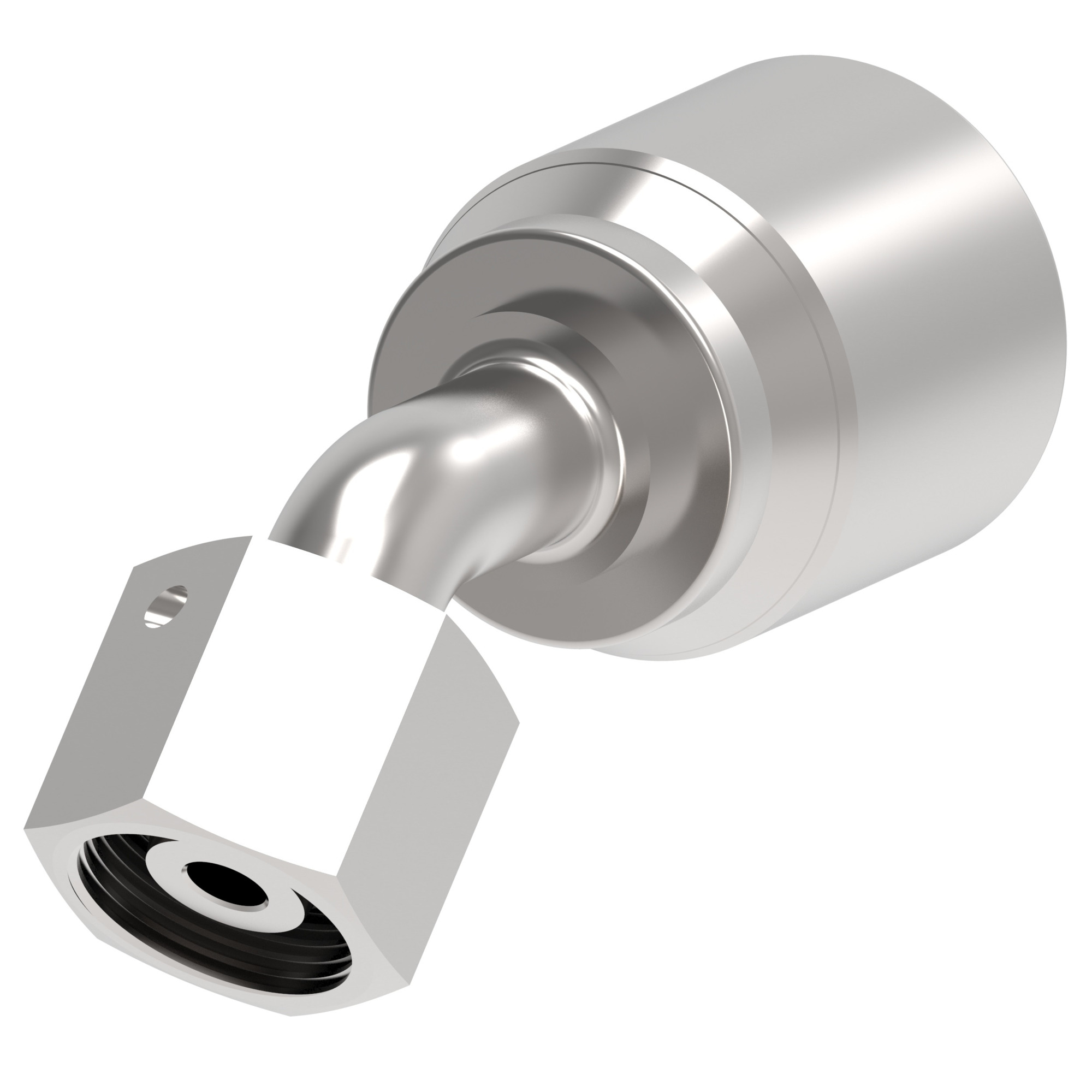

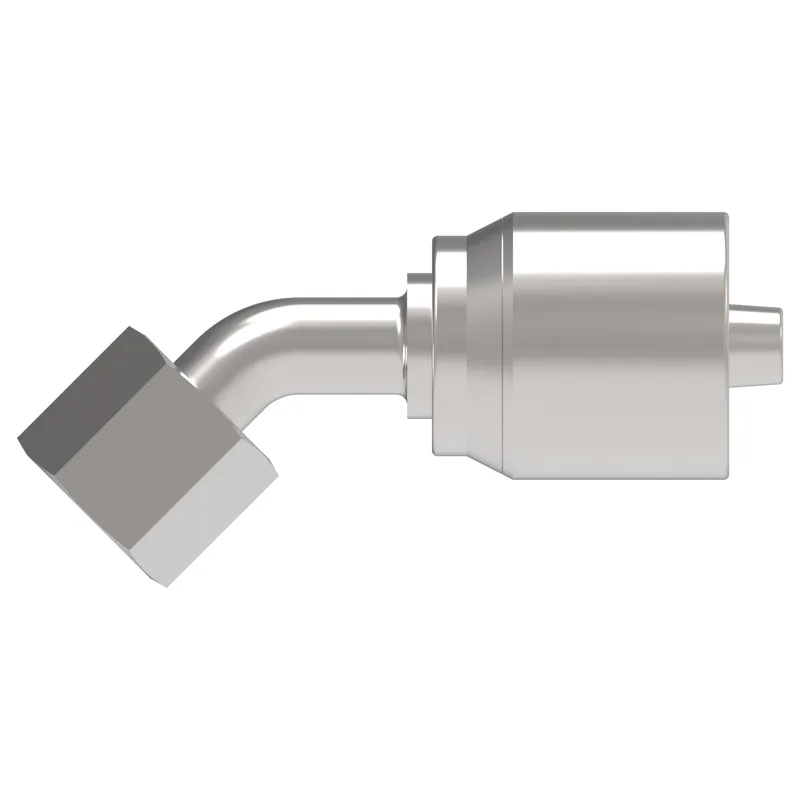

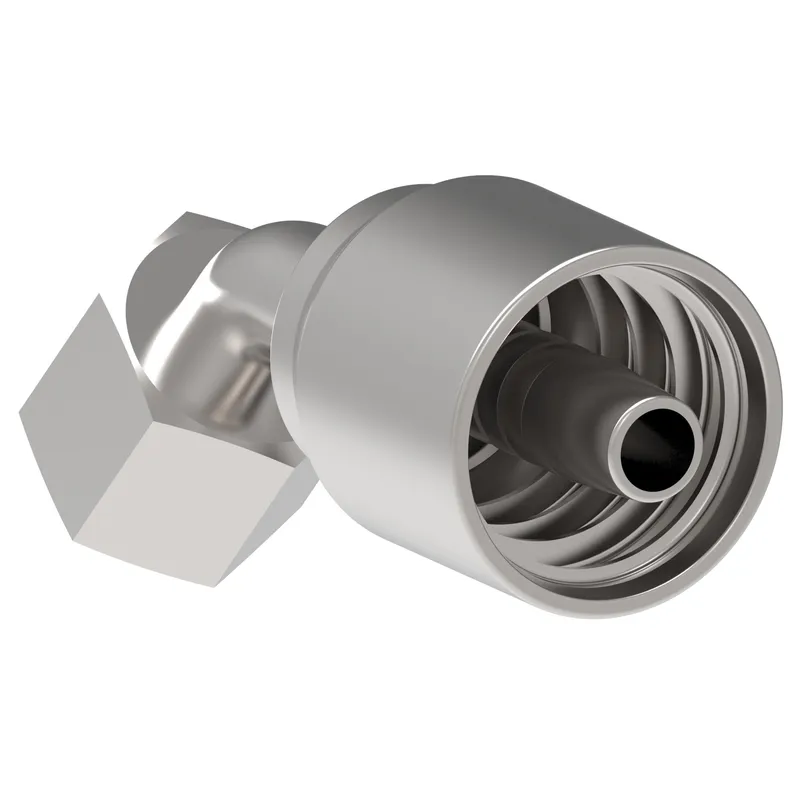

Danfoss 20441Y-22-05TZ

HOSE NIPPLE ASSY,2P/05,DKOL/22,CS,45D

MPN
20441Y-22-05TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441Y-22-05TZ?

Danfoss HOSE NIPPLE ASSY,2P/05,DKOL/22,CS,45D, manufacturer part number 20441Y-22-05TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.712
A dimension MM68.900
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.310
Compatible hose ID MM7.900
Construction StyleCrimp
Drop dimension IN0.692
Drop dimension MM17.60
End connection torque55-70 lb-ft(75-95 Nm)
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hex size 2 IN1.063
Hex size 2 MM27.000
Hose cut off factor IN1.610
Hose cut off factor MM40.900
Hose size-5
Inside diameter IN0.216
Inside diameter MM5.500
Product height in1.912
Product height mm48.564
Product length in3.440
Product length mm87.376
Product materialCarbon steel
Product width in1.063
Product width mm27
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M22x1.5
Tube OD 1 IN0.590
Tube OD 1 MM15.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
