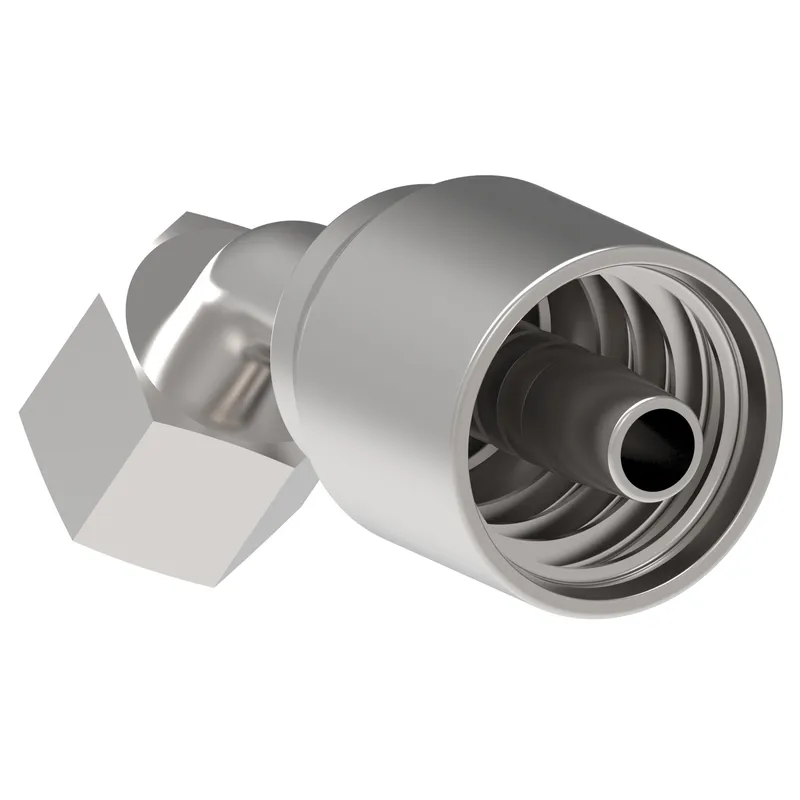

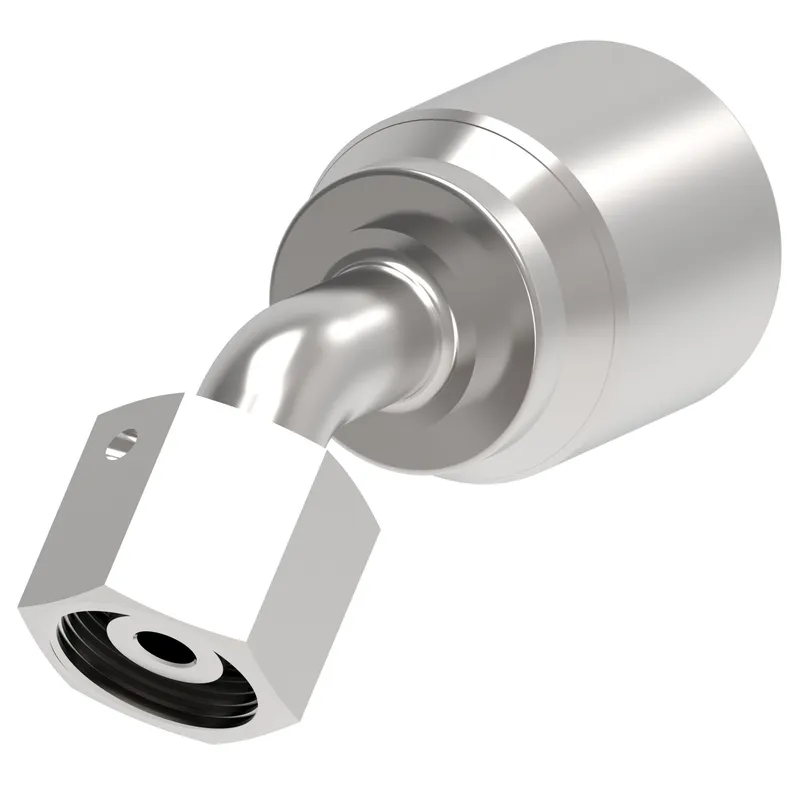

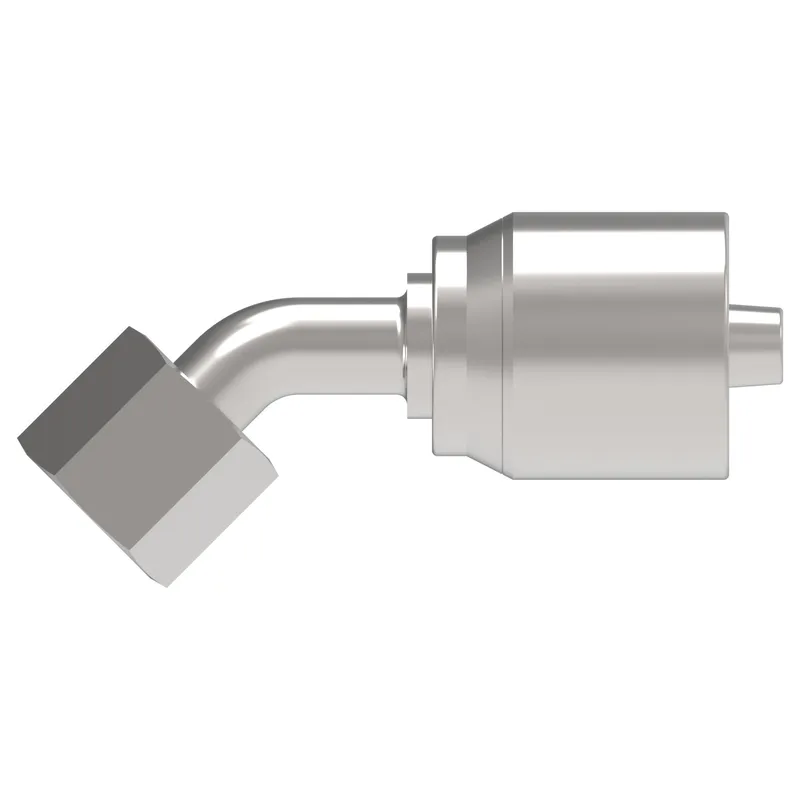

Danfoss 20441Y-18-06TZ

HOSE NIPPLE ASSY,2P/06,DKOL/18,CS,45D

MPN
20441Y-18-06TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441Y-18-06TZ?

Danfoss HOSE NIPPLE ASSY,2P/06,DKOL/18,CS,45D, manufacturer part number 20441Y-18-06TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.950
A dimension MM75.000
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.380
Compatible hose ID MM9.500
Construction StyleCrimp
Drop dimension IN0.730
Drop dimension MM18.50
End connection torque37-44 lb-ft(50-60 Nm)
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN0.866
Hex size 1 MM21.996
Hex size 2 IN0.866
Hex size 2 MM21.996
Hose cut off factor IN1.770
Hose cut off factor MM45.000
Hose size-6
Inside diameter IN0.280
Inside diameter MM7.000
Product height in1.480
Product height mm37.592
Product length in3.380
Product length mm85.852
Product materialCarbon steel
Product width in1.070
Product width mm27.178
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M18x1.5
Tube OD 1 IN0.472
Tube OD 1 MM12.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20441Y-18-06TZ: frequently asked questions

When can 20441Y-18-06TZ be shipped?

20441Y-18-06TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20441Y-18-06TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20441Y-18-06TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441Y-18-06TZ, subject to availability and destination.
