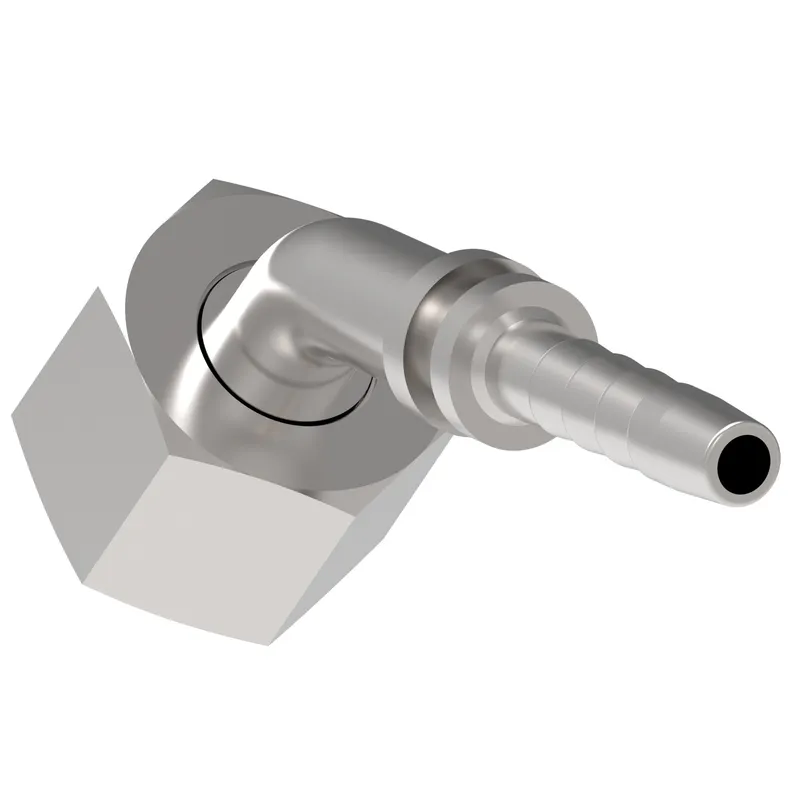

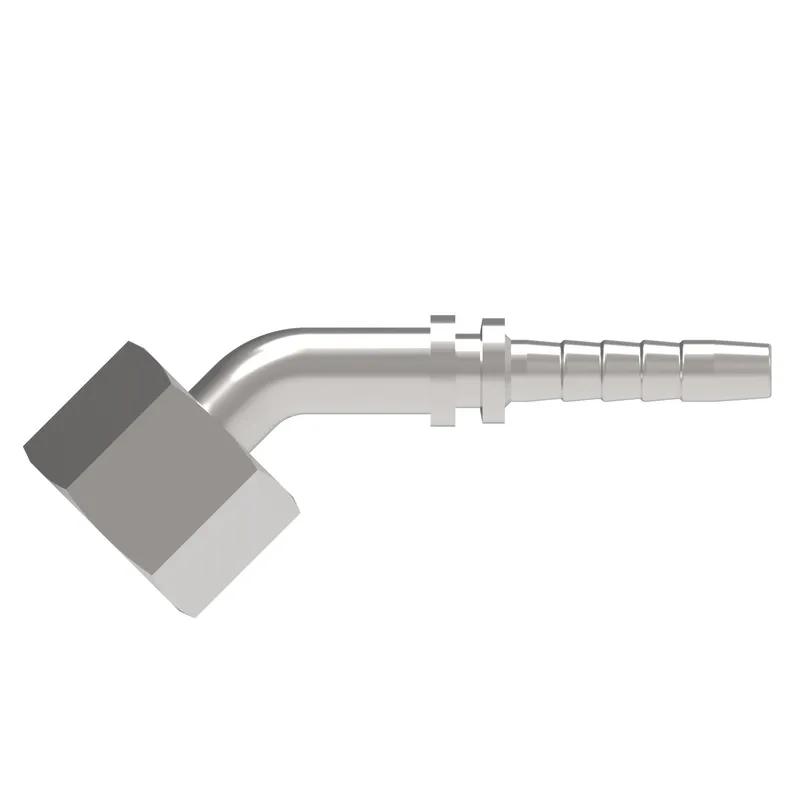

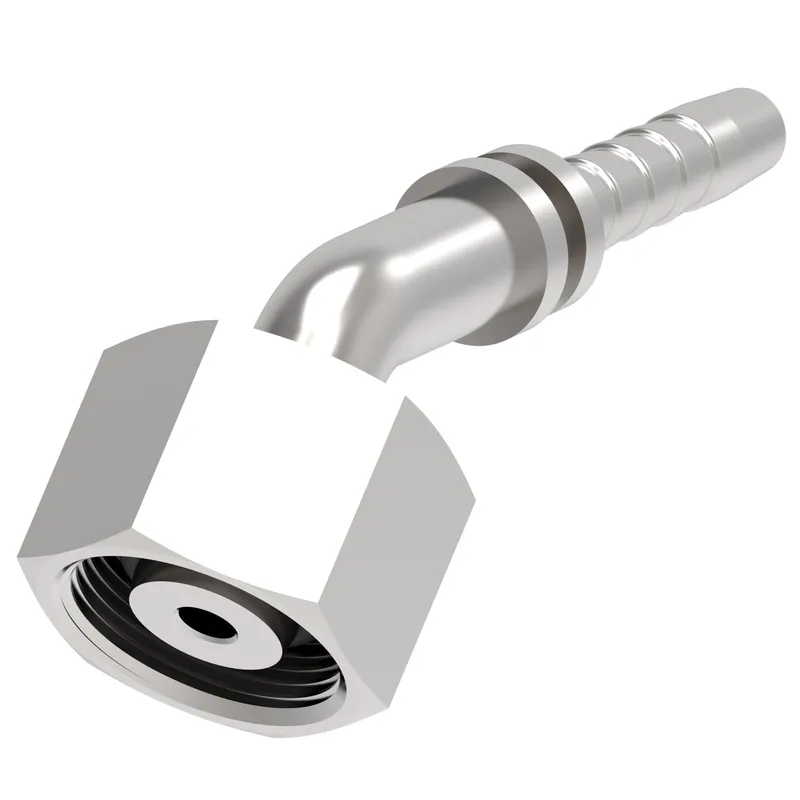

Danfoss 20441-30-10TZ

HOSE NIPPLE ASSY,2P/10,DKOL/30,CS,45D

MPN
20441-30-10TZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20441-30-10TZ?

Danfoss HOSE NIPPLE ASSY,2P/10,DKOL/30,CS,45D, manufacturer part number 20441-30-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.560
A dimension MM90.400
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
Drop dimension IN0.950
Drop dimension MM24.10
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hose cut off factor IN2.220
Hose cut off factor MM56.400
Hose size-10
Inside diameter IN0.670
Inside diameter MM17.000
Product height in2.170
Product height mm55.118
Product length in4.280
Product length mm108.712
Product materialCarbon steel
Product width in1.420
Product width mm36.068
Proposition 65Cancer and Reproductive Harm
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread size 1M30x2
Tube OD 1 IN0.866
Tube OD 1 MM22.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
