Danfoss 20441-22-10WZ

HOSE NIPPLE ASSY,2P/10,DKOL/22,CS,45D

MPN
20441-22-10WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

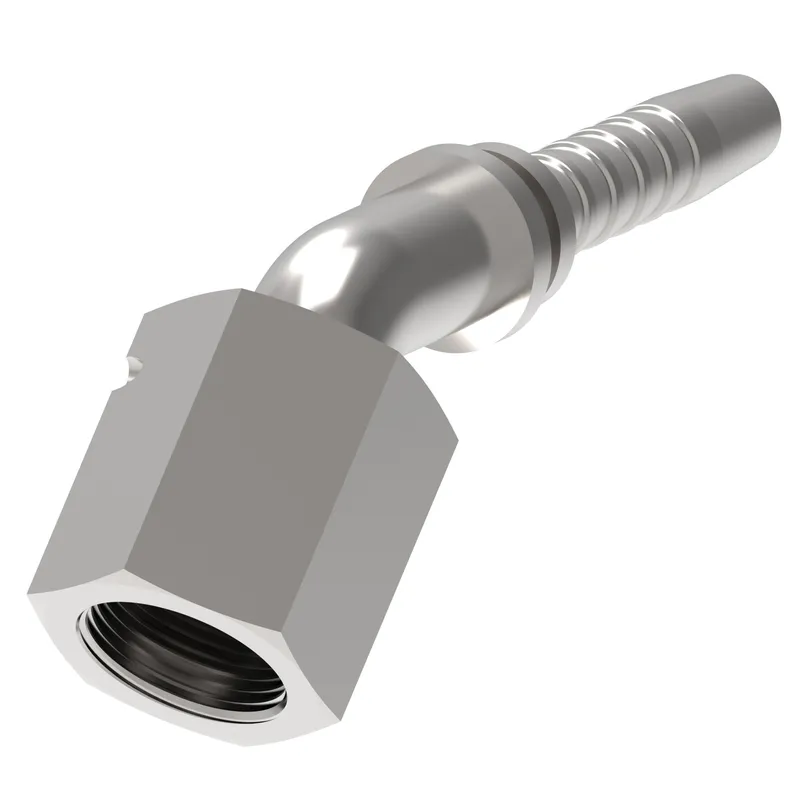

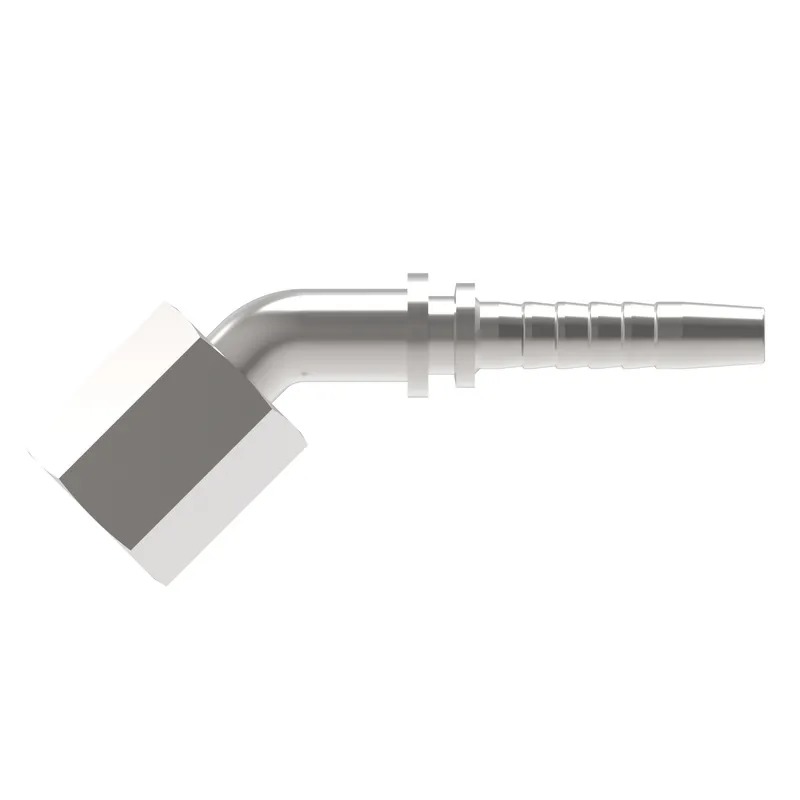

What is the Danfoss 20441-22-10WZ?

Danfoss HOSE NIPPLE ASSY,2P/10,DKOL/22,CS,45D, manufacturer part number 20441-22-10WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.270
A dimension MM83.000
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
Drop dimension IN0.870
Drop dimension MM22.20
End connection torque46-50 lb-ft(62-68 Nm)
End size 1-12
End Type 124 deg. DKO swivel light duty
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM26.924
Hex size 2 IN1.060
Hex size 2 MM26.924
Hose cut off factor IN1.930
Hose cut off factor MM49.000
Hose size-10
Inside diameter IN0.470
Inside diameter MM12.000
Product height in4.840
Product height mm122.936
Product length in6.700
Product length mm170.180
Product materialCarbon steel
Product width in1.060
Product width mm26.924
Proposition 65Cancer and Reproductive Harm
Seal materialNitrile (NBR)
SeriesWinner 2-Piece
Thread sealantNo
Thread size 1M22x1.5
Tube OD 1 IN0.590
Tube OD 1 MM15.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20441-22-10WZ: frequently asked questions

When can 20441-22-10WZ be shipped?

20441-22-10WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20441-22-10WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20441-22-10WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441-22-10WZ, subject to availability and destination.
