Danfoss 20411YT-22-08WZ

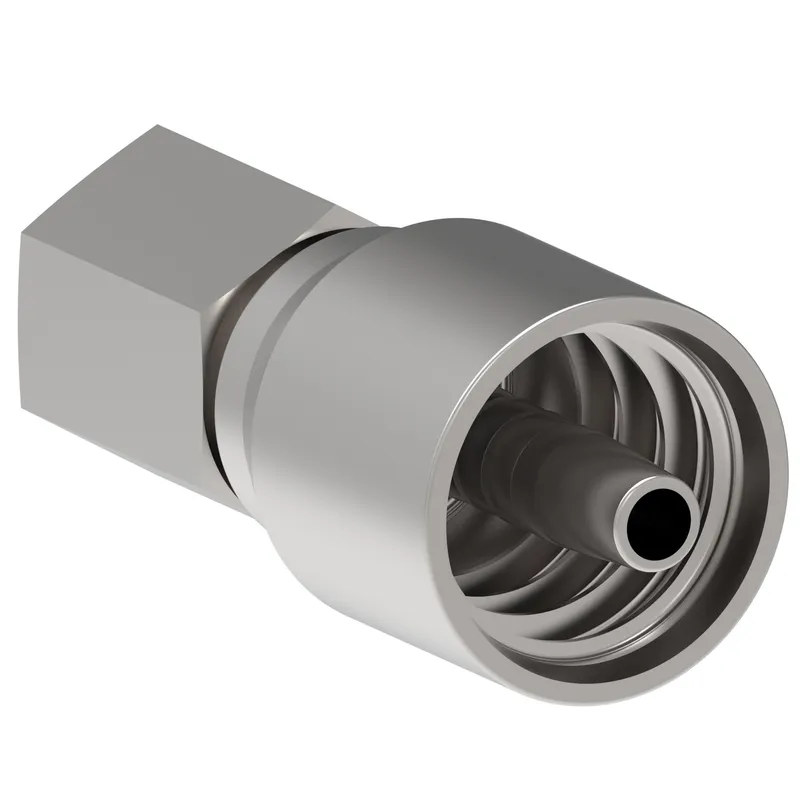

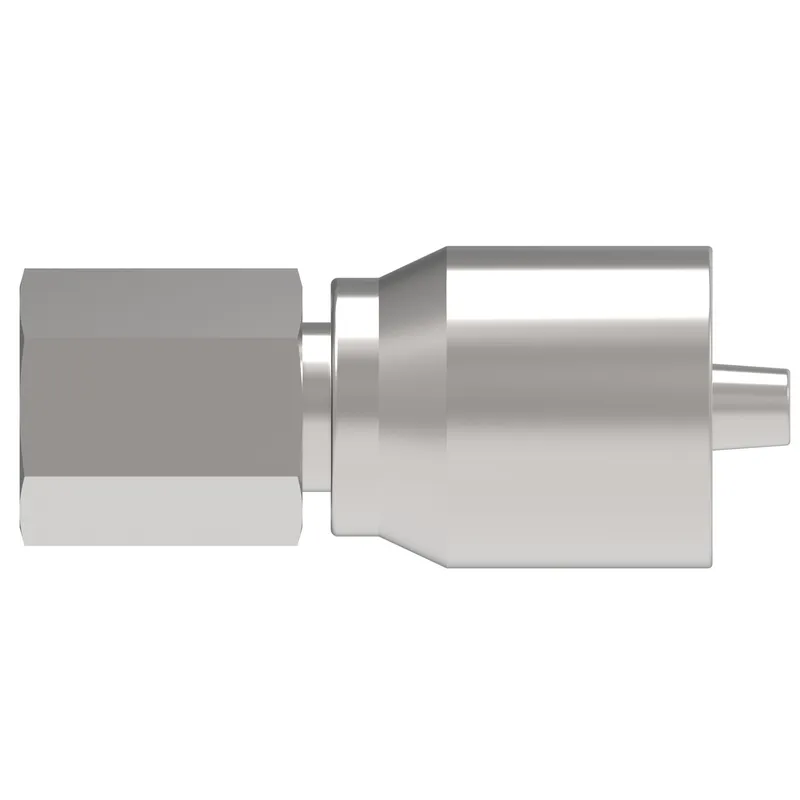

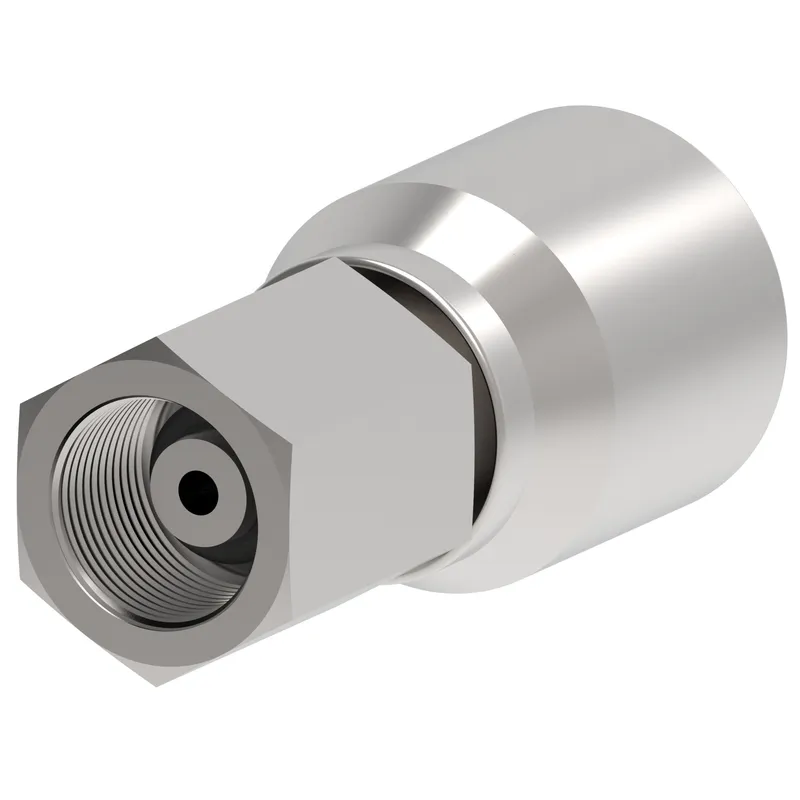

HOSE NIPPLE ASSY,1P/08,DKOL/22,CS,STR

MPN
20411YT-22-08WZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411YT-22-08WZ?

Danfoss HOSE NIPPLE ASSY,1P/08,DKOL/22,CS,STR, manufacturer part number 20411YT-22-08WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.200
A dimension MM56.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Construction StyleCrimp
End connection torque46-50 lb-ft(62-68 Nm)
End size 2-8
End Type 124 deg. DKO swivel light duty
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.060
Hex size 1 MM27.000
Hose cut off factor IN0.960
Hose cut off factor MM24.500
Hose size-8
Inside diameter IN0.390
Inside diameter MM10.000
Product height in1.220
Product height mm30.988
Product length in2.460
Product length mm62.484
Product materialCarbon steel
Product width in1.210
Product width mm30.734
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 1M22x1.5
Tube OD 1 IN0.590
Tube OD 1 MM15.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

20411YT-22-08WZ: frequently asked questions

When can 20411YT-22-08WZ be shipped?

20411YT-22-08WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20411YT-22-08WZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20411YT-22-08WZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20411YT-22-08WZ, subject to availability and destination.
