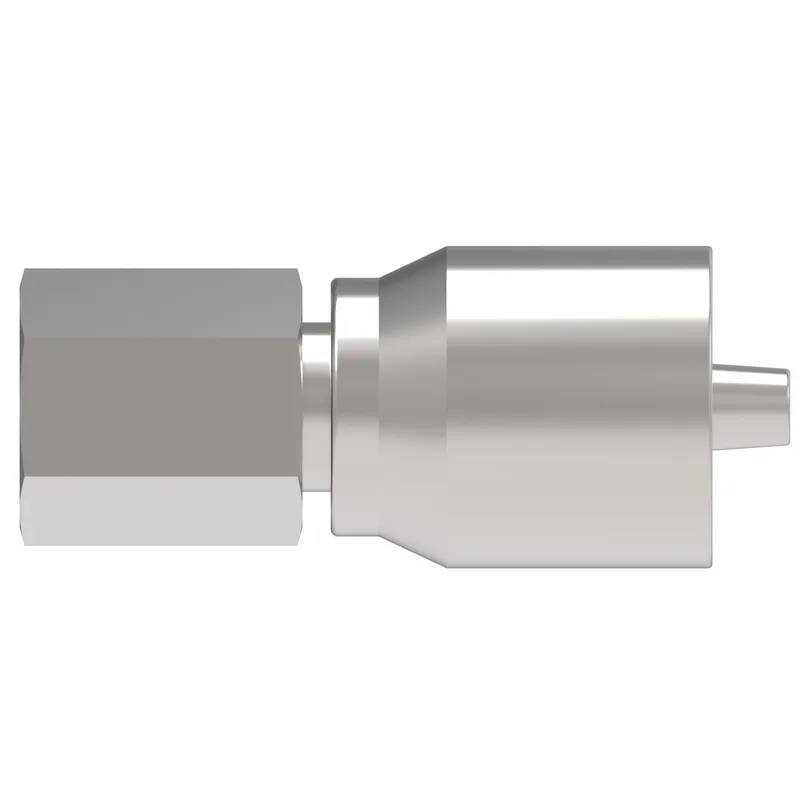

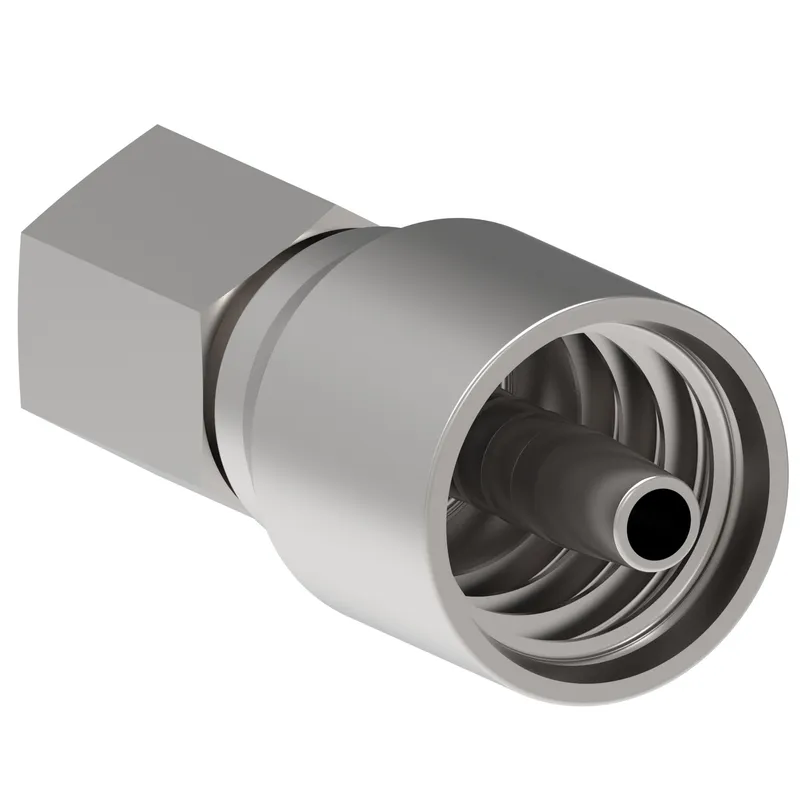

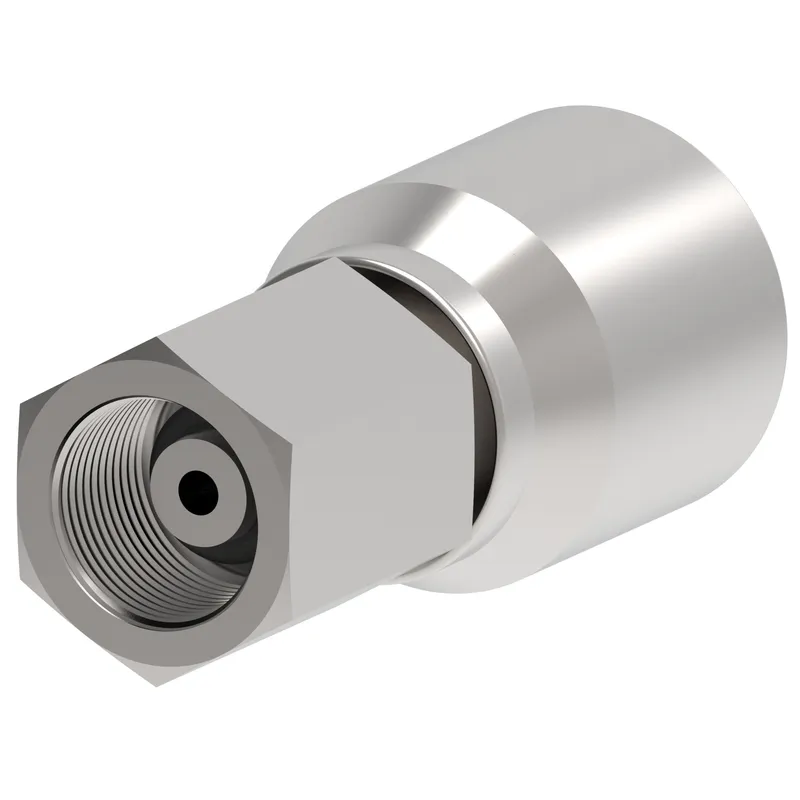

Danfoss 20411Y-45-16SVT

HOSE NIPPLE ASSY,1P/16,DKOL/36,AP,STR

MPN
20411Y-45-16SVT
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411Y-45-16SVT?

Danfoss HOSE NIPPLE ASSY,1P/16,DKOL/36,AP,STR, manufacturer part number 20411Y-45-16SVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.300
A dimension MM84.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
End Type 124 deg. DKO swivel light duty
End Type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.614
Hex size 1 MM41.000
Hex size 2 IN1.614
Hex size 2 MM41.000
Hose cut off factor IN1.450
Hose cut off factor MM37.000
Hose size-16
Inside diameter IN0.820
Inside diameter MM21.000
Product height in2.260
Product height mm57.404
Product length in3.484
Product length mm88.493
Product materialCarbon steel
Product width in1.960
Product width mm49.784
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 1M36x2
Tube OD 1 IN1.100
Tube OD 1 MM28.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
