Danfoss 20411Y-36-16WZN

HOSE NIPPLE ASSY,1P/16,DKOL/36,CS,STR

MPN
20411Y-36-16WZN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

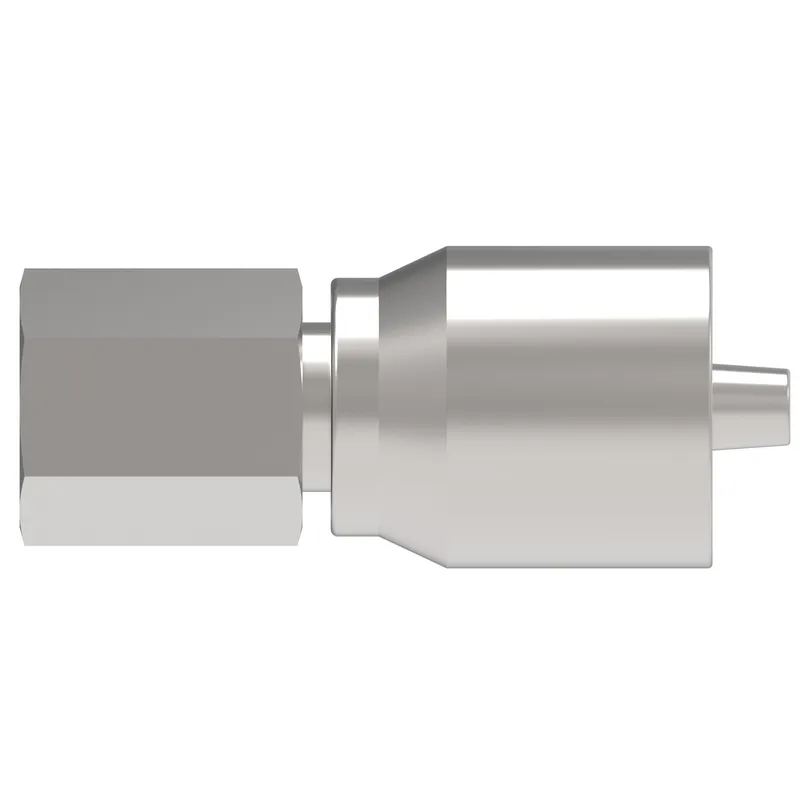

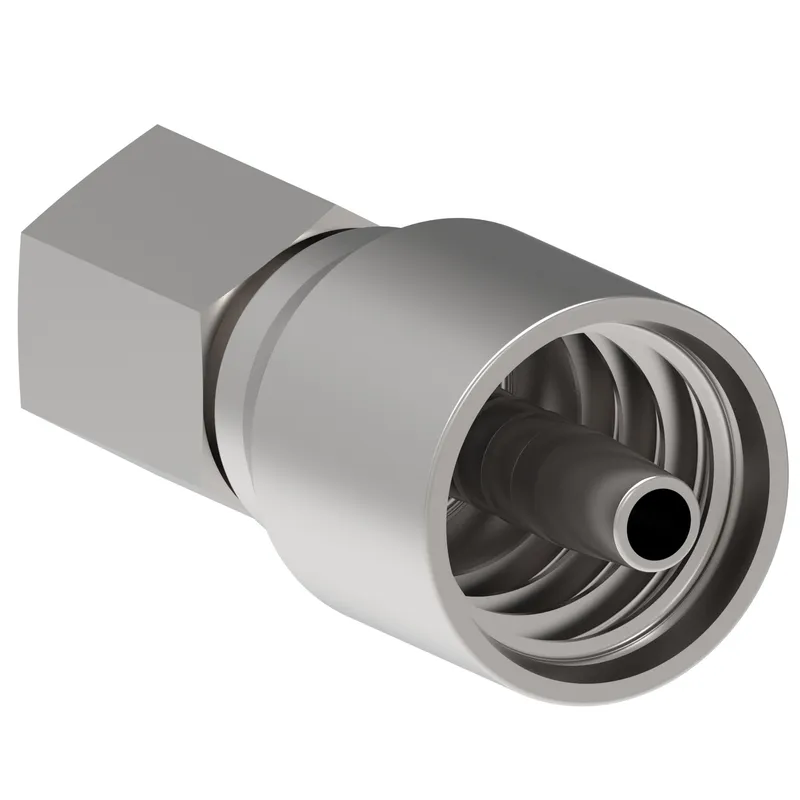

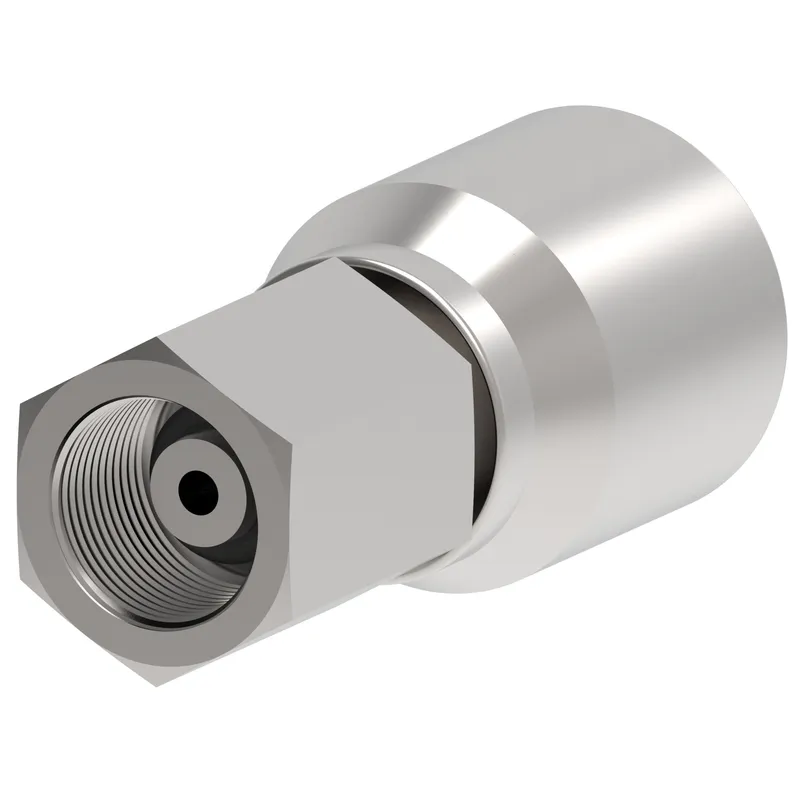

What is the Danfoss 20411Y-36-16WZN?

Danfoss HOSE NIPPLE ASSY,1P/16,DKOL/36,CS,STR, manufacturer part number 20411Y-36-16WZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.030
A dimension MM77.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.000
Compatible hose ID MM25.400
Construction StyleCrimp
End Type 124 deg. DKO swivel light duty
Finish platingZinc nickel
Hex size 1 IN1.610
Hex size 1 MM40.894
Hose cut off factor IN1.180
Hose cut off factor MM30.000
Hose size-16
Inside diameter IN0.820
Inside diameter MM21.000
Product height in1.850
Product height mm46.990
Product length in3.200
Product length mm81.280
Product materialCarbon steel
Product width in1.610
Product width mm40.894
Seal materialNitrile (NBR)
Thread sealantNo
Thread size 1M36x2
Tube OD 1 IN1.100
Tube OD 1 MM28.000
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
