Danfoss 20411-30-16WZ

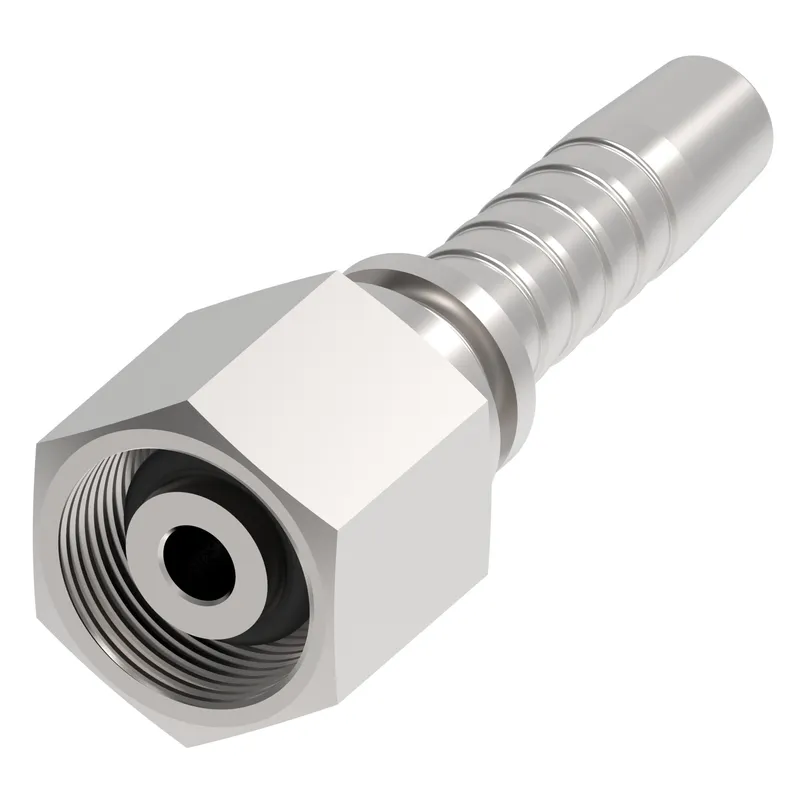

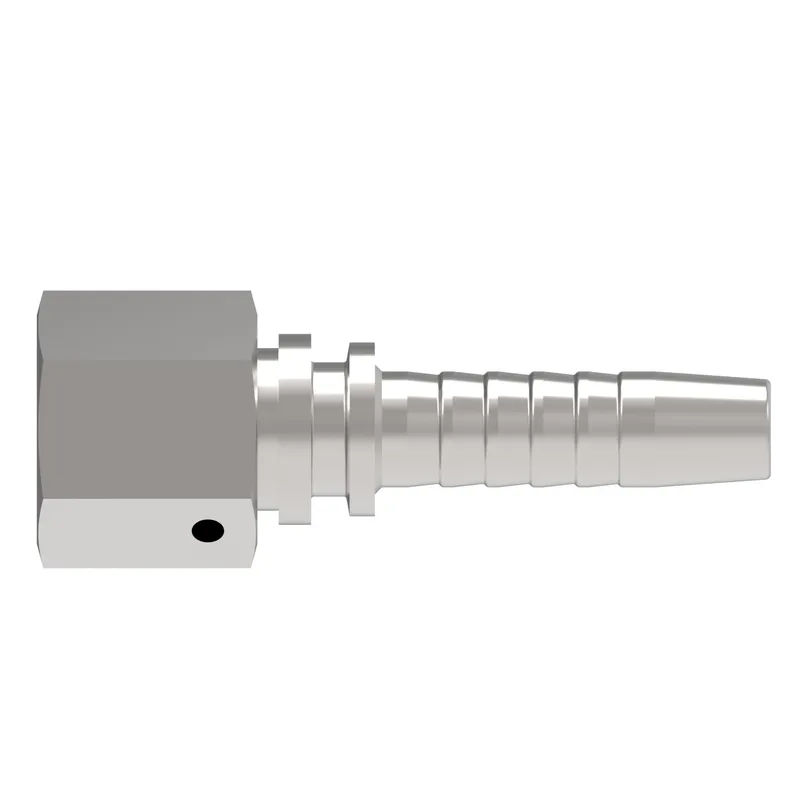

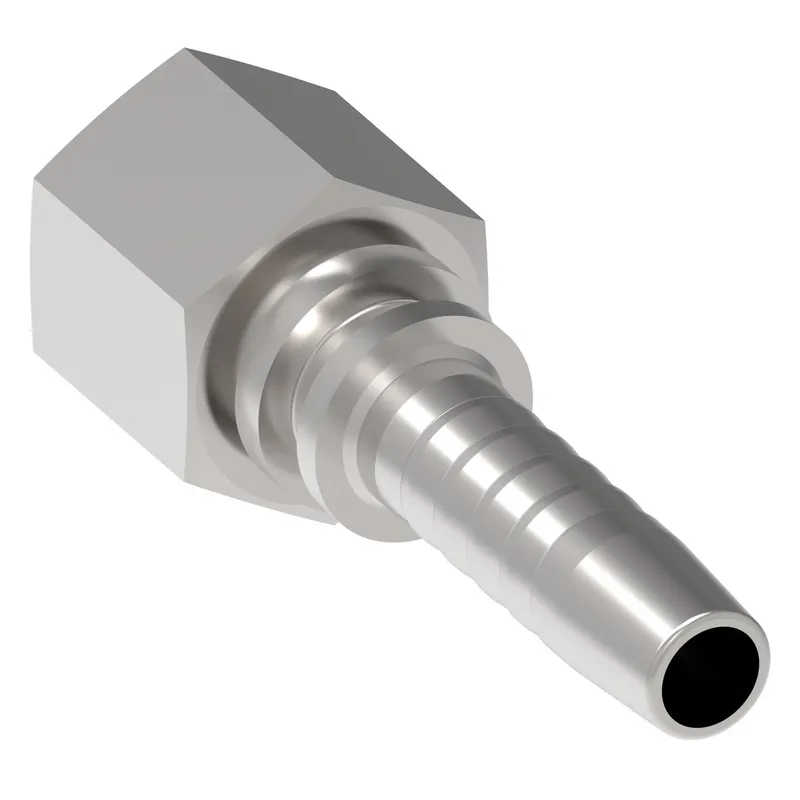

HOSE NIPPLE ASSY,2P/16,DKOL/30,CS,STR

MPN: 20411-30-16WZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-30-16WZ?

Danfoss HOSE NIPPLE ASSY,2P/16,DKOL/30,CS,STR, manufacturer part number 20411-30-16WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.050
A dimension MM	77.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc plating
Hose cut off factor IN	1.200
Hose cut off factor MM	30.500
Hose size	-16
Inside diameter IN	0.820
Inside diameter MM	21.000
Product height in	1.640
Product height mm	41.656
Product length in	3.200
Product length mm	81.280
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	M30x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
