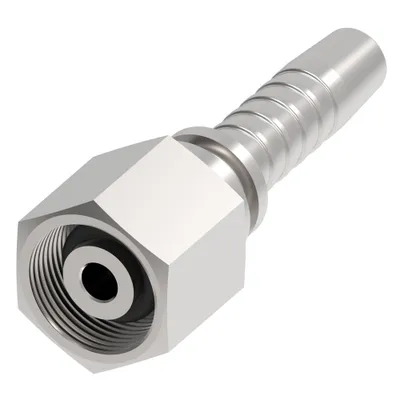

Danfoss 20411-30-12TZN

HOSE NIPPLE ASSY,2P/12,DKOL/30,CS,STR

MPN: 20411-30-12TZN
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20411-30-12TZN?

Danfoss HOSE NIPPLE ASSY,2P/12,DKOL/30,CS,STR, manufacturer part number 20411-30-12TZN. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.850
A dimension MM	72.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End Type 1	24 deg. DKO swivel light duty
Finish plating	Zinc nickel
Hex size 1 IN	1.410
Hex size 1 MM	35.814
Hose cut off factor IN	1.340
Hose cut off factor MM	34.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.620
Product height mm	41.148
Product length in	3.320
Product length mm	84.328
Product material	Carbon steel
Product width in	1.410
Product width mm	35.814
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 MM	22.000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
