Danfoss 20211Y-52-24TZ

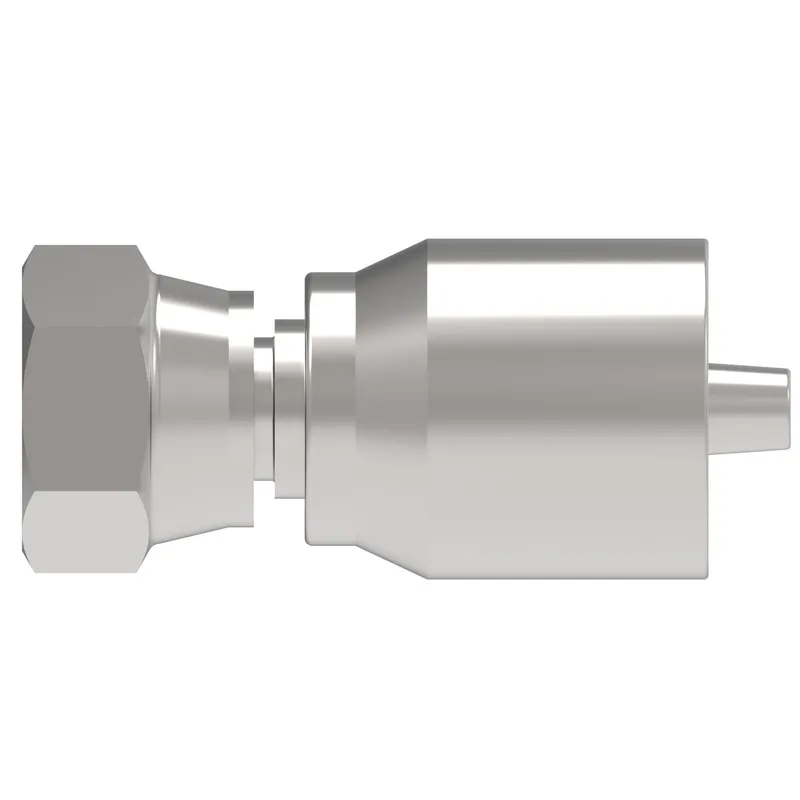

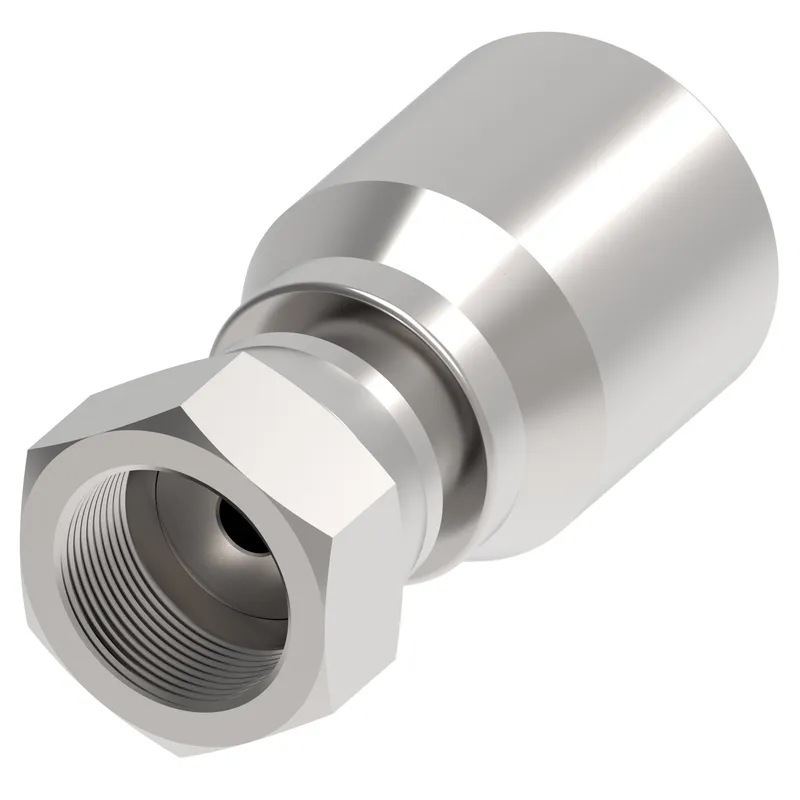

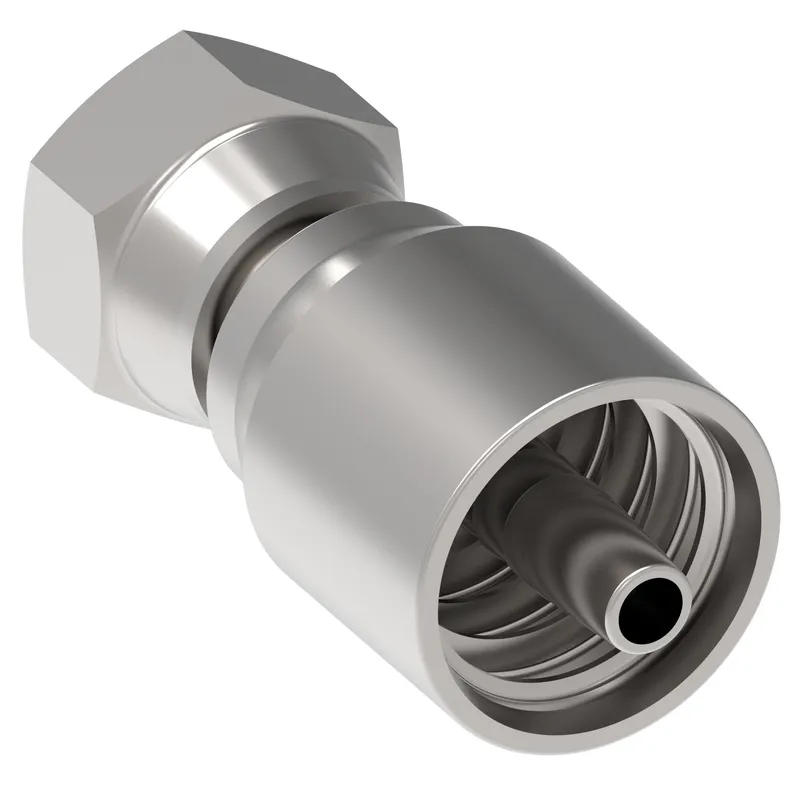

HOSE NIPPLE ASSY,1P/24,MORFS-F/52,CS,STR

MPN: 20211Y-52-24TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211Y-52-24TZ?

Danfoss HOSE NIPPLE ASSY,1P/24,MORFS-F/52,CS,STR, manufacturer part number 20211Y-52-24TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.661
A dimension MM	93.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.500
Compatible hose ID MM	38.100
Construction Style	Crimp
Finish plating	Zinc plating
Hex size 1 IN	2.362
Hex size 1 MM	60.000
Hex size 2 IN	0.000
Hose cut off factor IN	0.984
Hose cut off factor MM	25.000
Hose size	-24
Inside diameter IN	1.259
Inside diameter MM	32.000
Product height in	2.720
Product height mm	69.088
Product length in	4.330
Product length mm	109.982
Product material	Carbon steel
Product width in	2.360
Product width mm	59.944
Thread sealant	No
Thread size 1	M52x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20211Y-52-24TZ: frequently asked questions

When can 20211Y-52-24TZ be shipped?

20211Y-52-24TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20211Y-52-24TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20211Y-52-24TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20211Y-52-24TZ, subject to availability and destination.
