Danfoss 20211Y-36-12TZ

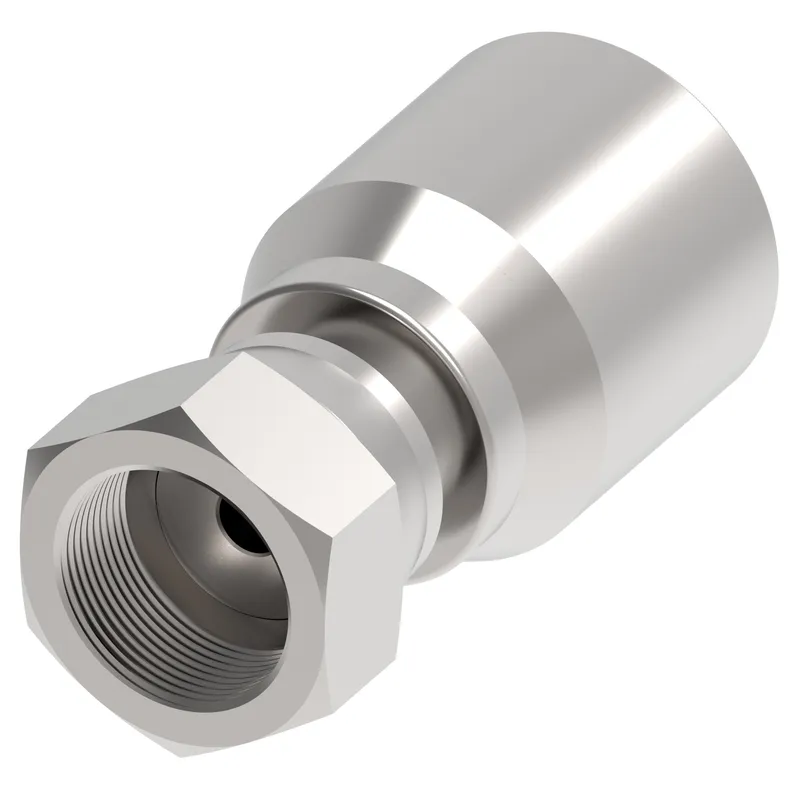

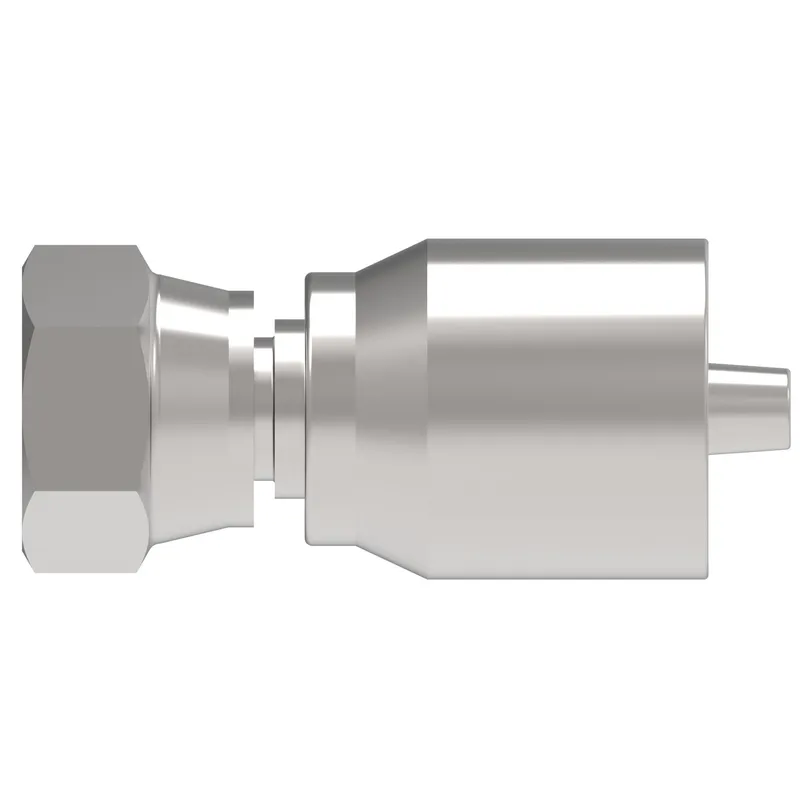

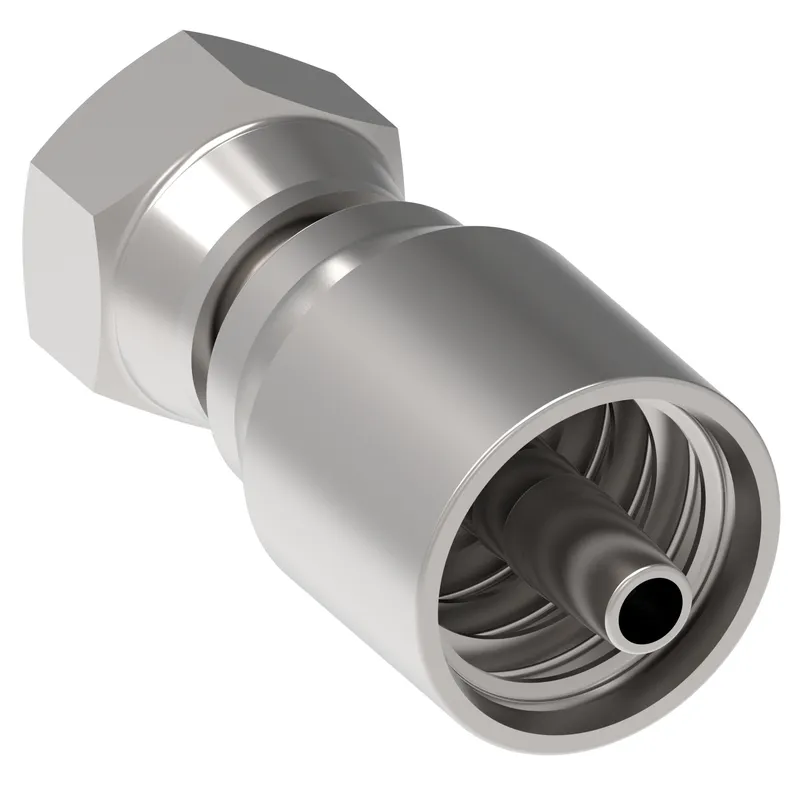

HOSE NIPPLE ASSY,1P/12,MORFS-F/36,CS,STR

MPN: 20211Y-36-12TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211Y-36-12TZ?

Danfoss HOSE NIPPLE ASSY,1P/12,MORFS-F/36,CS,STR, manufacturer part number 20211Y-36-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.303
A dimension MM	58.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 2	-12
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.610
Hex size 1 MM	40.894
Hex size 2 IN	1.614
Hex size 2 MM	41.000
Hose cut off factor IN	0.787
Hose cut off factor MM	20.000
Hose size	-12
Inside diameter IN	0.590
Inside diameter MM	15.000
Product height in	1.850
Product height mm	46.990
Product length in	2.814
Product length mm	71.476
Product material	Carbon steel
Product width in	1.610
Product width mm	40.894
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40

20211Y-36-12TZ: frequently asked questions

When can 20211Y-36-12TZ be shipped?

20211Y-36-12TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 20211Y-36-12TZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 20211Y-36-12TZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20211Y-36-12TZ, subject to availability and destination.
