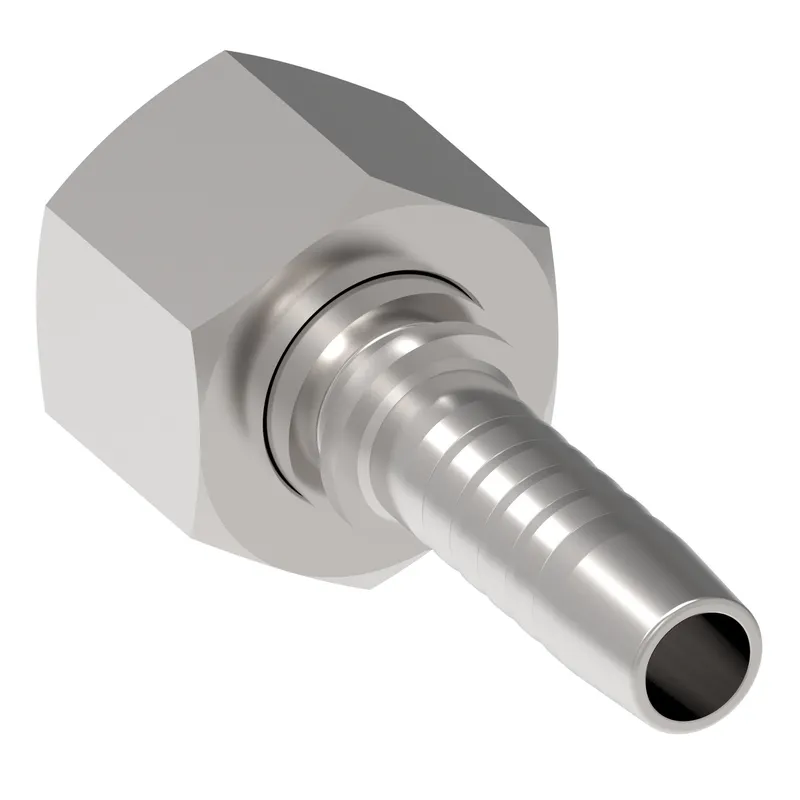

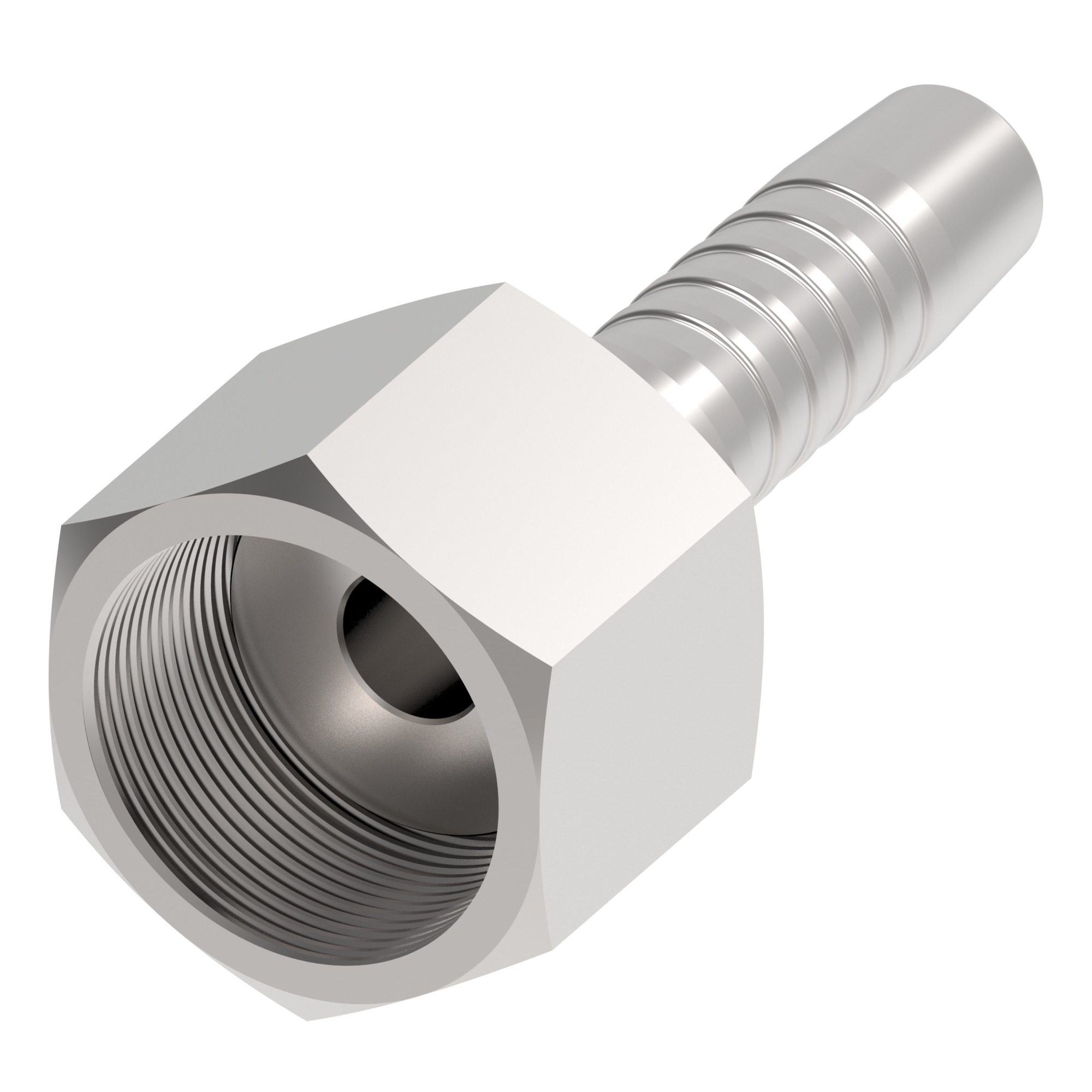

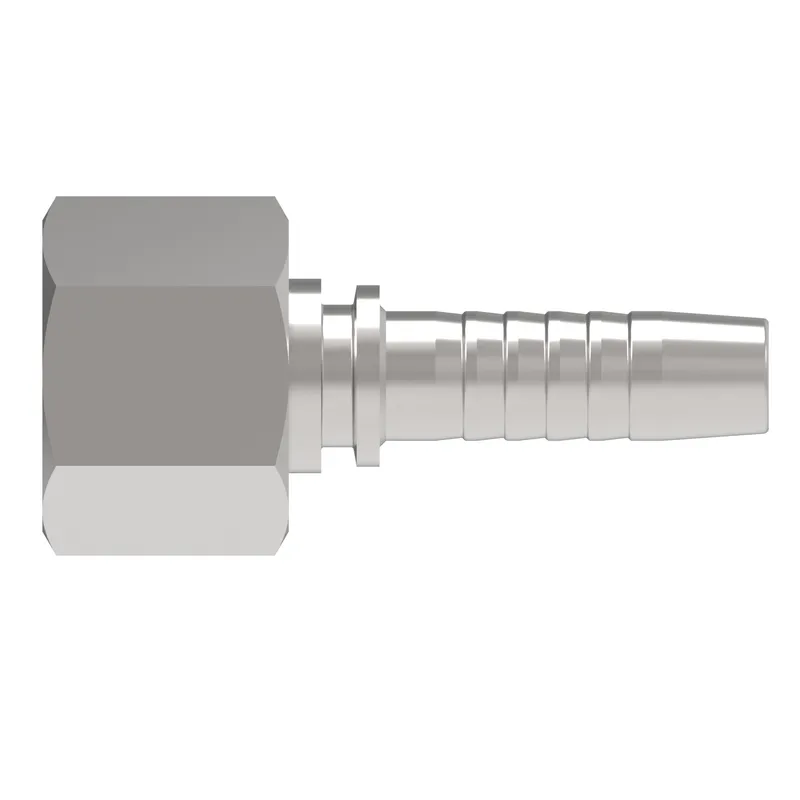

Danfoss 20211-45-20TZ

HOSE NIPPLE ASSY,2P/20,MORFS-F/45,CS,STR

MPN: 20211-45-20TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-45-20TZ?

Danfoss HOSE NIPPLE ASSY,2P/20,MORFS-F/45,CS,STR, manufacturer part number 20211-45-20TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.110
A dimension MM	79.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Construction Style	Crimp
End size 2	-20
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	2.170
Hex size 1 MM	55.118
Hex size 2 IN	2.165
Hex size 2 MM	55.000
Hose cut off factor IN	0.984
Hose cut off factor MM	25.000
Hose size	-20
Inside diameter IN	1.062
Inside diameter MM	27.000
Product height in	2.500
Product height mm	63.500
Product length in	3.700
Product length mm	93.980
Product material	Carbon steel
Product width in	2.165
Product width mm	54.991
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M45x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
