Danfoss 20211-39-16TZ

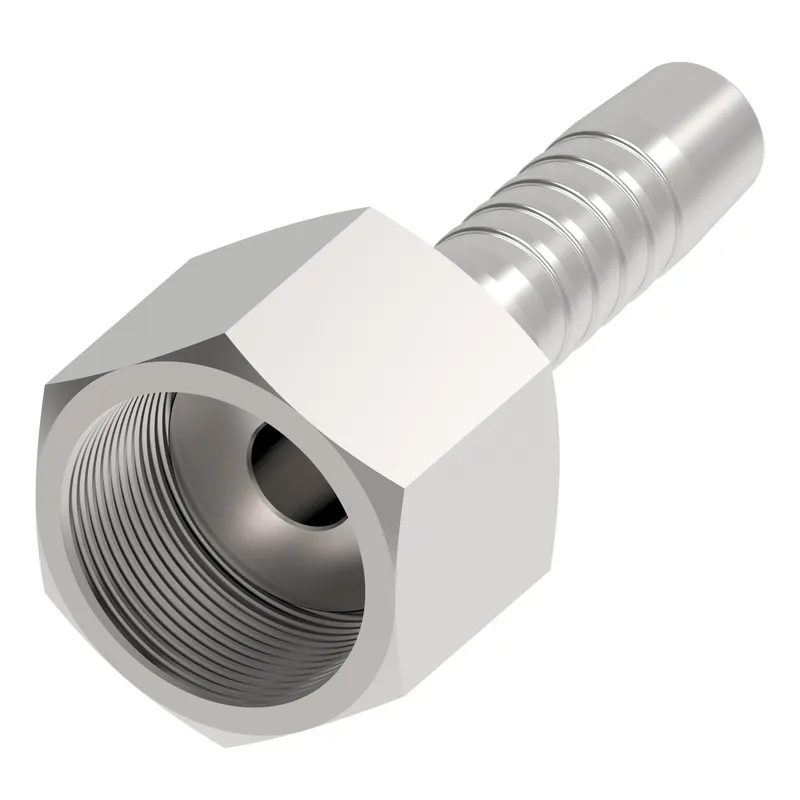

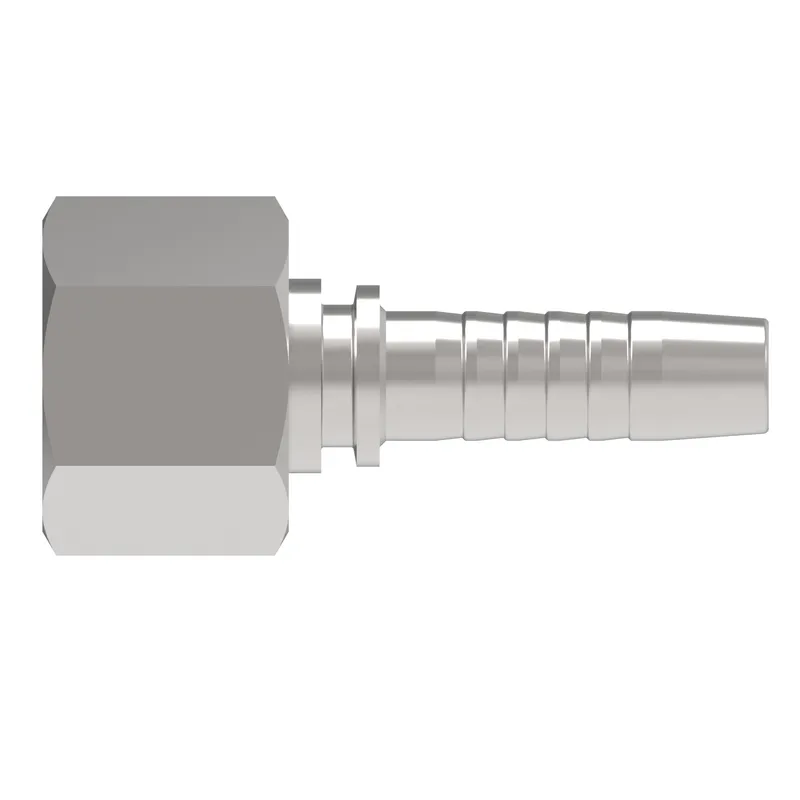

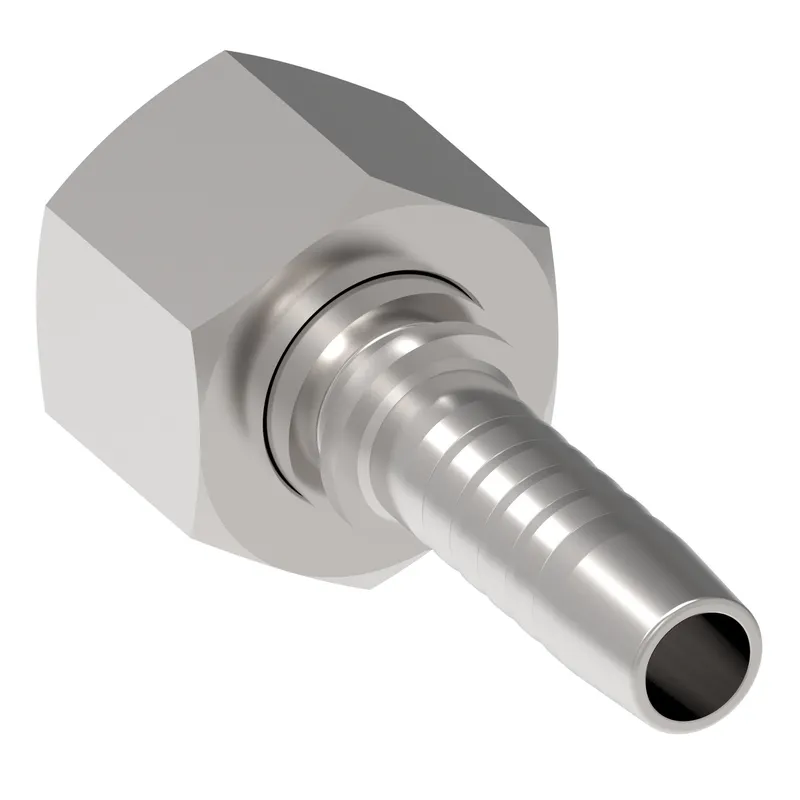

HOSE NIPPLE ASSY,2P/16,MORFS-F/39,CS,STR

MPN: 20211-39-16TZ
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 20211-39-16TZ?

Danfoss HOSE NIPPLE ASSY,2P/16,MORFS-F/39,CS,STR, manufacturer part number 20211-39-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.775
A dimension MM	70.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Construction Style	Crimp
End size 2	-16
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.810
Hex size 1 MM	45.974
Hex size 2 IN	1.811
Hex size 2 MM	46.000
Hose cut off factor IN	0.925
Hose cut off factor MM	23.500
Hose size	-16
Inside diameter IN	0.826
Inside diameter MM	21.000
Product height in	2.070
Product height mm	52.578
Product length in	3.267
Product length mm	82.981
Product material	Carbon steel
Product width in	1.800
Product width mm	45.72
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	M39x2
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
