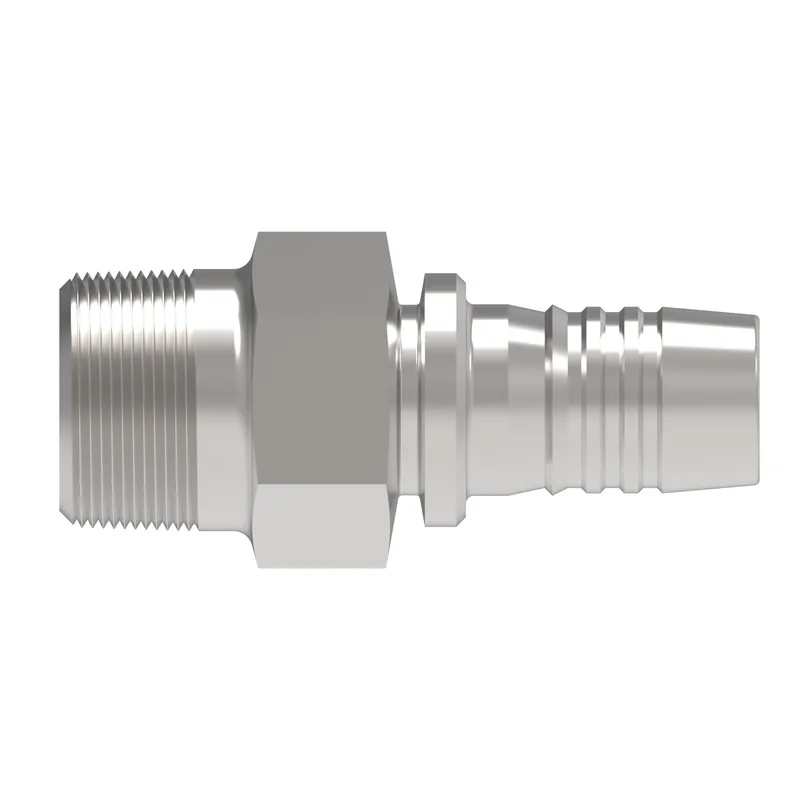

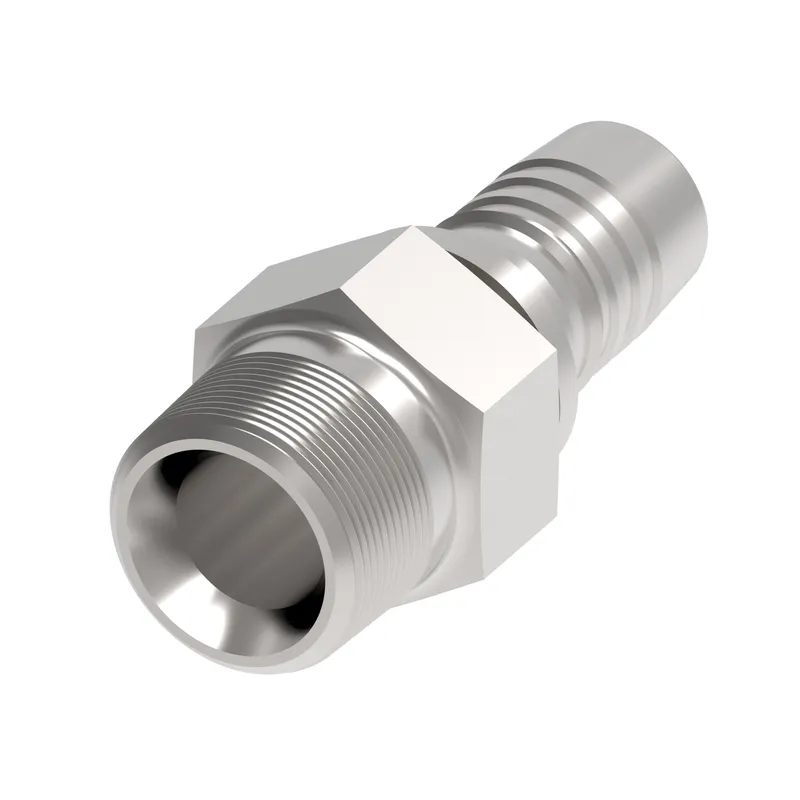

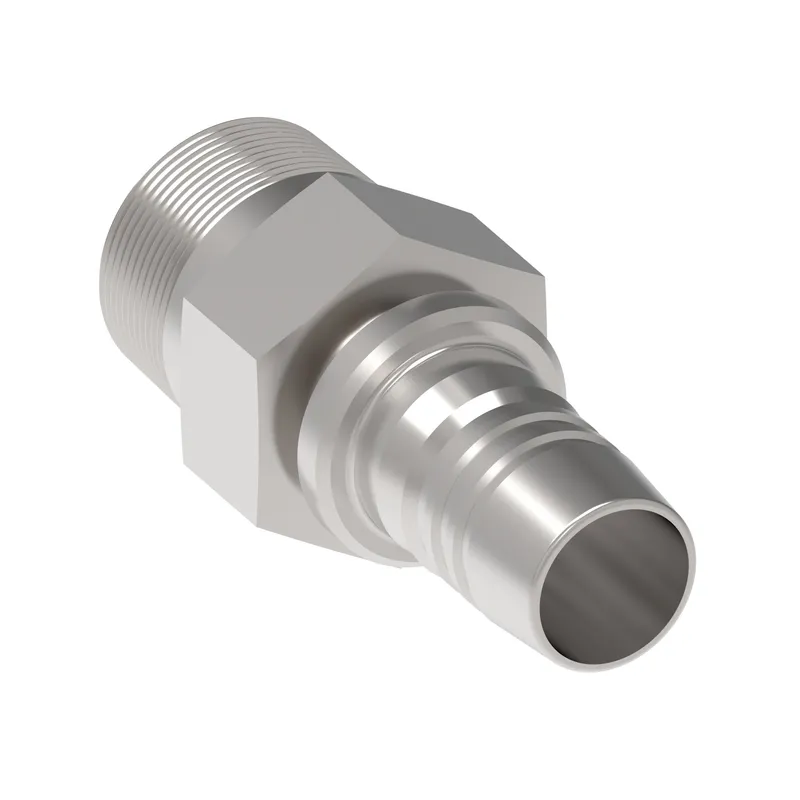

HOSE NIPPLE, 1A/24, NPTF-M/24, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1S24MP24 be shipped?
1S24MP24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1S24MP24 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1S24MP24 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1S24MP24, subject to availability and destination.
Danfoss HOSE NIPPLE, 1A/24, NPTF-M/24, CS, STR, manufacturer part number 1S24MP24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.184 |
| A dimension MM | 106.280 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| End size 1 | -24 |
| End Type 1 | Male pipe (NPTF) |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 1.970 |
| Hex size 1 MM | 50.038 |
| Hose cut off factor IN | 1.015 |
| Hose cut off factor MM | 25.780 |
| Hose size | -24 |
| Inside diameter IN | 8.600 |
| Inside diameter MM | 2.200 |
| Product height in | 2.270 |
| Product height mm | 57.658 |
| Product length in | 4.180 |
| Product length mm | 106.172 |
| Product material | Carbon steel |
| Product width in | 1.970 |
| Product width mm | 50.038 |
| Series | 1A/Z Series |
| Thread sealant | No |
| Thread size 1 | 1 1/2-11 1/2 NPTF |
| Working pressure max BAR | 138.00 |
| Working pressure max PSI | 2000.00 |
