Danfoss 1G6DSB5

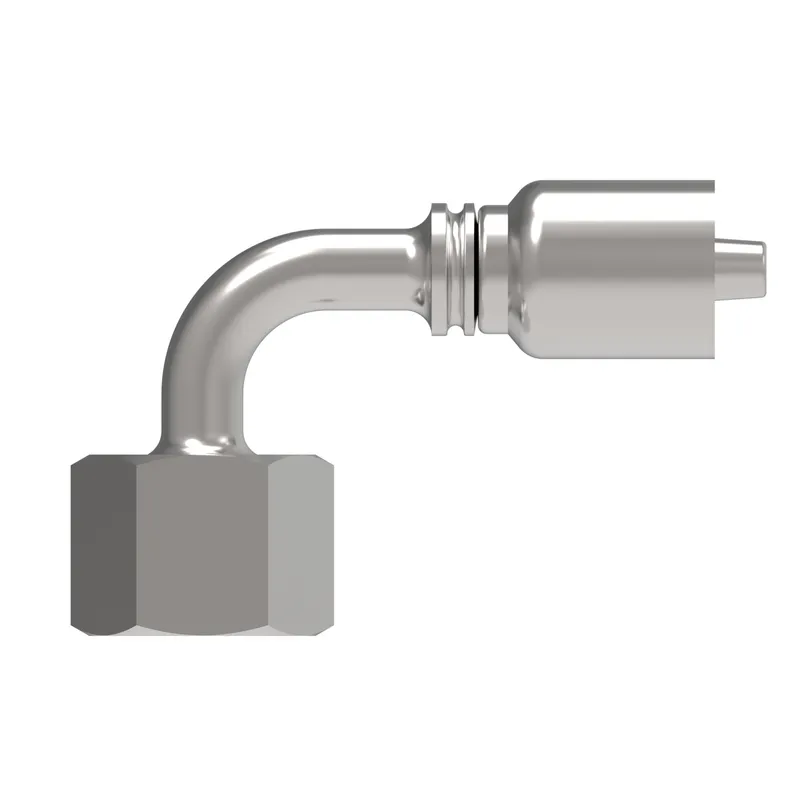

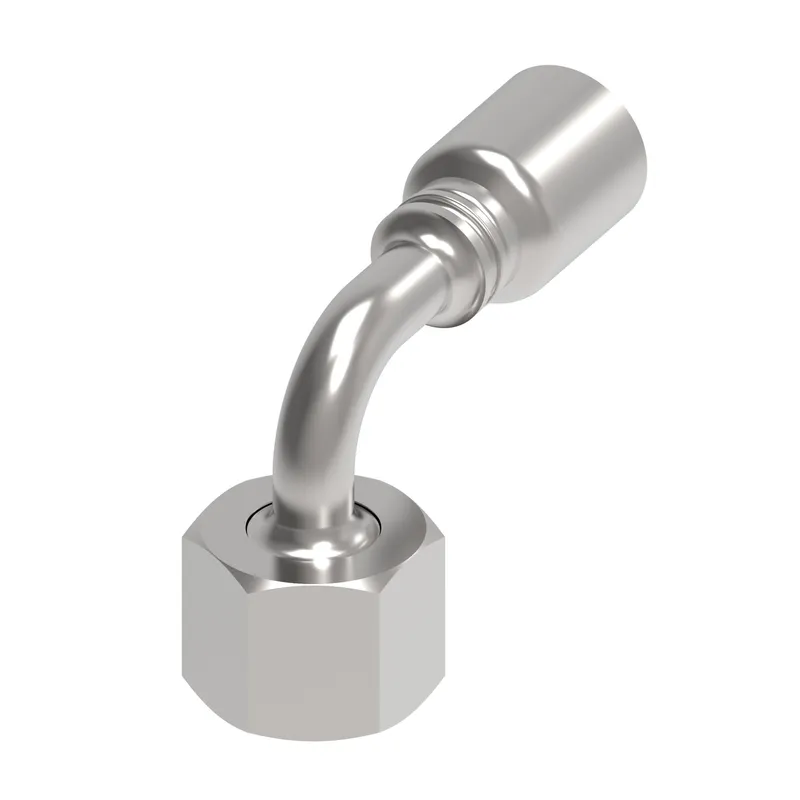

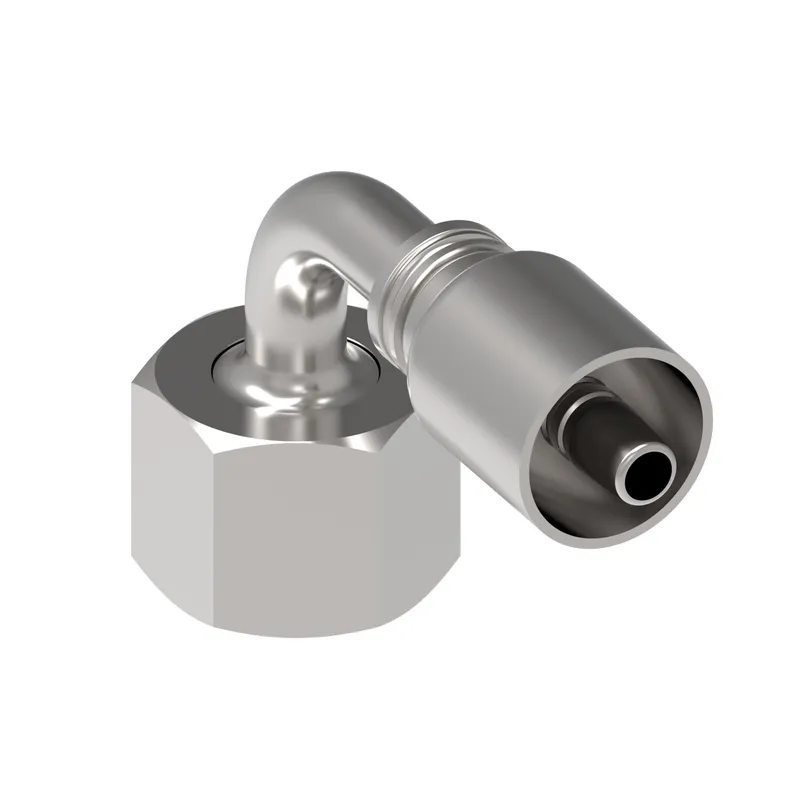

HOSE FTG, 1G/05, DKOH-B/06, CS, 90D

MPN: 1G6DSB5
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G6DSB5?

Danfoss HOSE FTG, 1G/05, DKOH-B/06, CS, 90D, manufacturer part number 1G6DSB5. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.110
A dimension MM	53.800
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.310
Compatible hose ID MM	7.900
Construction Style	Crimp
Drop dimension IN	1.310
Drop dimension MM	33.50
End connection torque	37-44 lb-ft(50-60 Nm)
End size 1	-6
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	0.866
Hex size 1 MM	22.000
Hose cut off factor IN	1.180
Hose cut off factor MM	30.000
Hose size	-5
Inside diameter IN	0.200
Inside diameter MM	5.300
Product height in	1.728
Product height mm	43.901
Product length in	2.551
Product length mm	64.800
Product material	Carbon steel
Product width in	1.000
Product width mm	25.4
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	M18x1.5
Working pressure max BAR	400
Working pressure max PSI	5800
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
