Danfoss 1G6DL4

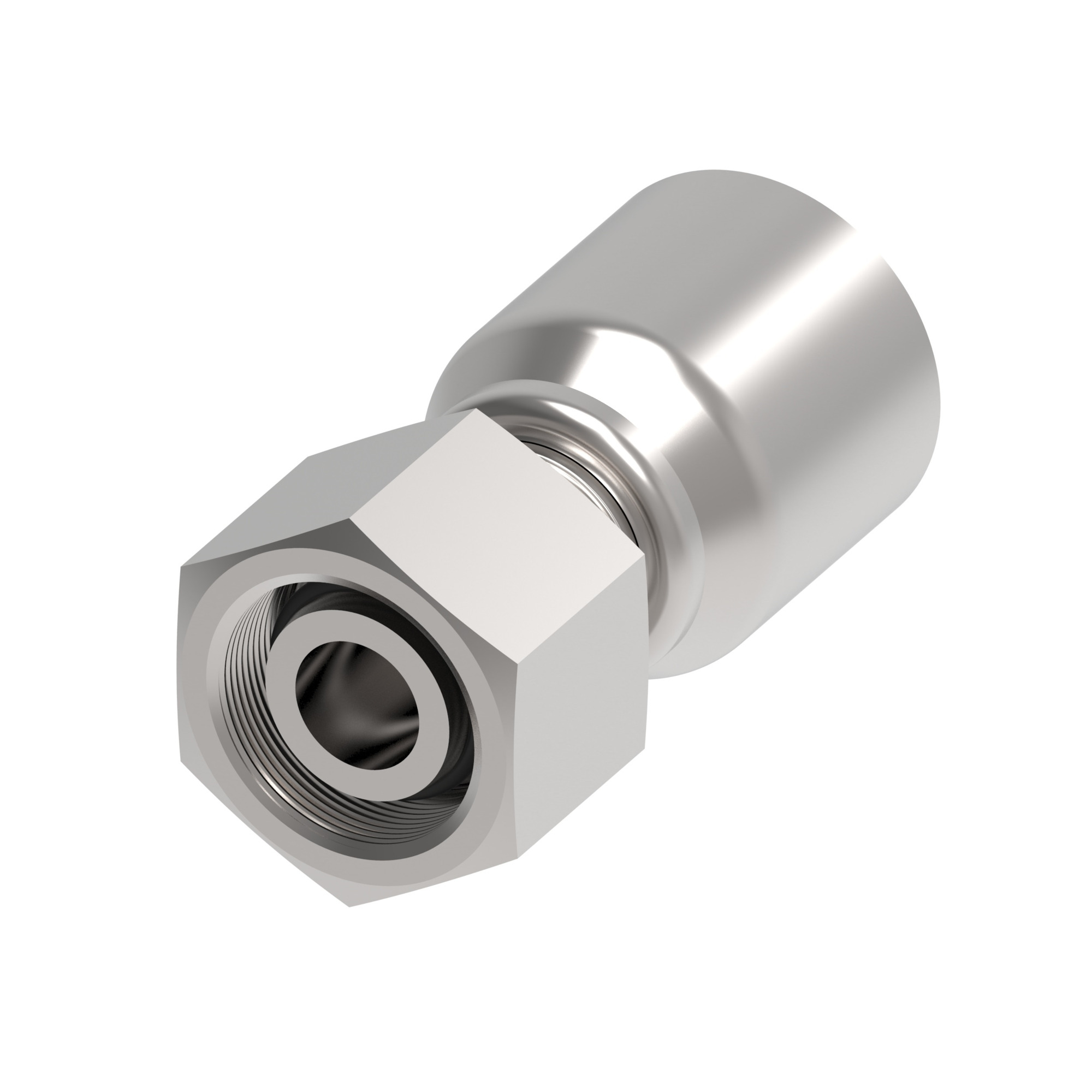

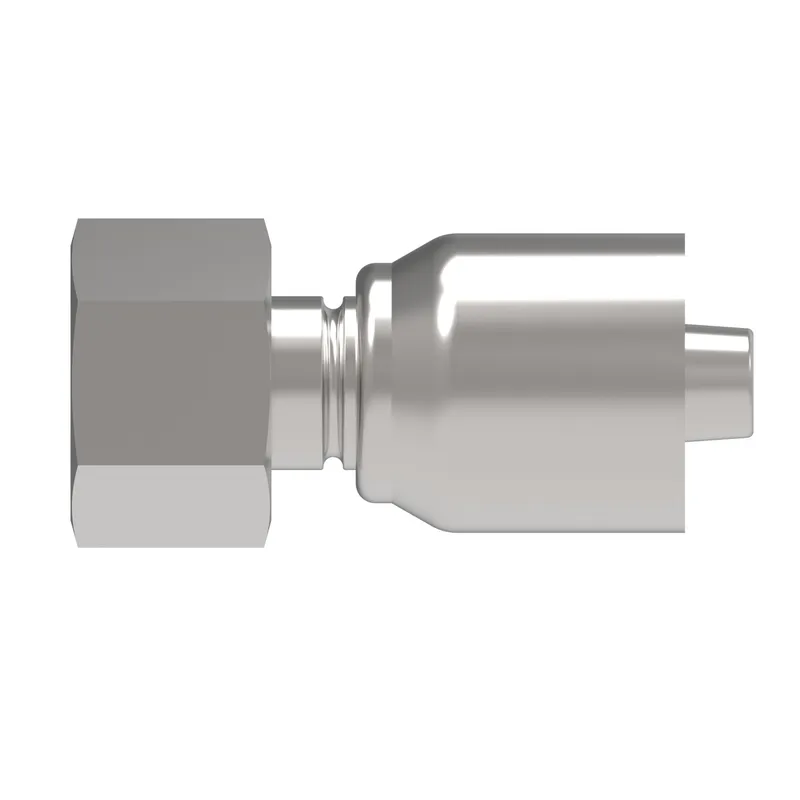

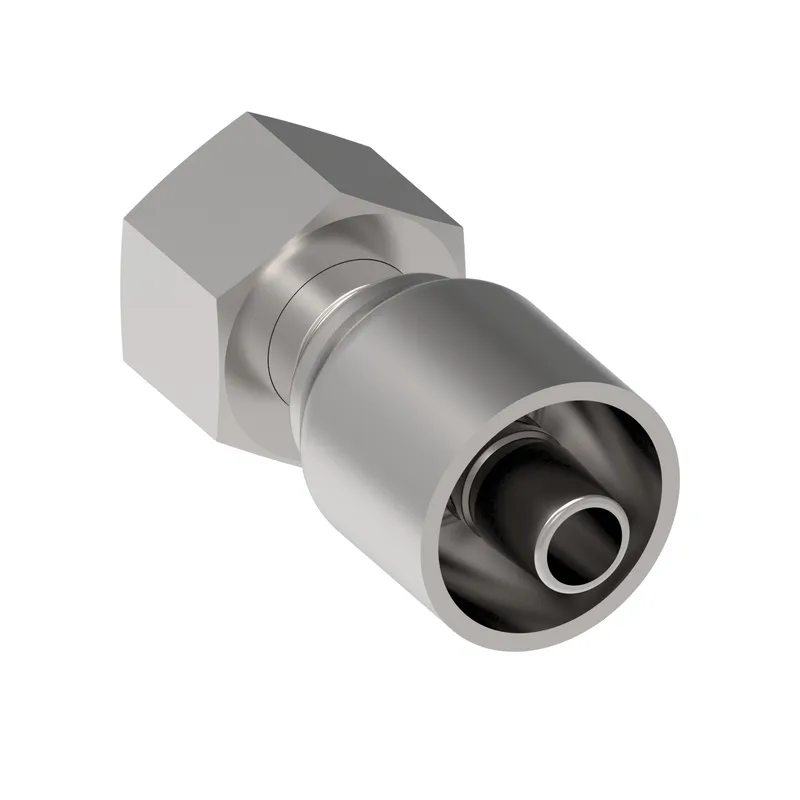

HOSE FTG, 1G/04, DKOL/06, CS, STR

MPN: 1G6DL4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G6DL4?

Danfoss HOSE FTG, 1G/04, DKOL/06, CS, STR, manufacturer part number 1G6DL4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.810
A dimension MM	46.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	16.993
Hose cut off factor IN	0.890
Hose cut off factor MM	22.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.669
Product height mm	16.993
Product length in	1.810
Product length mm	45.974
Product material	Carbon steel
Product width in	0.669
Product width mm	16.993
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M14x1.5
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
