Danfoss 1G25DLA16

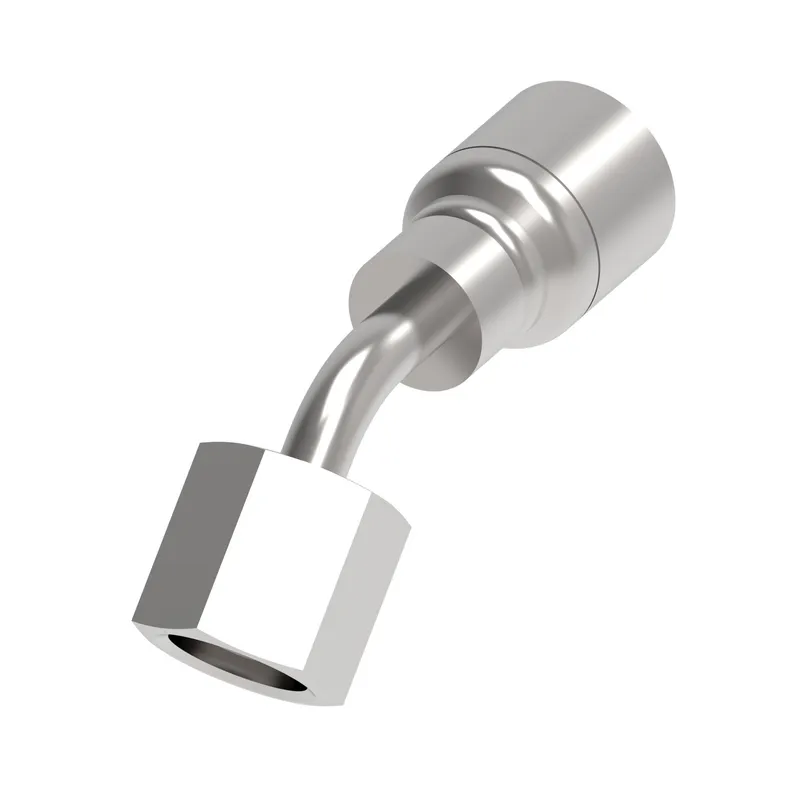

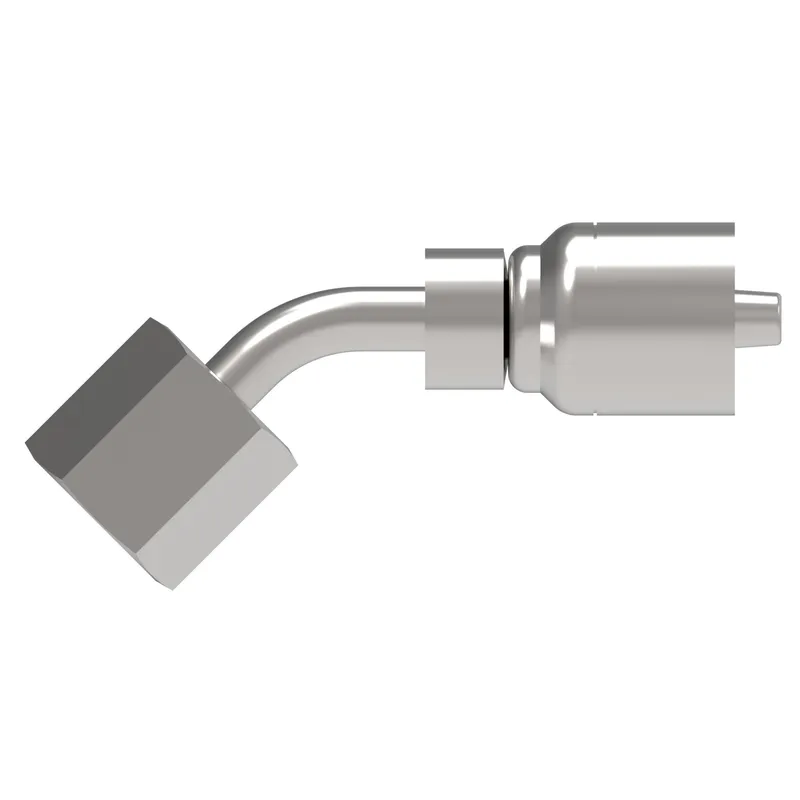

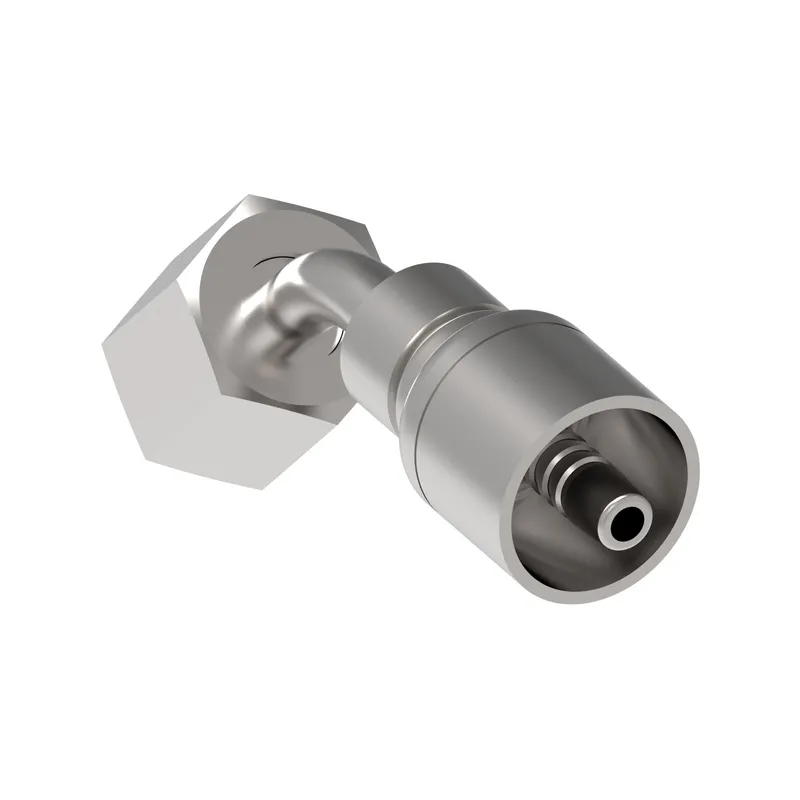

HOSE FTG, 1G/16, DKOL/12, CS, 45D

MPN: 1G25DLA16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G25DLA16?

Danfoss HOSE FTG, 1G/16, DKOL/12, CS, 45D, manufacturer part number 1G25DLA16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	4.060
A dimension MM	103.100
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	GH585, GH586
Construction Style	Crimp
Drop dimension IN	1.050
Drop dimension MM	26.60
End size 1	-25
End Type 1	24 deg. DKO swivel light duty
Finish plating	Dura-Kote
Hex size 1 IN	1.614
Hex size 1 MM	40.996
Hose cut off factor IN	2.700
Hose cut off factor MM	68.700
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	2.690
Product height mm	68.326
Product length in	4.900
Product length mm	124.460
Product material	Carbon steel
Product width in	1.614
Product width mm	40.996
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	OTC
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
