Danfoss 1G25DK16

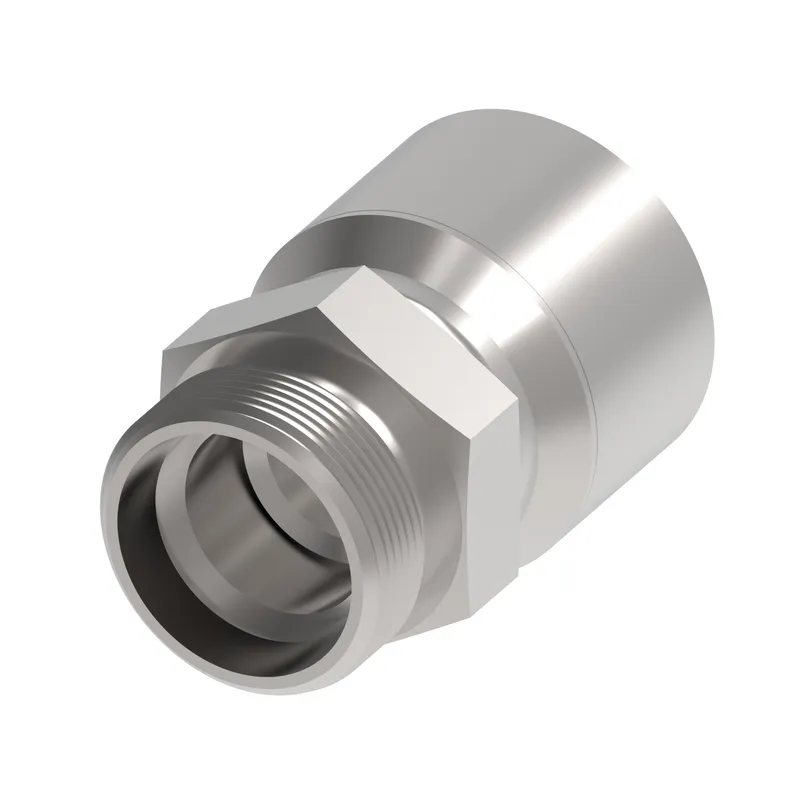

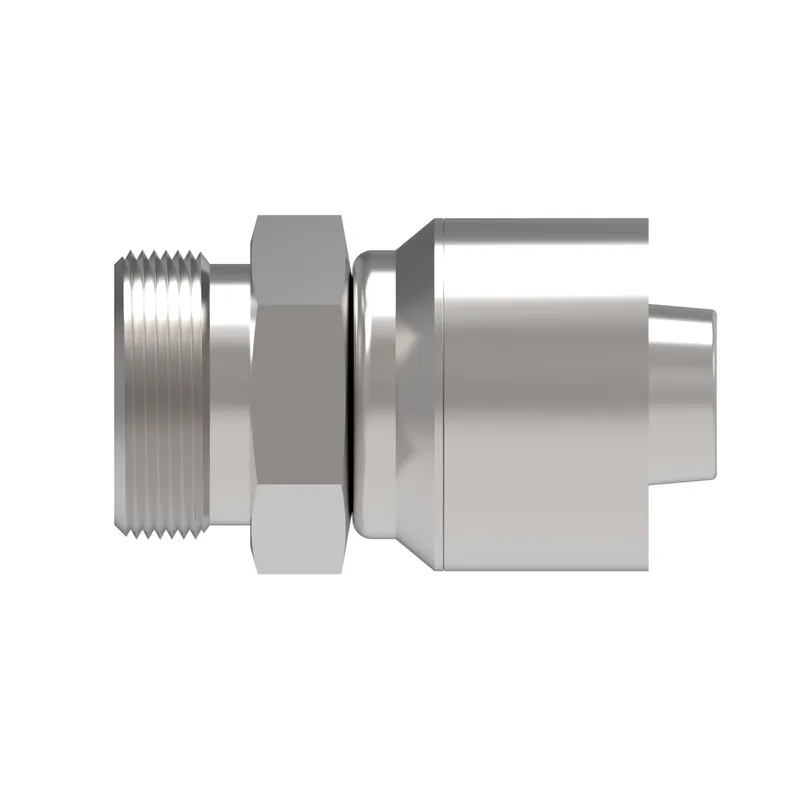

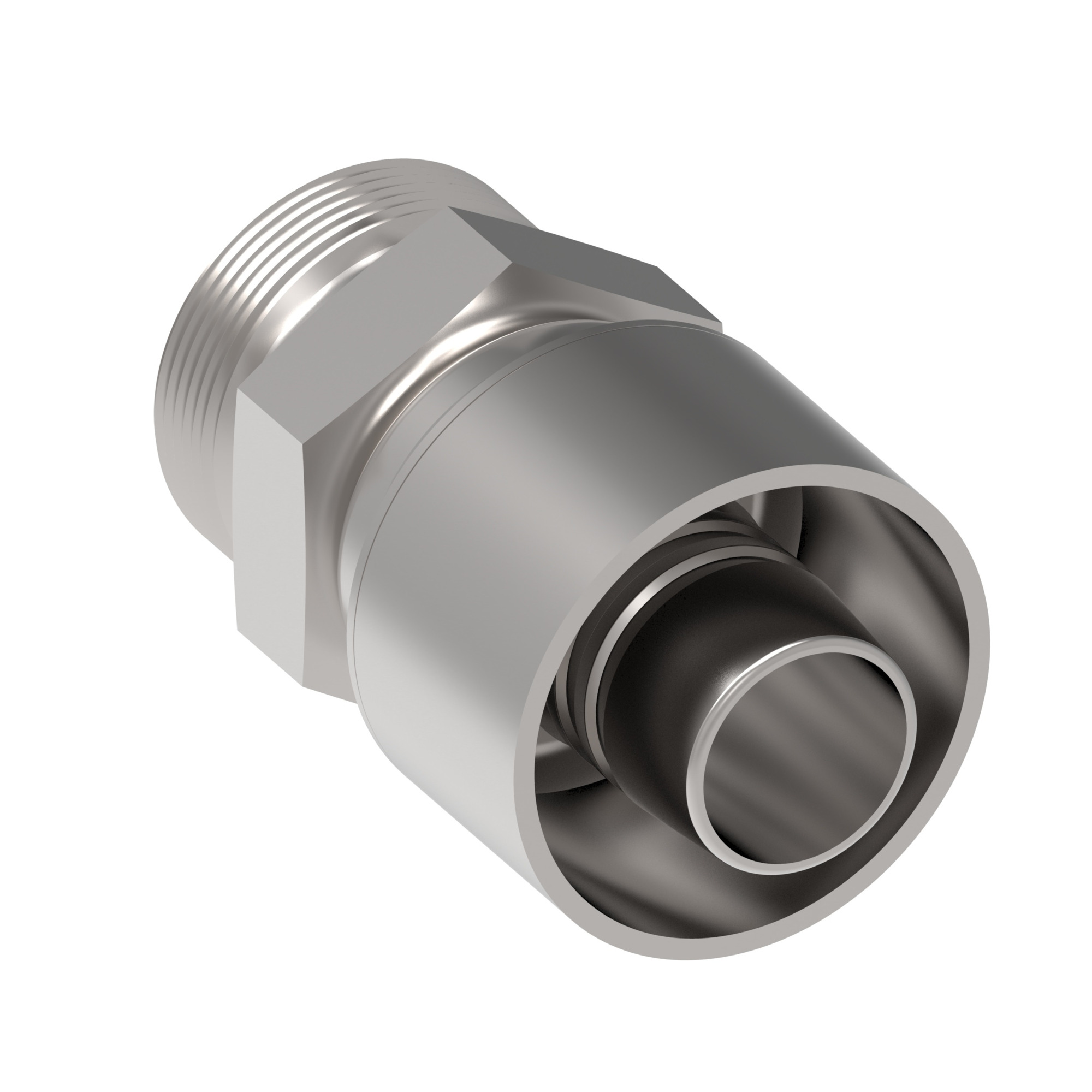

HOSE FTG, 1G/16, DKL-M/12, CS, STR

MPN: 1G25DK16
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1G25DK16?

Danfoss HOSE FTG, 1G/16, DKL-M/12, CS, STR, manufacturer part number 1G25DK16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.600
A dimension MM	66.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	GH585, GH586
Construction Style	Crimp
End size 1	-25
End Type 1	24 deg. tube port light duty
Finish plating	Dura-Kote
Hex size 1 IN	0.000
Hex size 1 MM	40.996
Hex size 2 MM	41.000
Hose cut off factor IN	1.240
Hose cut off factor MM	31.600
Hose size	-16
Inside diameter IN	0.810
Inside diameter MM	20.700
Product height in	1.860
Product height mm	47.244
Product length in	2.600
Product length mm	66.040
Product material	Carbon steel
Product width in	1.614
Product width mm	40.996
Proposition 65	Cancer and Reproductive Harm
Series	OTC
Thread sealant	No
Thread size 1	M36x2
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
