Danfoss 1EA20FRA20

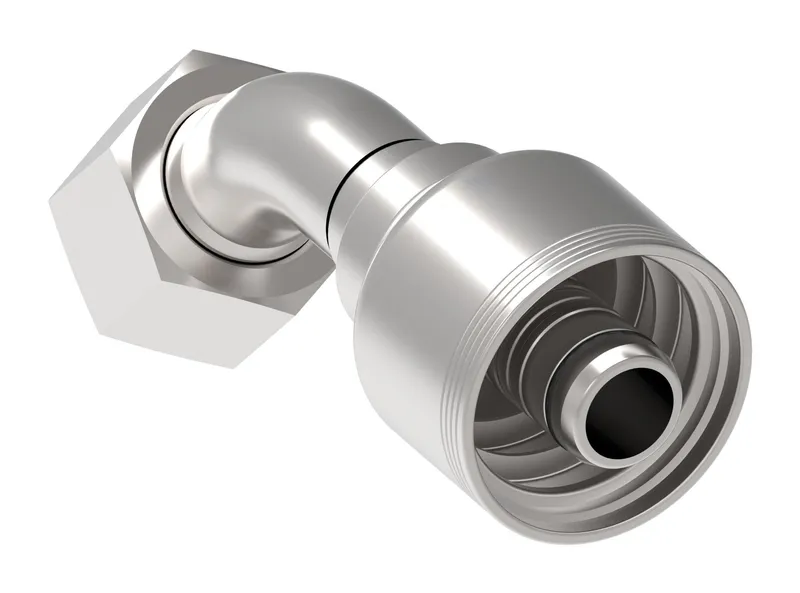

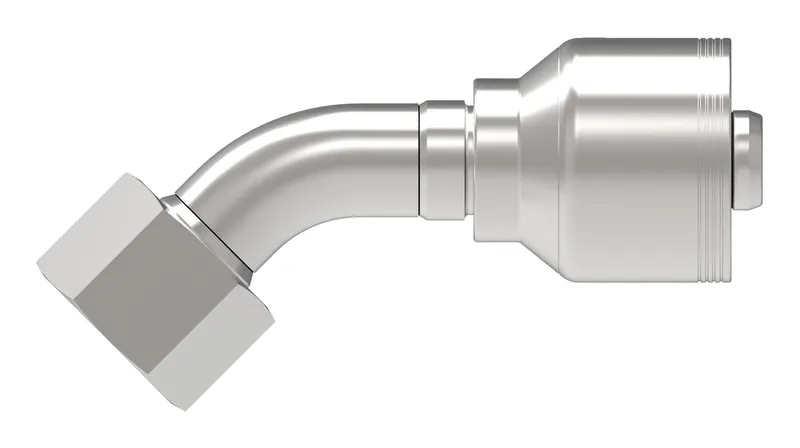

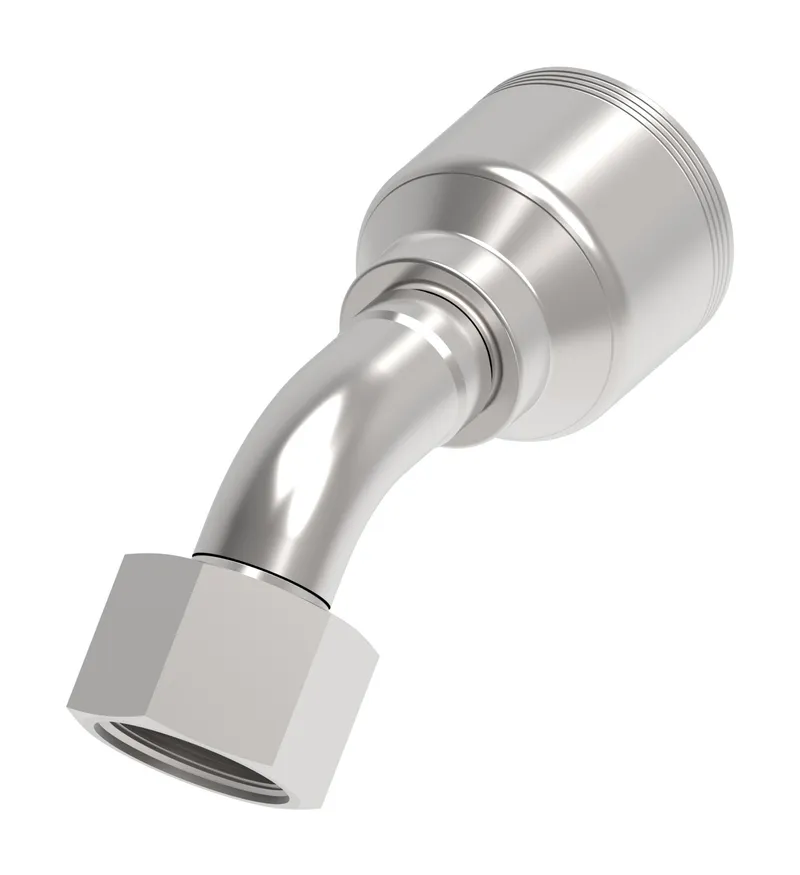

HOSE FTG, 1A/20, ORS-F/20, CS, 45D

MPN: 1EA20FRA20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA20FRA20?

Danfoss HOSE FTG, 1A/20, ORS-F/20, CS, 45D, manufacturer part number 1EA20FRA20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132703
A dimension IN	6.040
A dimension MM	153.400
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
Drop dimension IN	1.220
Drop dimension MM	31.00
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End size 2	-20
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.875
Hex size 1 MM	47.625
Hose cut off factor IN	3.860
Hose cut off factor MM	98.000
Hose size	-20
Inside diameter IN	0.990
Inside diameter MM	25.200
Product height in	1.220
Product height mm	30.988
Product length in	7.080
Product length mm	179.832
Product material	Carbon steel
Product width in	2.457
Product width mm	62.408 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 11/16-12 UN
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	310
Working pressure max PSI	4500
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
