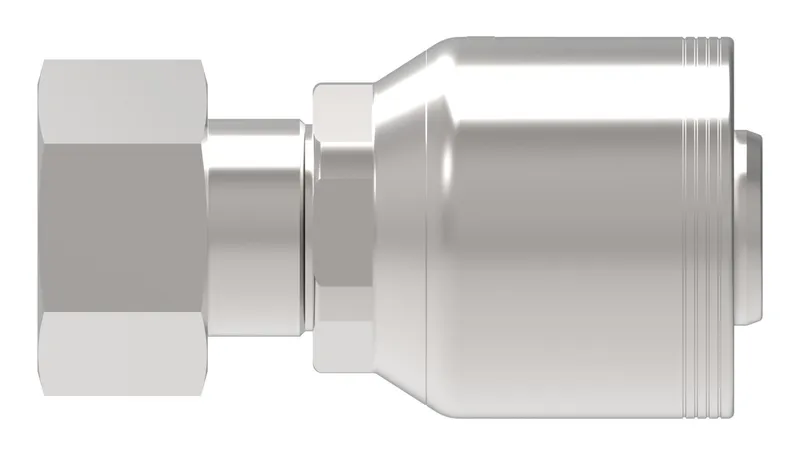

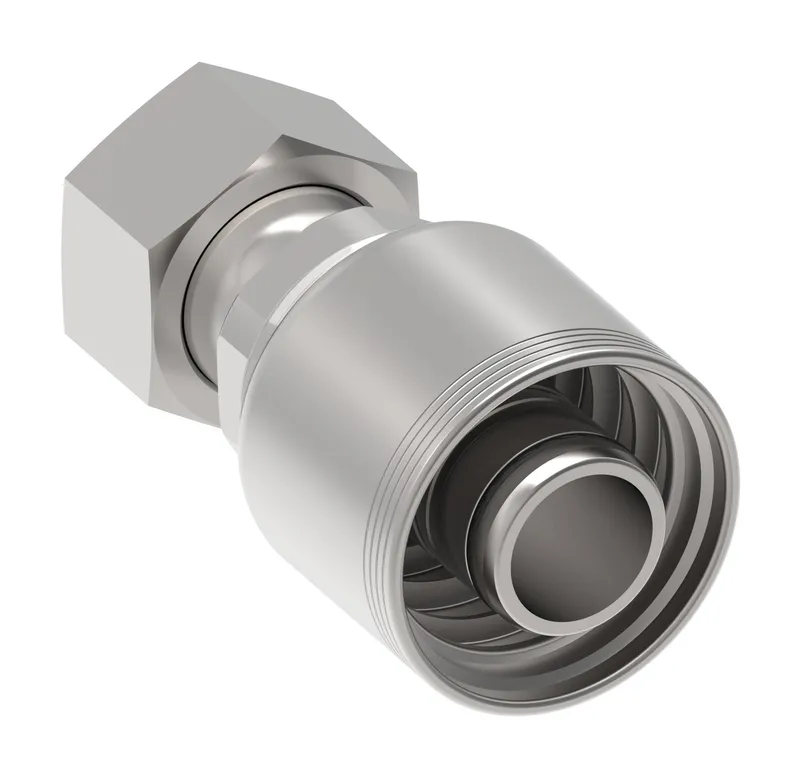

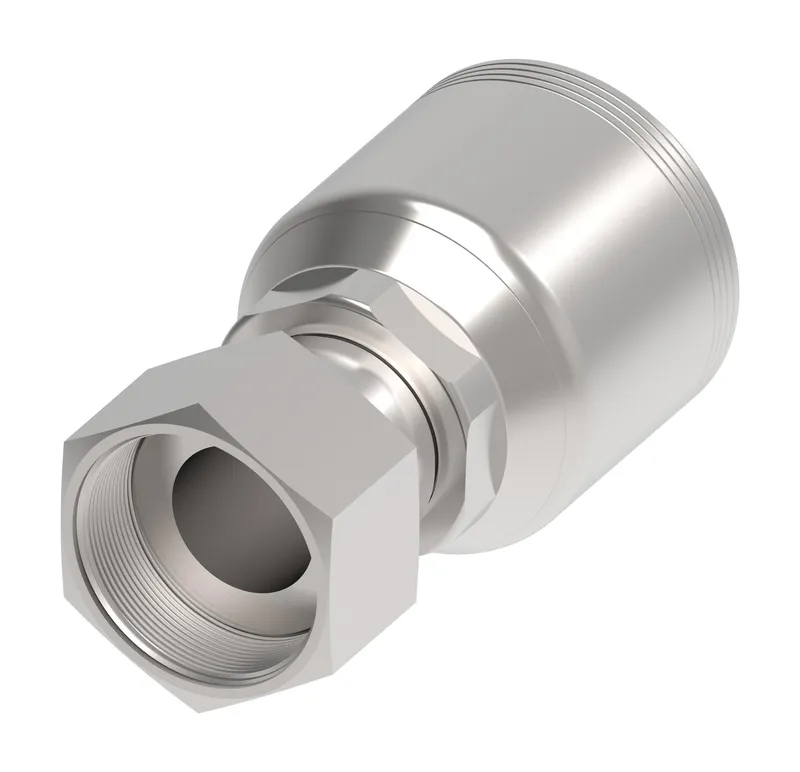

Danfoss 1EA20FR20

HOSE FTG, 1A/20, ORS-F/20, CS, STR

MPN: 1EA20FR20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1EA20FR20?

Danfoss HOSE FTG, 1A/20, ORS-F/20, CS, STR, manufacturer part number 1EA20FR20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132680
A dimension IN	3.900
A dimension MM	99.000
Angle shape	Straight
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC273, GH466, FC254, FC606, GH506
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
End connection torque	125-140 lb-ft(170-190 Nm)
End size 1	-20
End size 2	-20
End type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.875
Hex size 1 MM	47.625
Hex size 2 MM	46.000
Hose cut off factor IN	1.720
Hose cut off factor MM	43.800
Hose size	-20
Inside diameter IN	0.990
Inside diameter MM	25.200
Product height in	2.457
Product height mm	62.408
Product length in	5.380
Product length mm	136.652
Product material	Carbon steel
Product width in	2.457
Product width mm	62.408 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 11/16-12 UN
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	310
Working pressure max PSI	4500
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40

1EA20FR20: frequently asked questions

When can 1EA20FR20 be shipped?

1EA20FR20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1EA20FR20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1EA20FR20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1EA20FR20, subject to availability and destination.
