Danfoss 1EA12FJA12

HOSE FTG, 1A/12, JIC-F/12, CS, 45D

MPN
1EA12FJA12
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

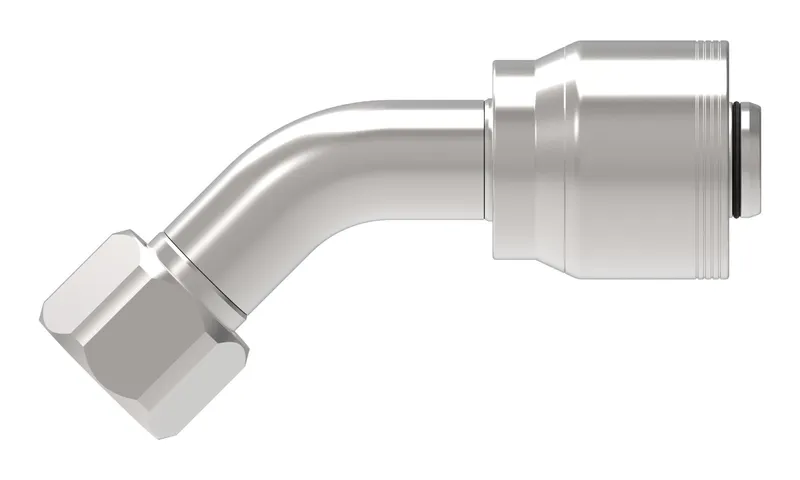

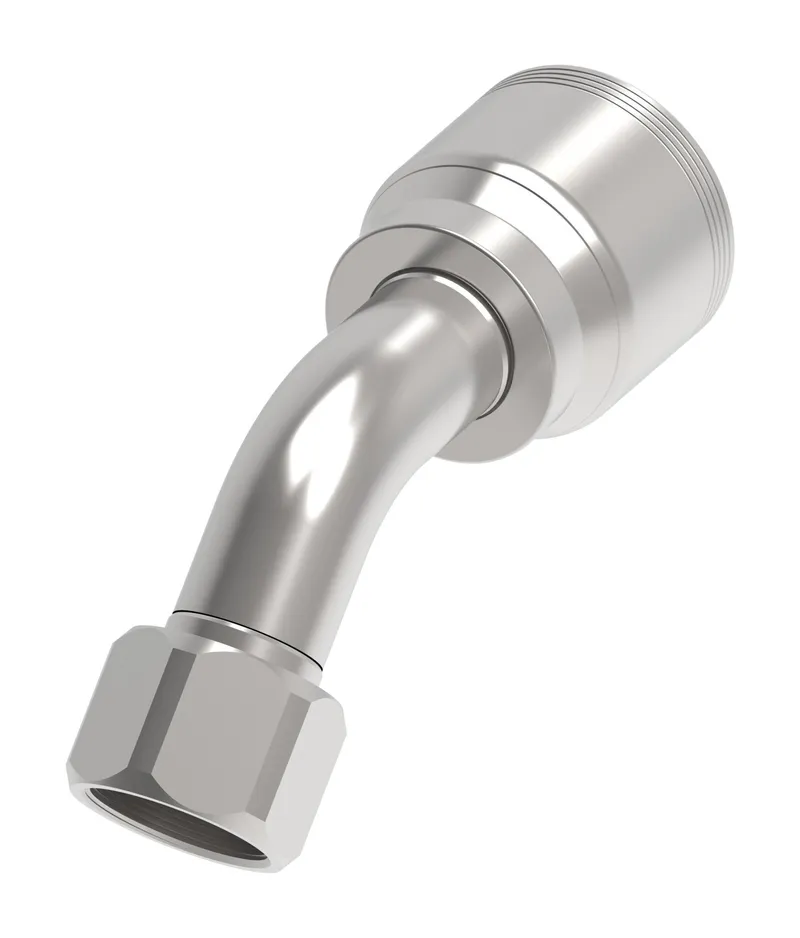

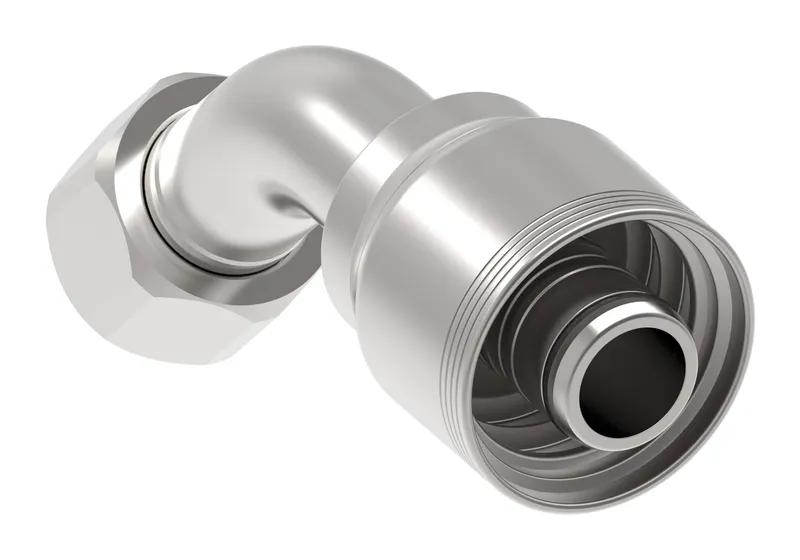

What is the Danfoss 1EA12FJA12?

Danfoss HOSE FTG, 1A/12, JIC-F/12, CS, 45D, manufacturer part number 1EA12FJA12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC678146132437
A dimension IN4.420
A dimension MM112.300
Angle shape45 Degree
Compatible hose ID IN0.750
Compatible hose ID MM19.000
Compatible hosesFC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN0.75
Compatible tube OD MM19.050
Construction StyleCrimp
Drop dimension IN1.140
Drop dimension MM29.00
End connection torque79-87 lb-ft(108-119 Nm)
End size 1-12
End type 1Female 37 degree swivel
Finish platingDura-Kote
Hose cut off factor IN3.000
Hose cut off factor MM76.100
Hose size-12
Inside diameter IN0.560
Inside diameter MM14.200
Product height in1.060
Product height mm26.924
Product length in4.800
Product length mm121.920
Product materialCarbon steel
Product width in1.779
Product width mm45.187 mm
Seal materialEthylene propylene (EPDM)
Series1A/Z Series
Thread sealantNo
Thread size 11 1/16-12 UN
Tube OD 1 IN0.750
Tube OD 1 MM19.050
Working pressure max BAR330
Working pressure max PSI4800
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
