Danfoss 1E32FL32

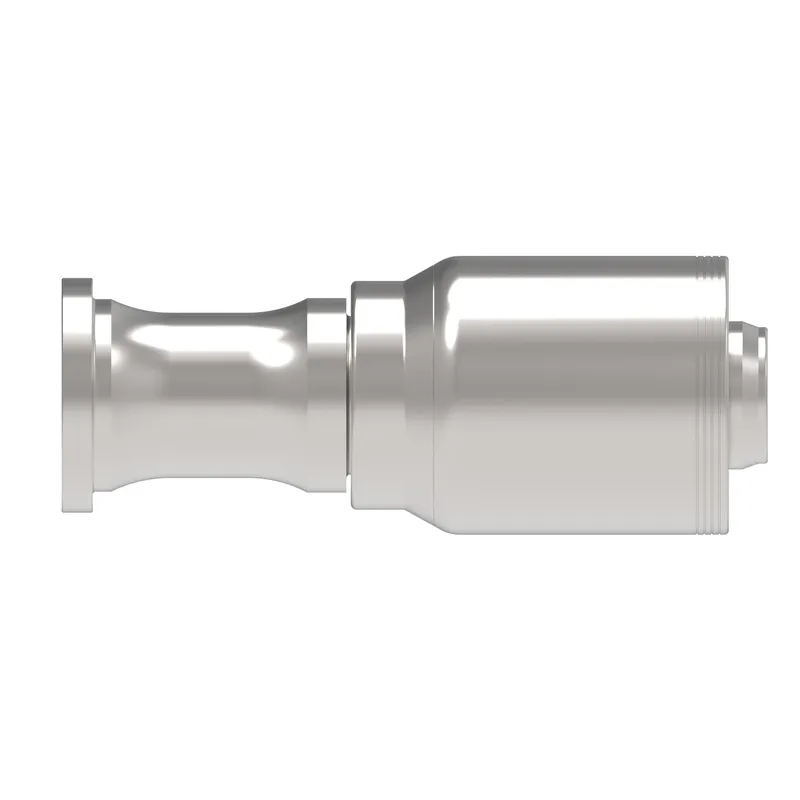

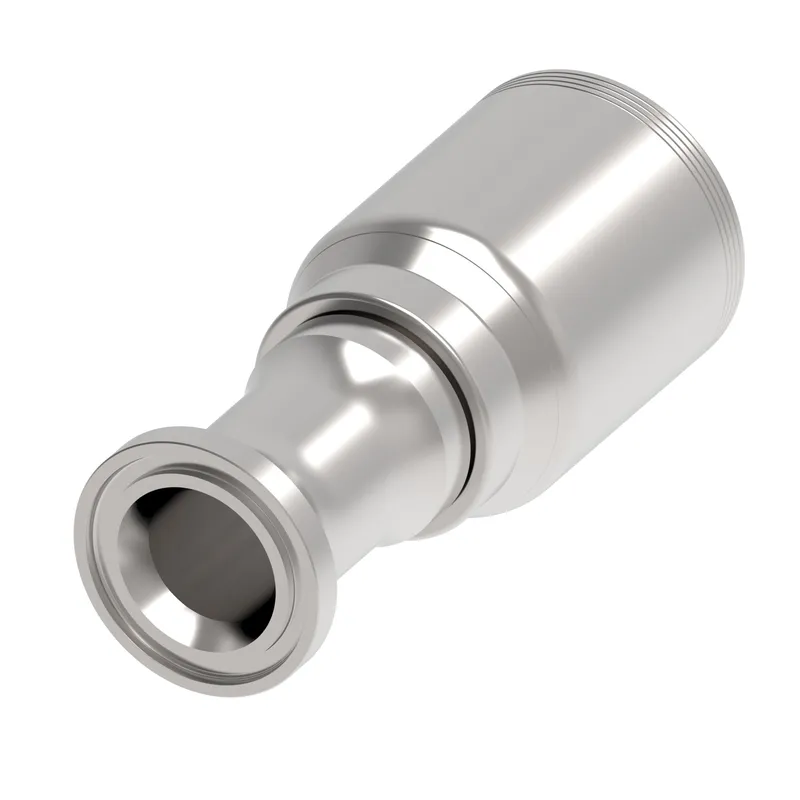

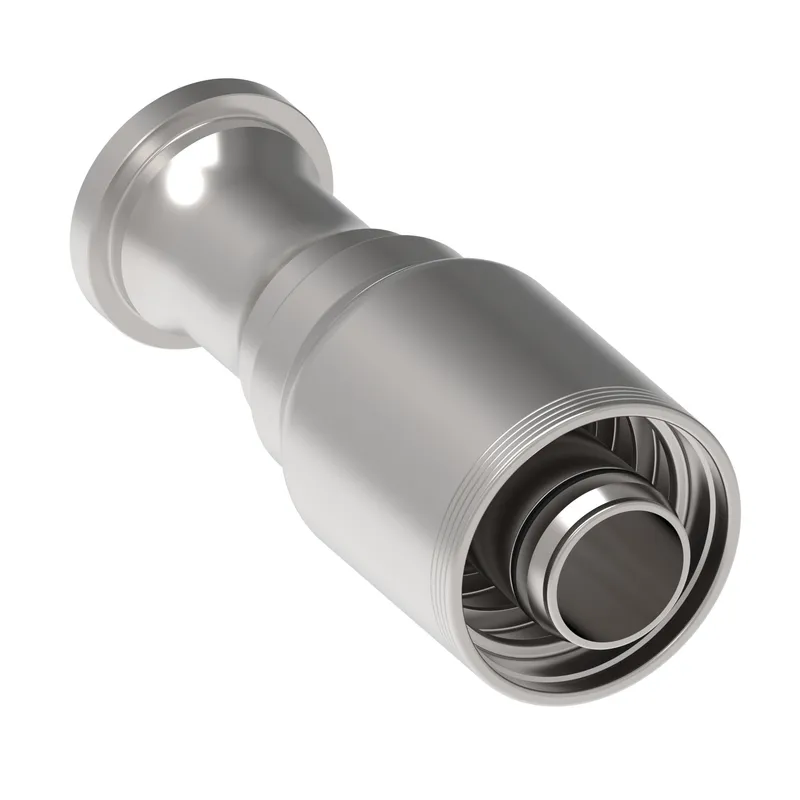

HOSE FTG, 1A/32, C61/32, CS, STR

MPN: 1E32FL32
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1E32FL32?

Danfoss HOSE FTG, 1A/32, C61/32, CS, STR, manufacturer part number 1E32FL32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146132376
A dimension IN	6.990
A dimension MM	177.500
Angle shape	Straight
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Compatible hoses	FC273, FC273B, FC500, GH810, FC254, GH506
Compatible tube OD IN	2.00
Compatible tube OD MM	50.800
Construction Style	Crimp
End size 1	-32
End type 1	Split flange code 61
Finish plating	Dura-Kote
Hose cut off factor IN	3.920
Hose cut off factor MM	99.500
Hose size	-32
Inside diameter IN	1.660
Inside diameter MM	42.100
Product height in	3.390
Product height mm	86.106
Product length in	6.810
Product length mm	172.974
Product material	Carbon steel
Product width in	3.390
Product width mm	86.106 mm
Seal material	Ethylene propylene (EPDM)
Series	1A/Z Series
Thread sealant	No
Tube OD 1 IN	2.000
Tube OD 1 MM	50.800
Working pressure max BAR	206
Working pressure max PSI	3000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
