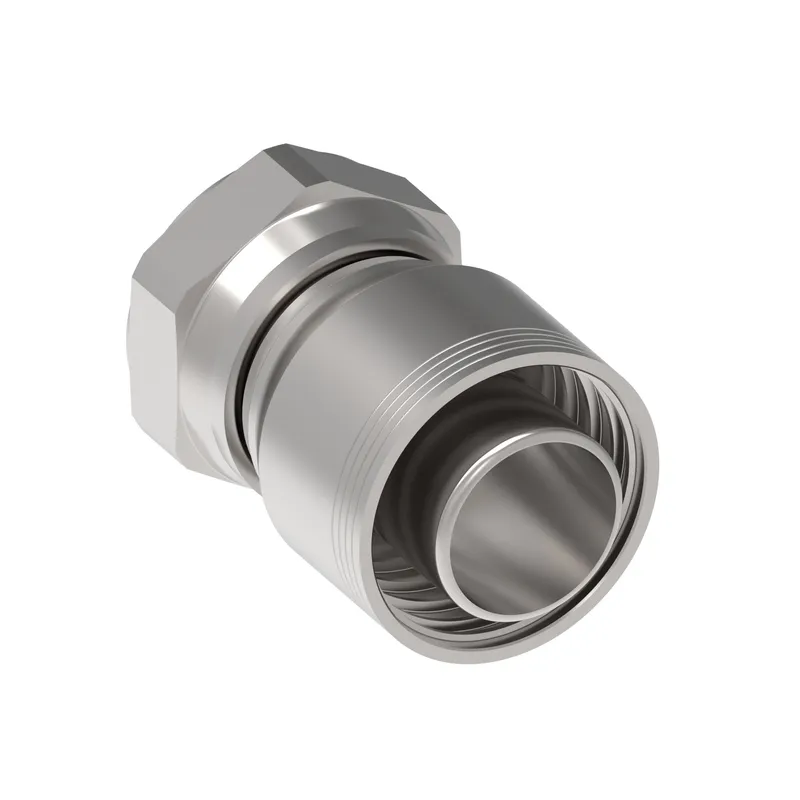

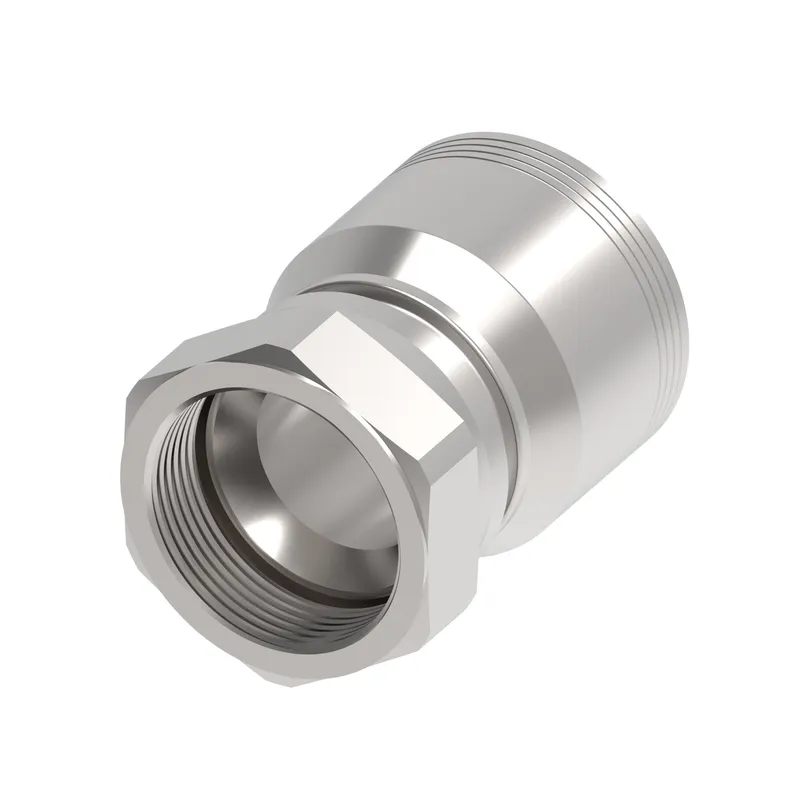

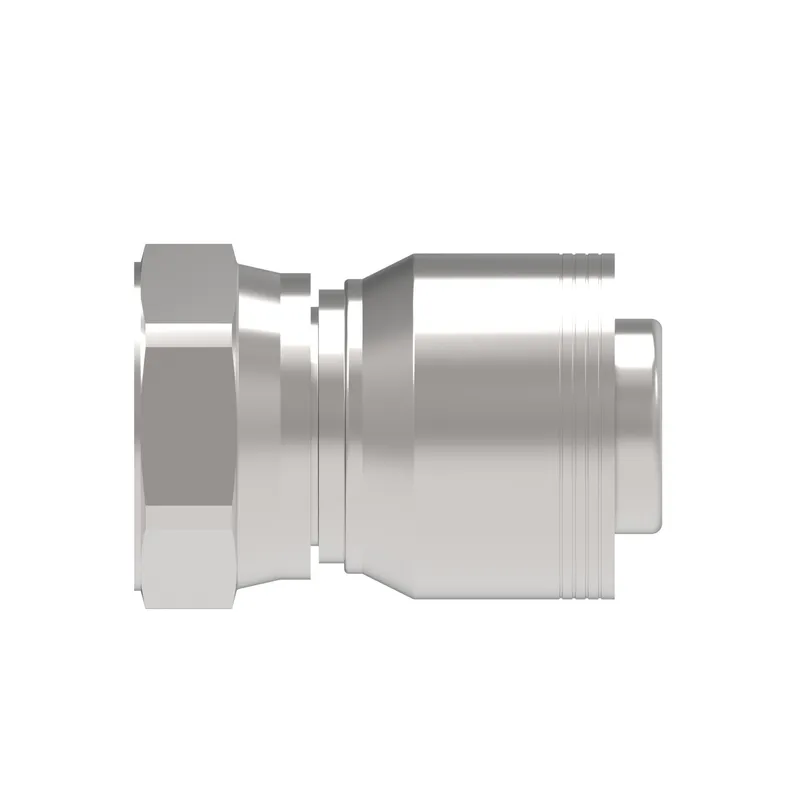

Danfoss 1BA14FJ12

HOSE NIPPLE ASSY,4S/12,JIC-F/14,CS,STR

MPN: 1BA14FJ12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA14FJ12?

Danfoss HOSE NIPPLE ASSY,4S/12,JIC-F/14,CS,STR, manufacturer part number 1BA14FJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130624
A dimension IN	2.720
A dimension MM	69.100
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	EC525, FC736, GH493, FC636
Construction Style	Crimp
End size 1	-14
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.375
Hex size 1 MM	34.925
Hex size 2 IN	1.125
Hex size 2 MM	34.925
Hose cut off factor IN	1.650
Hose cut off factor MM	41.910
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.657
Product height mm	42.087
Product length in	2.840
Product length mm	72.136
Product material	Carbon steel
Product width in	1.657
Product width mm	42.087 mm
Series	B Series
Thread sealant	No
Thread size 1	1 3/16-12 UN
Working pressure max BAR	207
Working pressure max PSI	3000
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40

1BA14FJ12: frequently asked questions

When can 1BA14FJ12 be shipped?

1BA14FJ12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1BA14FJ12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1BA14FJ12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1BA14FJ12, subject to availability and destination.
