Danfoss 1BA12FR10

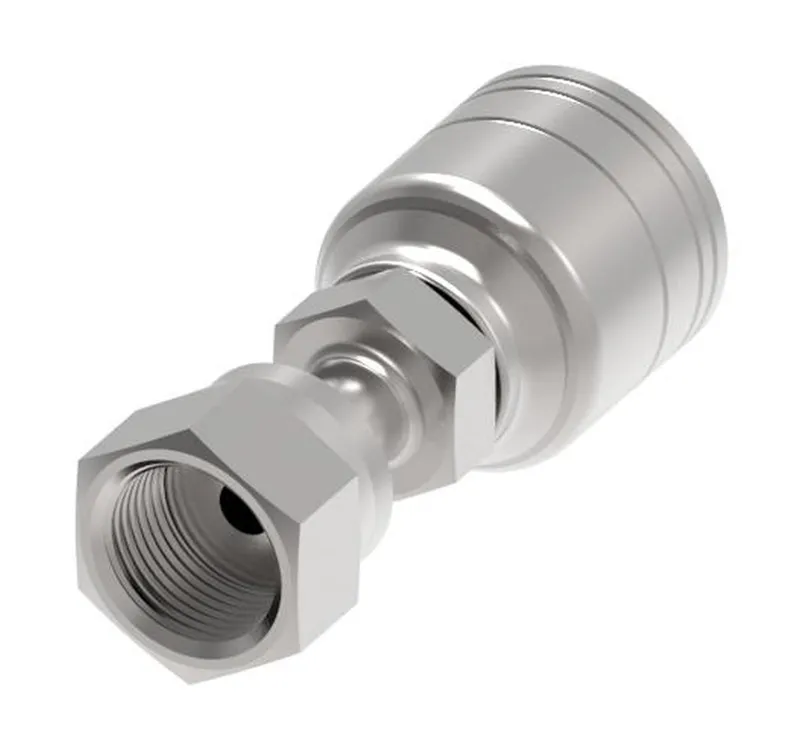

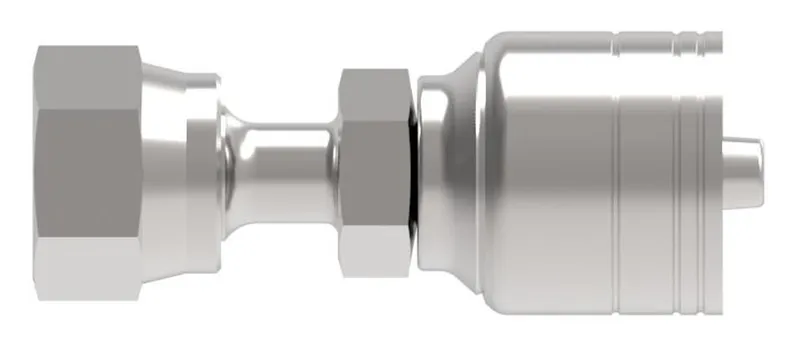

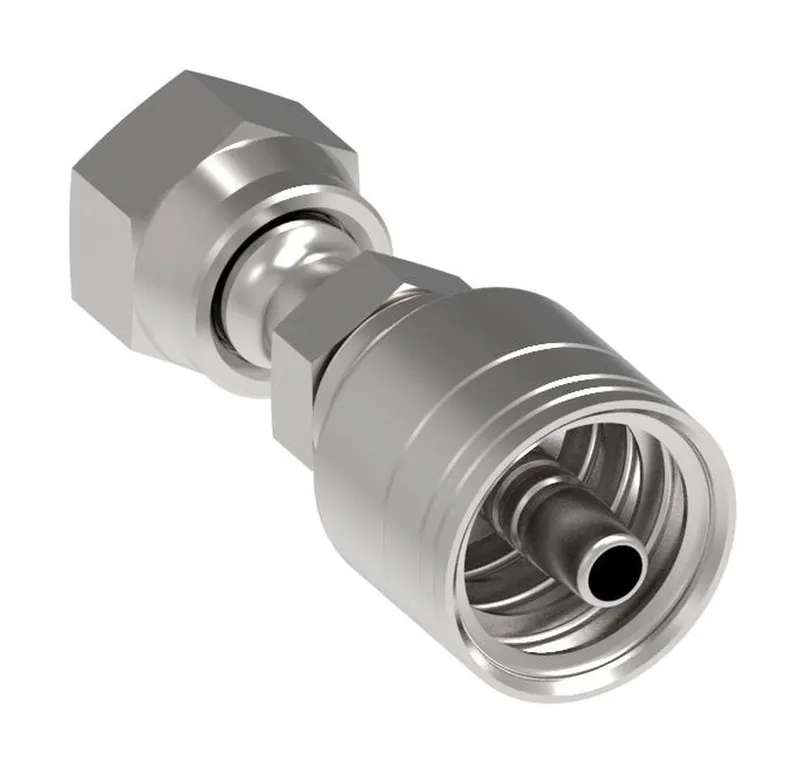

HOSE NIPPLE ASSY,4S/10,ORS-F/12,CS,STR

MPN: 1BA12FR10
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA12FR10?

Danfoss HOSE NIPPLE ASSY,4S/10,ORS-F/12,CS,STR, manufacturer part number 1BA12FR10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130426
A dimension IN	2.650
A dimension MM	67.200
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
End connection torque	65-70 lb-ft(88-95 Nm)
End size 1	-12
End type 1	Female ORFS swivel
Finish plating	Zinc plating
Hex size 1 IN	1.375
Hex size 1 MM	34.9
Hex size 2 IN	1.125
Hex size 2 MM	27.0
Hose cut off factor IN	1.630
Hose cut off factor MM	41.500
Hose size	-10
Inside diameter IN	0.5000
Inside diameter MM	12.8000
Product height in	1.481
Product height mm	37.617
Product length in	2.790
Product length mm	70.866
Product material	Carbon steel
Product width in	1.481
Product width mm	37.617 mm
Series	B Series
Thread sealant	No
Thread size 1	1 3/16-12 UN
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	414.00
Working pressure max PSI	6000.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
