Danfoss 1BA12FJ12

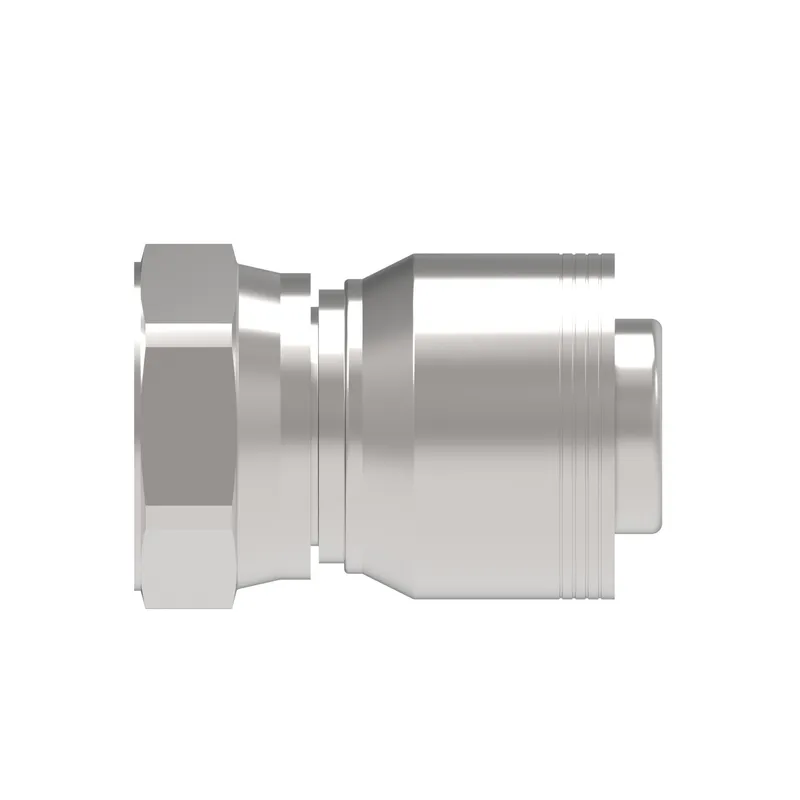

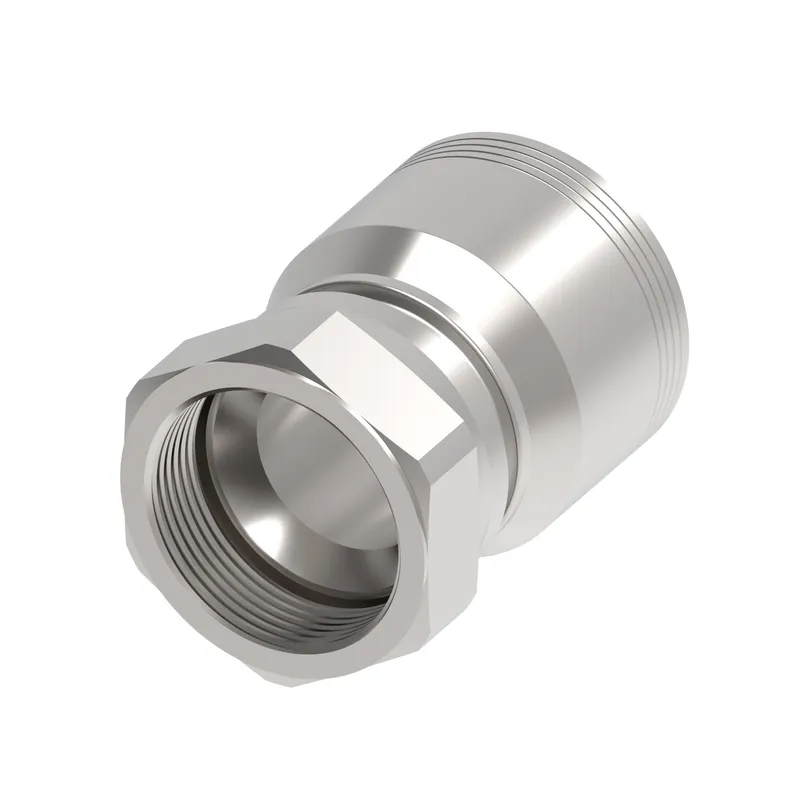

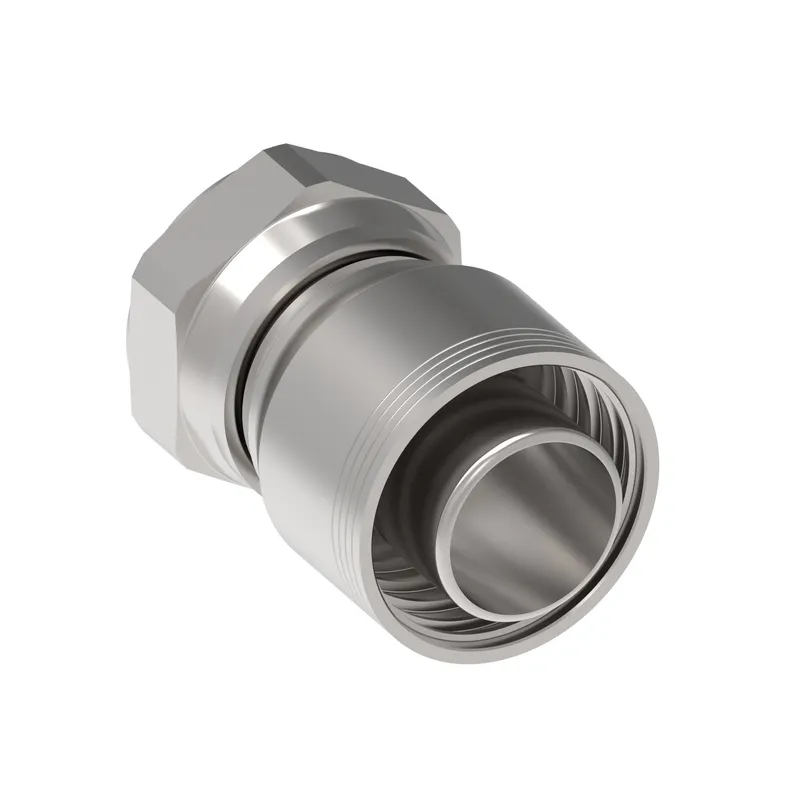

HOSE NIPPLE ASSY,4S/12,JIC-F/12,CS,STR

MPN: 1BA12FJ12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA12FJ12?

Danfoss HOSE NIPPLE ASSY,4S/12,JIC-F/12,CS,STR, manufacturer part number 1BA12FJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130341
A dimension IN	2.720
A dimension MM	69.000
Angle shape	Straight
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC736, GH493, EC525 (Size dependent), FC636
Compatible tube OD IN	0.75
Compatible tube OD MM	19.050
Construction Style	Crimp
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	1.250
Hex size 1 MM	31.8
Hex size 2 IN	1.125
Hex size 2 MM	31.8
Hose cut off factor IN	1.650
Hose cut off factor MM	41.900
Hose size	-12
Inside diameter IN	0.6100
Inside diameter MM	15.5000
Product height in	1.657
Product height mm	42.087
Product length in	2.720
Product length mm	69.088
Product material	Carbon steel
Product width in	1.657
Product width mm	42.087 mm
Series	B Series
Thread sealant	No
Thread size 1	1 1/16-12 UN
Tube OD 1 IN	0.750
Tube OD 1 MM	19.050
Working pressure max BAR	330.00
Working pressure max PSI	4800.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
