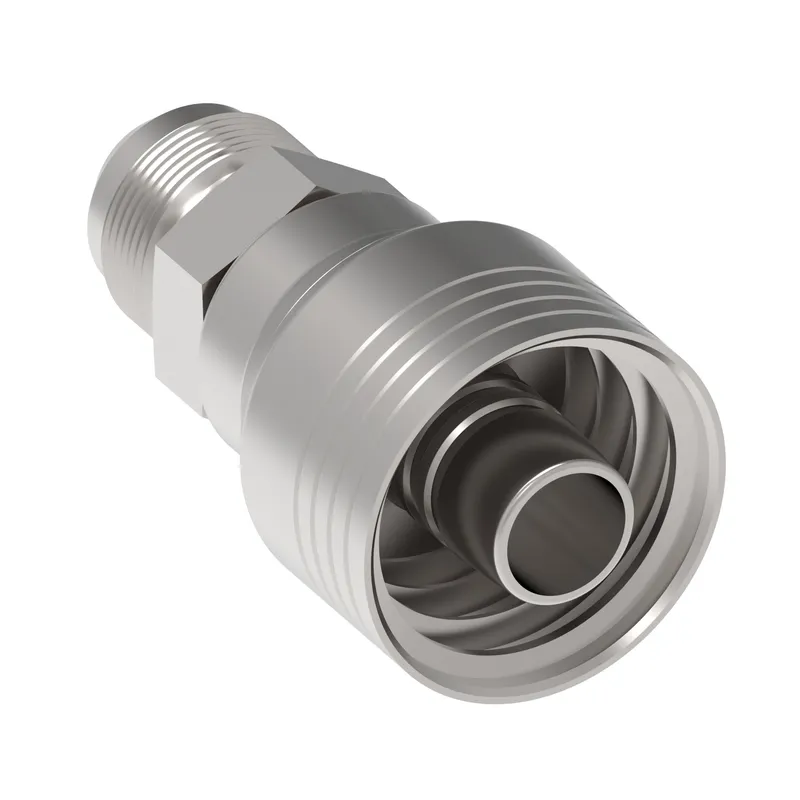

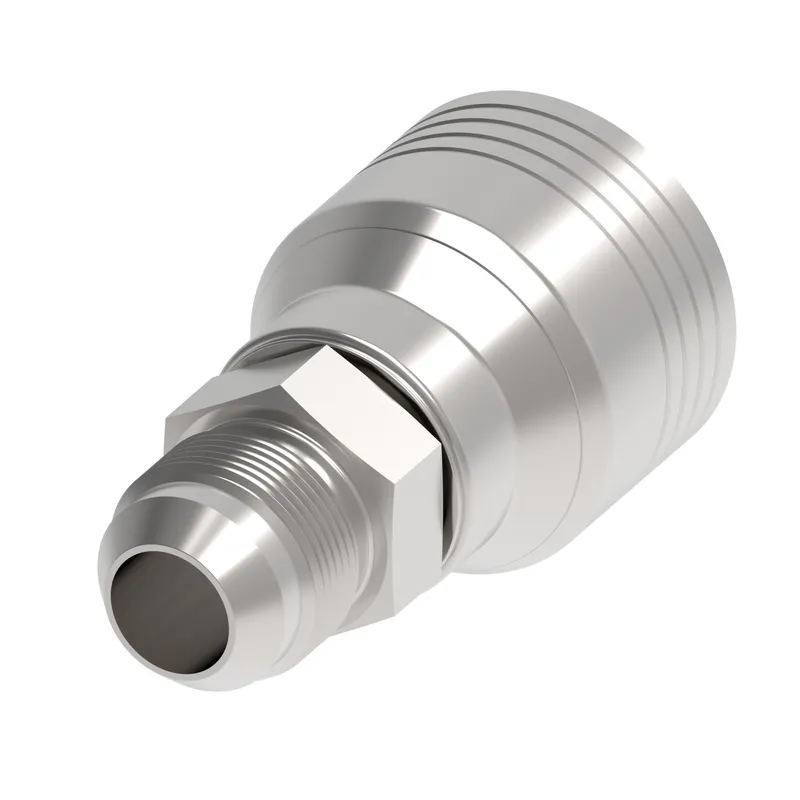

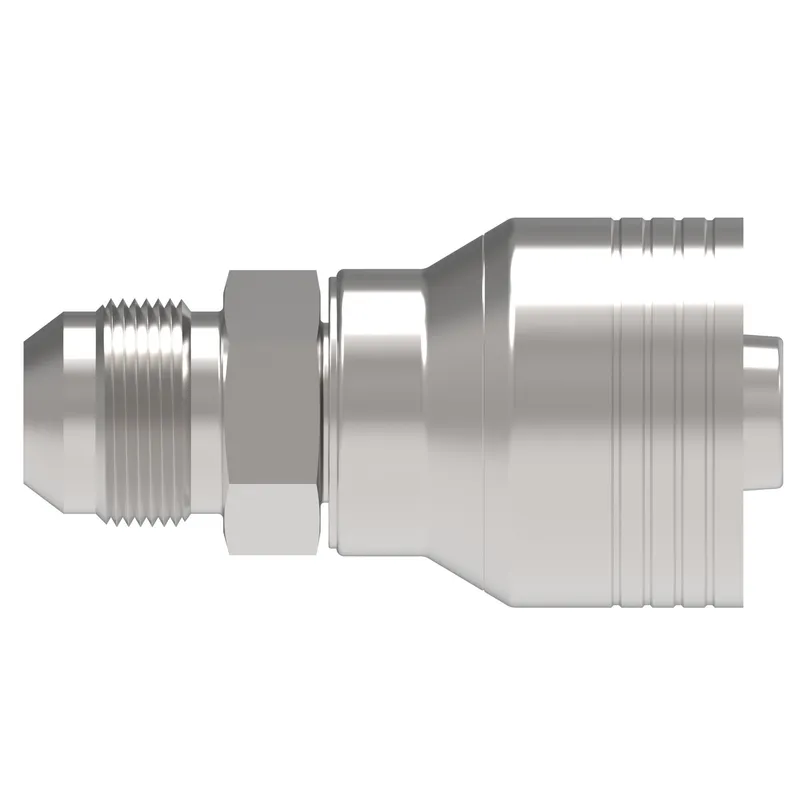

Danfoss 1BA10MJ10

HOSE NIPPLE ASSY,4S/10,JIC-M/10,CS,STR

MPN: 1BA10MJ10
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1BA10MJ10?

Danfoss HOSE NIPPLE ASSY,4S/10,JIC-M/10,CS,STR, manufacturer part number 1BA10MJ10. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130303
A dimension IN	2.730
A dimension MM	69.400
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	0.63
Compatible tube OD MM	15.875
Construction Style	Crimp
End size 1	-10
End type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 1 IN	0.938
Hex size 1 MM	23.8
Hose cut off factor IN	1.590
Hose cut off factor MM	40.500
Hose size	-10
Inside diameter IN	0.4800
Inside diameter MM	12.3000
Product height in	1.481
Product height mm	37.617
Product length in	2.730
Product length mm	69.342
Product material	Carbon steel
Product width in	1.481
Product width mm	37.617 mm
Series	B Series
Thread sealant	No
Thread size 1	7/8-14 UNF
Tube OD 1 IN	0.625
Tube OD 1 MM	15.875
Working pressure max BAR	379.00
Working pressure max PSI	5500.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
