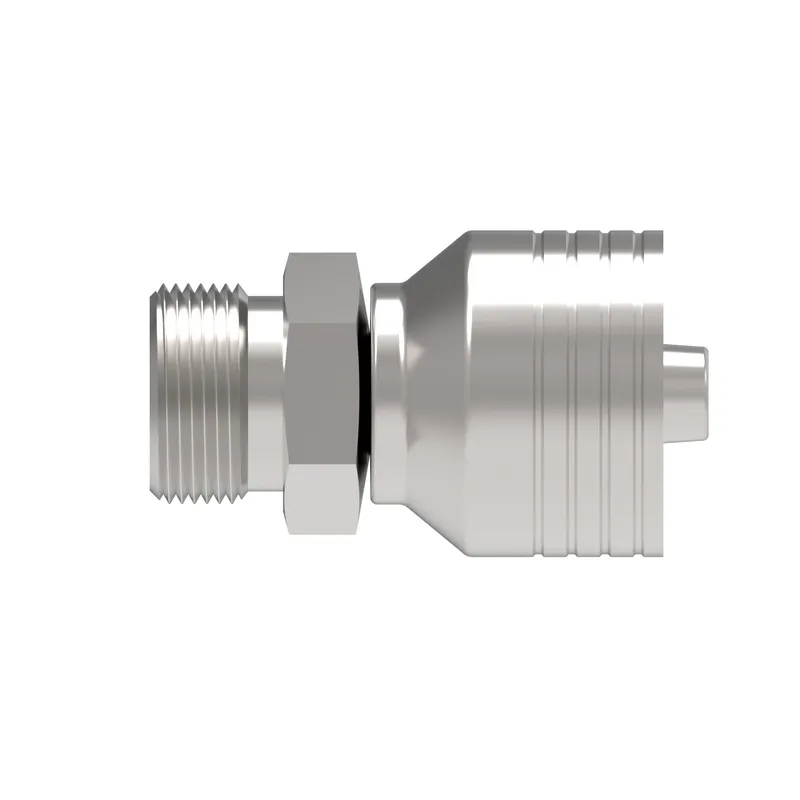

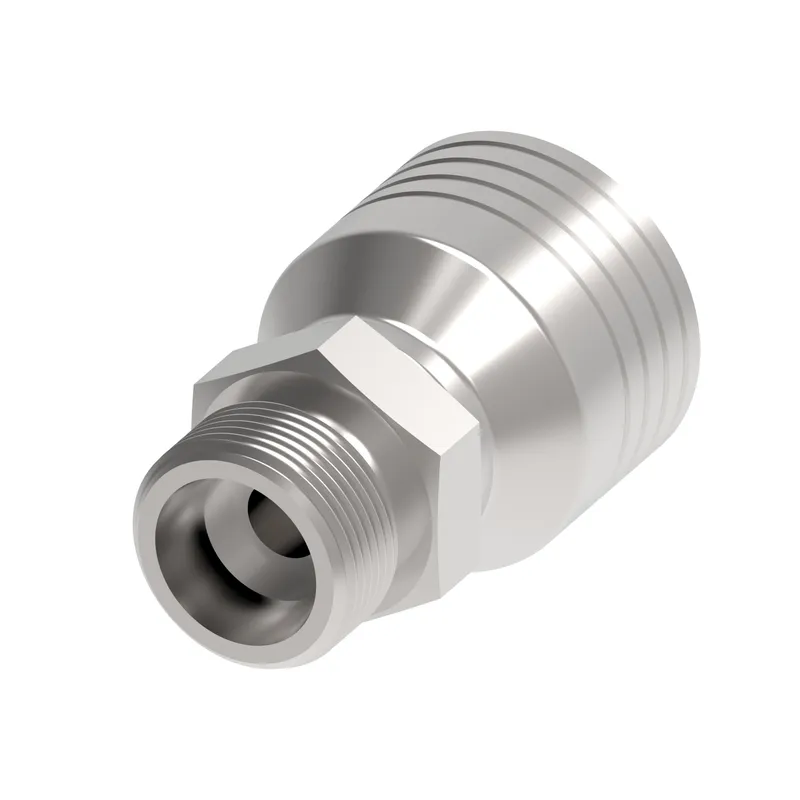

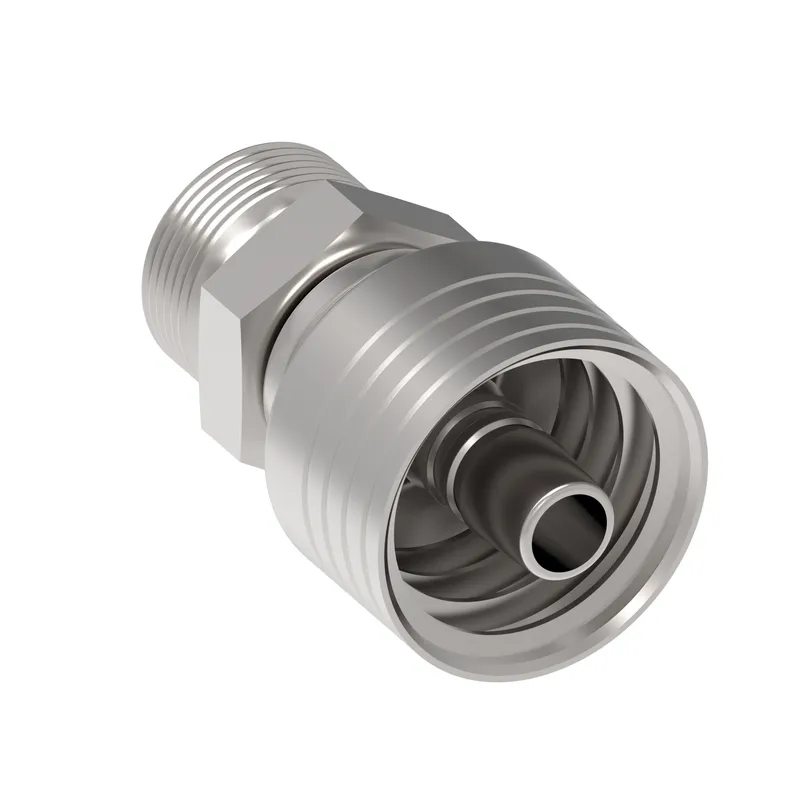

Danfoss 1B8EK6

HOSE NIPPLE ASSY,4S/06,DKOH-B/06,CS,STR

MPN: 1B8EK6
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B8EK6?

Danfoss HOSE NIPPLE ASSY,4S/06,DKOH-B/06,CS,STR, manufacturer part number 1B8EK6. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146130020
A dimension IN	1.980
A dimension MM	50.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Compatible hoses	EC525, FC736, GH493, FC636
Construction Style	Crimp
End connection torque	52-66 lb-ft(70-90 Nm)
End size 1	-6
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	0.870
Hex size 1 MM	22.098
Hose cut off factor IN	0.980
Hose cut off factor MM	25.000
Hose size	-6
Inside diameter IN	0.260
Inside diameter MM	6.700
Product height in	1.158
Product height mm	29.413
Product length in	1.980
Product length mm	50.292
Product material	Carbon steel
Product width in	1.158
Product width mm	29.413 mm
Series	B Series
Thread sealant	No
Thread size 1	M20X1.5
Working pressure max BAR	400
Working pressure max PSI	5600
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
