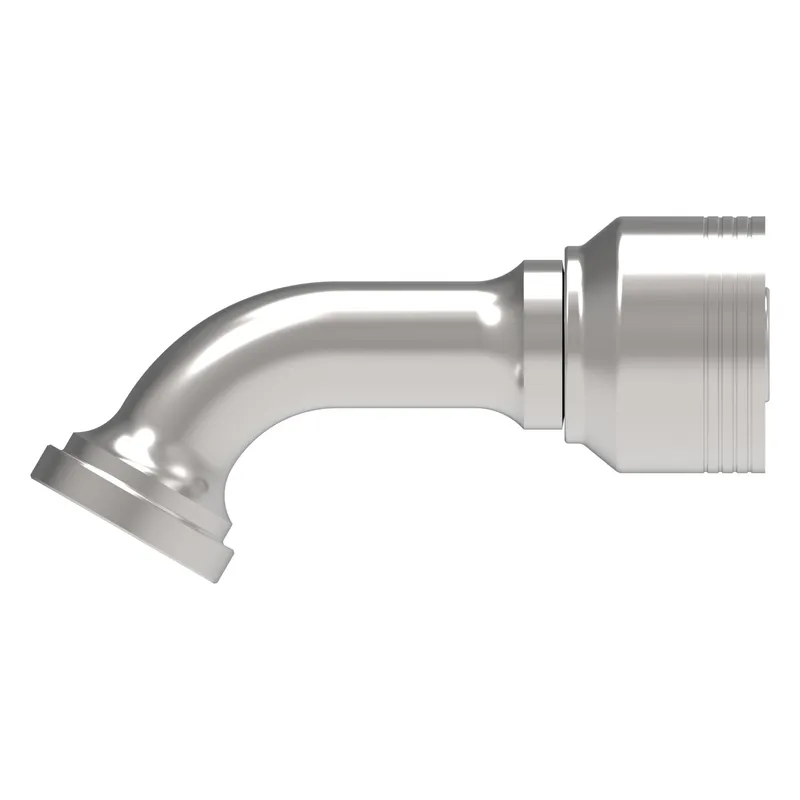

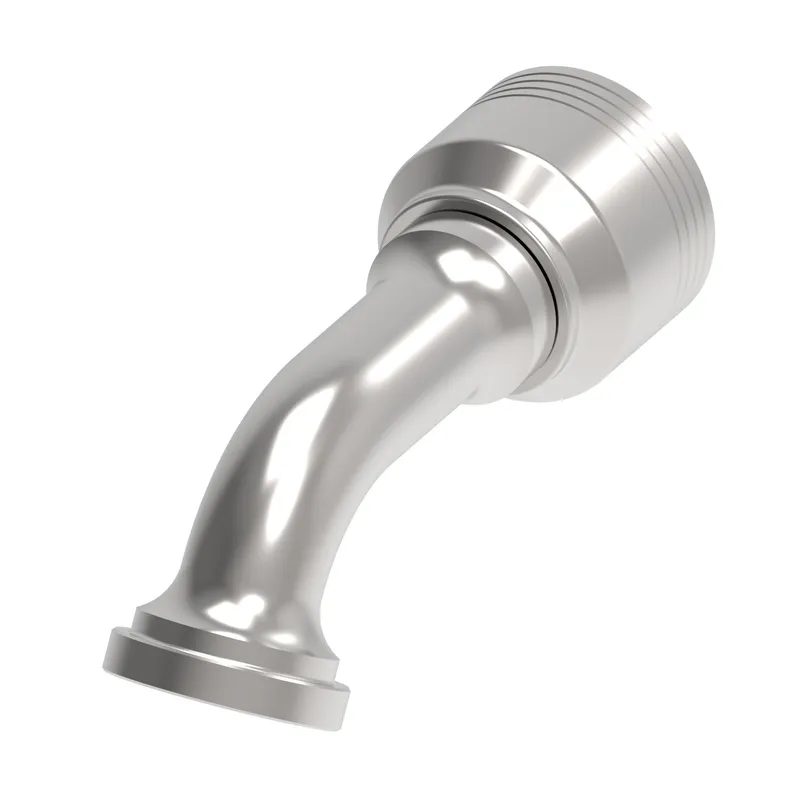

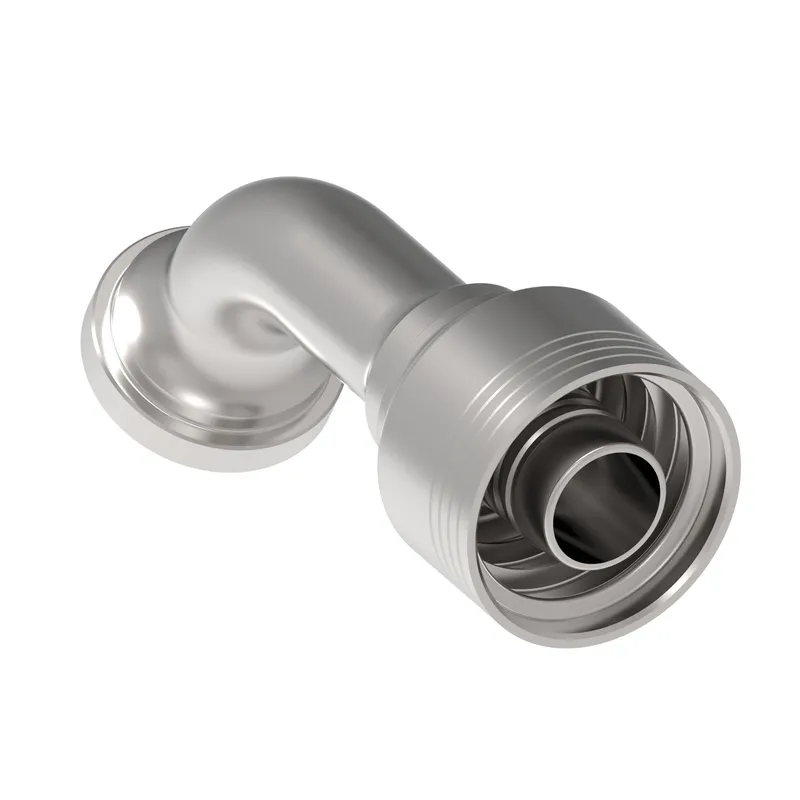

HOSE NIPPLE ASSY, 4S/32, C61/32, CS, 60D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1B32FLG32 be shipped?
1B32FLG32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1B32FLG32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1B32FLG32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B32FLG32, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 4S/32, C61/32, CS, 60D, manufacturer part number 1B32FLG32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146129918 |
| A dimension IN | 7.248 |
| A dimension MM | 184.100 |
| Angle shape | 60 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636 |
| Compatible tube OD IN | 2.00 |
| Compatible tube OD MM | 50.800 |
| Construction Style | Crimp |
| Drop dimension IN | 2.874 |
| Drop dimension MM | 73.00 |
| End size 1 | -32 |
| End type 1 | Split flange code 61 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 5.196 |
| Hose cut off factor MM | 132.000 |
| Hose size | -32 |
| Inside diameter IN | 1.622 |
| Inside diameter MM | 41.200 |
| Product height in | 2.870 |
| Product height mm | 72.898 |
| Product length in | 7.680 |
| Product length mm | 195.072 |
| Product material | Carbon steel |
| Product width in | 3.157 |
| Product width mm | 80.187 mm |
| Series | B Series |
| Thread sealant | No |
| Tube OD 1 IN | 2.000 |
| Tube OD 1 MM | 50.800 |
| Working pressure max BAR | 206 |
| Working pressure max PSI | 3000 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
