Danfoss 1B32FL32

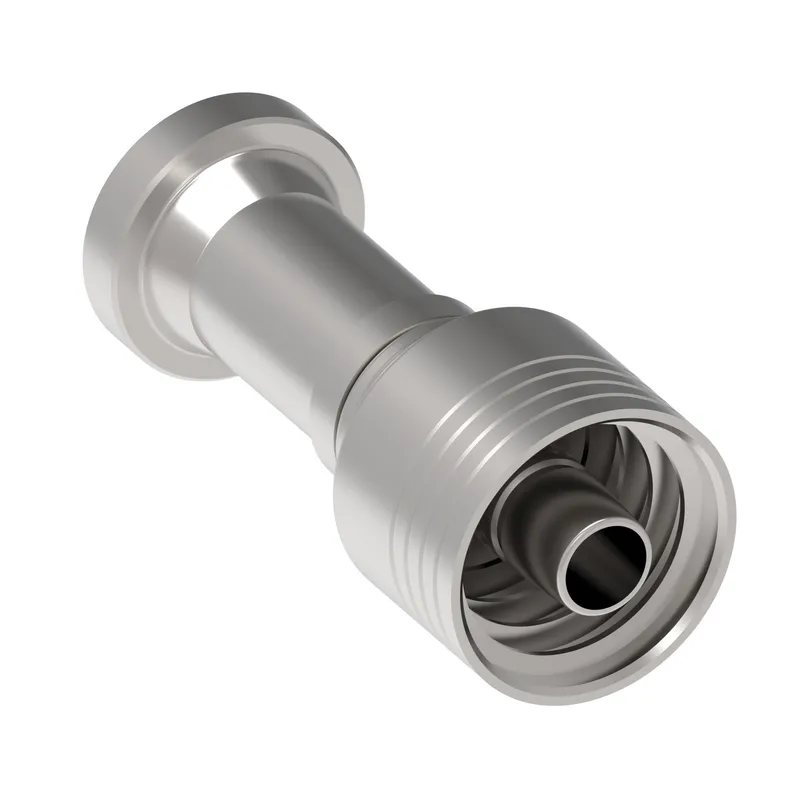

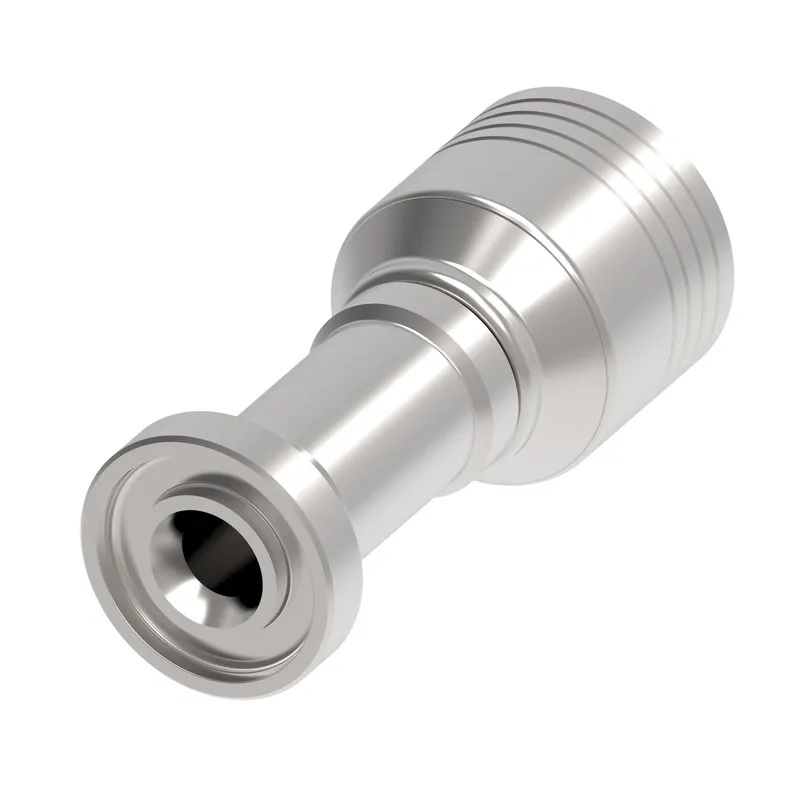

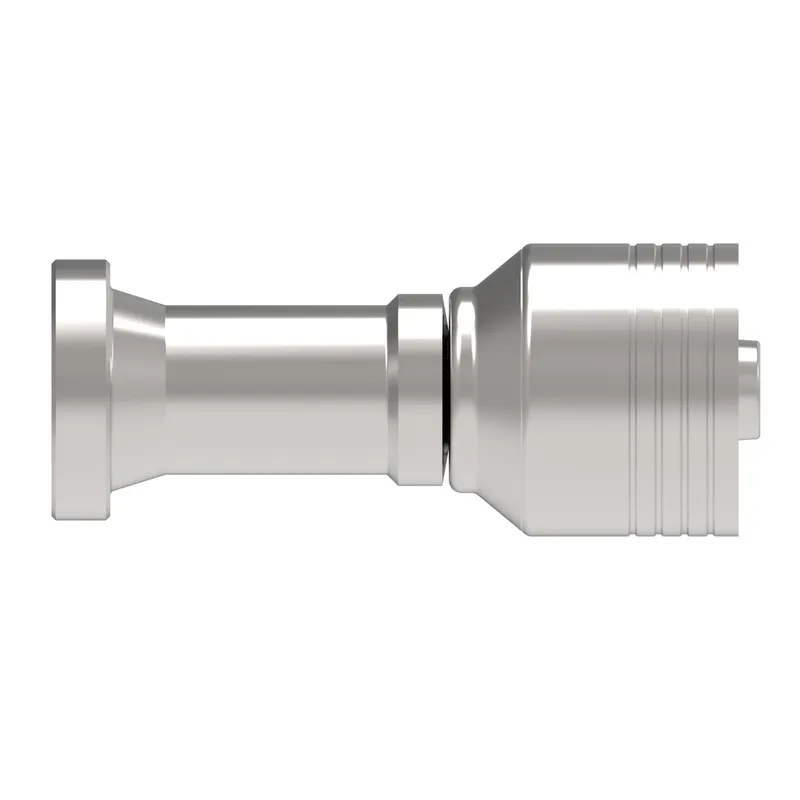

HOSE NIPPLE ASSY, 4S/32, C61/32, CS, STR

MPN: 1B32FL32
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B32FL32?

Danfoss HOSE NIPPLE ASSY, 4S/32, C61/32, CS, STR, manufacturer part number 1B32FL32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146129833
A dimension IN	4.650
A dimension MM	118.100
Angle shape	Straight
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Compatible hoses	EC525, FC736, GH493, FC636
Compatible tube OD IN	2.00
Compatible tube OD MM	50.800
Construction Style	Crimp
End size 1	-32
End type 1	Split flange code 61
Finish plating	Zinc plating
Hose cut off factor IN	2.600
Hose cut off factor MM	66.000
Hose size	-32
Inside diameter IN	1.7500
Inside diameter MM	44.4000
Product height in	3.157
Product height mm	80.187
Product length in	4.650
Product length mm	118.110
Product material	Carbon steel
Product width in	3.157
Product width mm	80.187 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	2.000
Tube OD 1 MM	50.800
Working pressure max BAR	206.00
Working pressure max PSI	3000.00
Working temperature max C	149
Working temperature max F	300
Working temperature min C	-40
Working temperature min F	-40
