Danfoss 1B16FH12

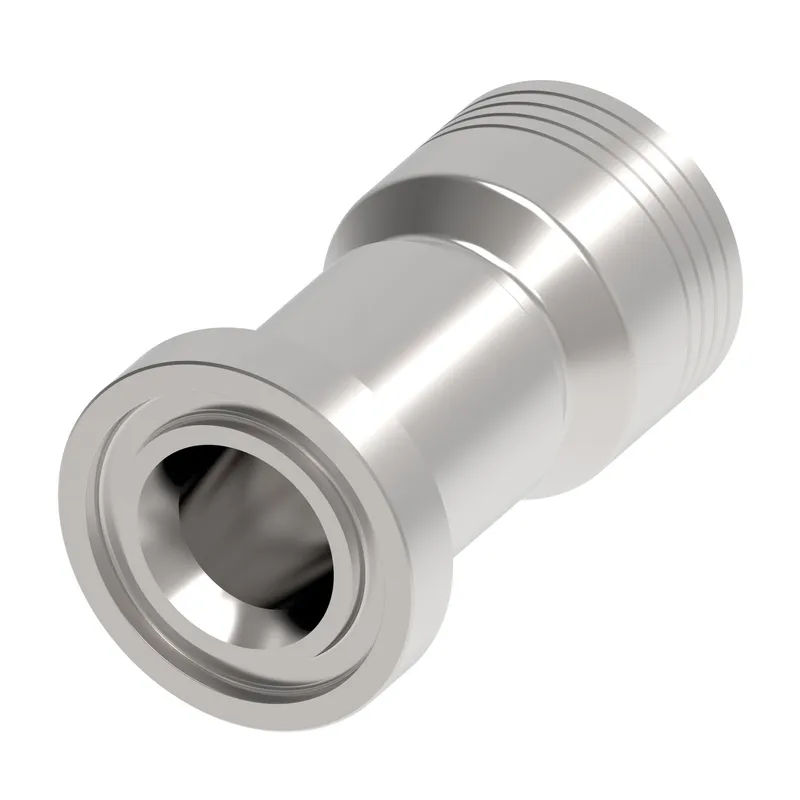

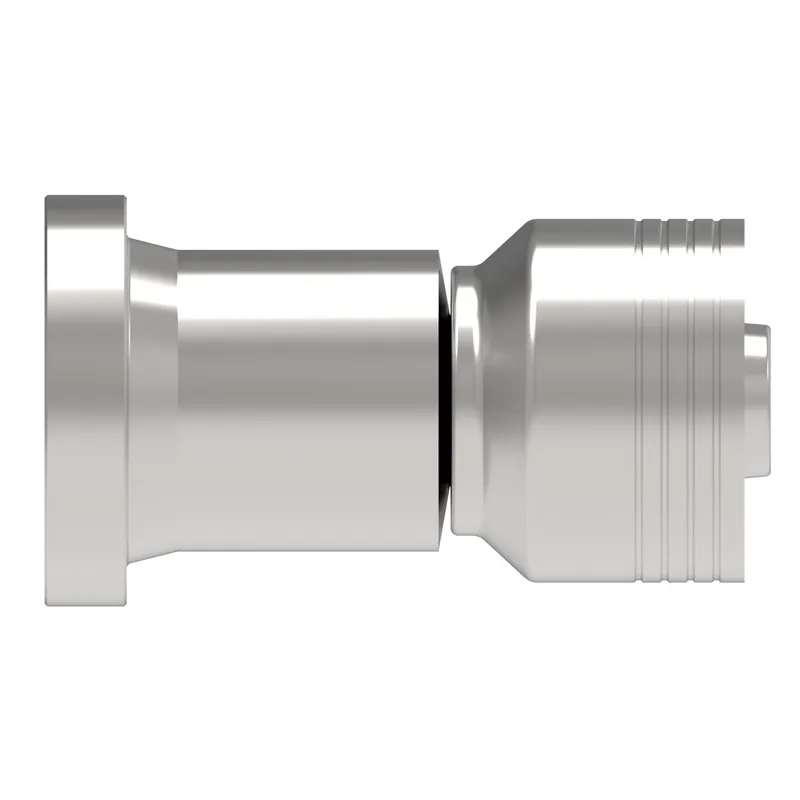

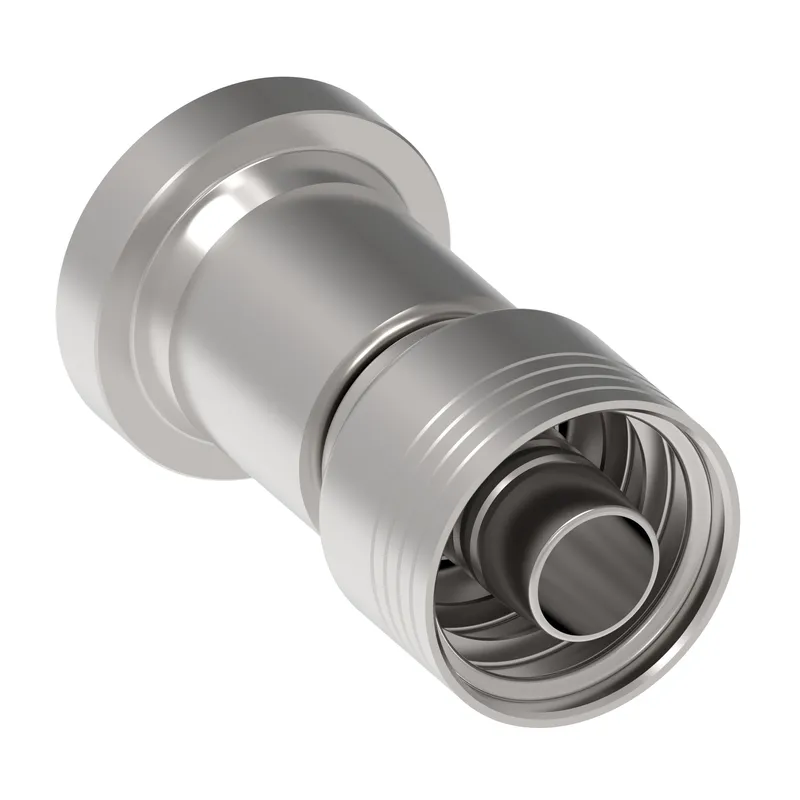

HOSE NIPPLE ASSY, 4S/12, C62/16, CS, STR

MPN: 1B16FH12
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B16FH12?

Danfoss HOSE NIPPLE ASSY, 4S/12, C62/16, CS, STR, manufacturer part number 1B16FH12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146128935
A dimension IN	3.190
A dimension MM	81.000
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	1.00
Compatible tube OD MM	25.400
Construction Style	Crimp
End size 1	-16
End type 1	Split flange code 62
Finish plating	Zinc plating
Hose cut off factor IN	2.120
Hose cut off factor MM	53.800
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.657
Product height mm	42.087
Product length in	3.310
Product length mm	84.074
Product material	Carbon steel
Product width in	1.657
Product width mm	42.087 mm
Seal material	Ethylene propylene (EPDM)
Series	B Series
Thread sealant	No
Tube OD 1 IN	1.000
Tube OD 1 MM	25.400
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	93
Working temperature max F	200
Working temperature min C	-40
Working temperature min F	-40
