Danfoss 1B16

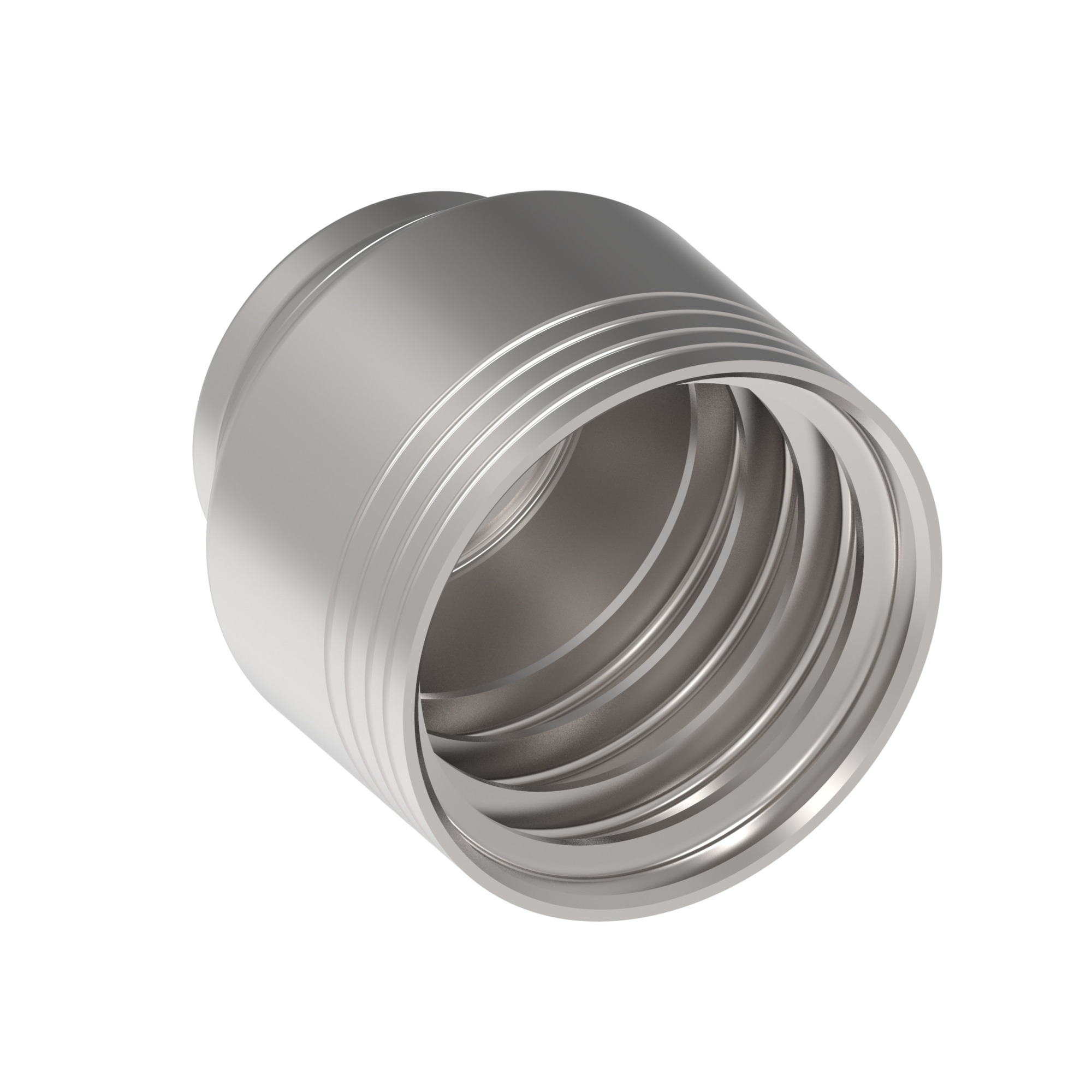

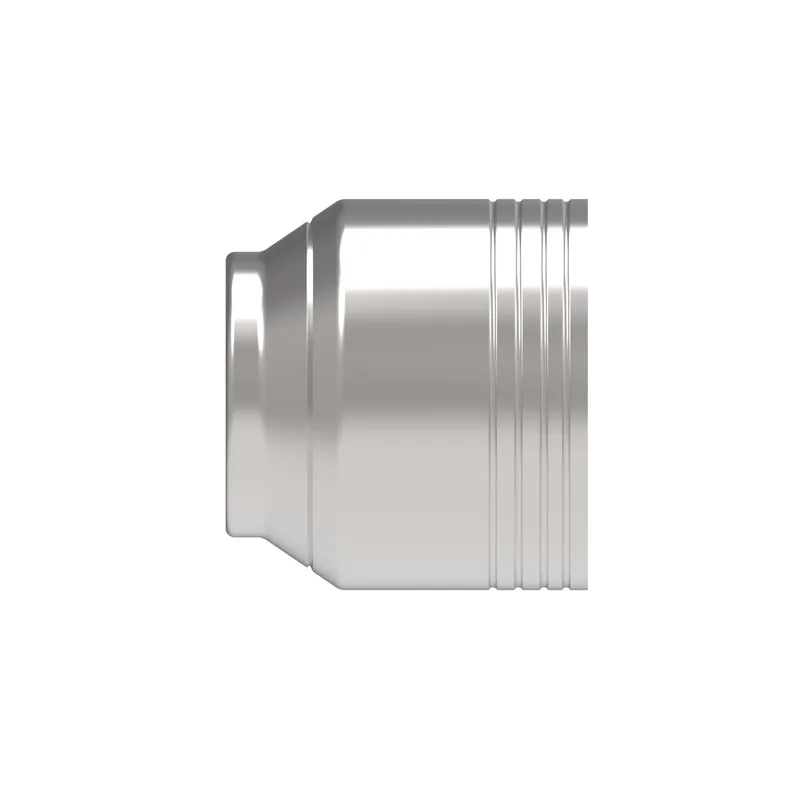

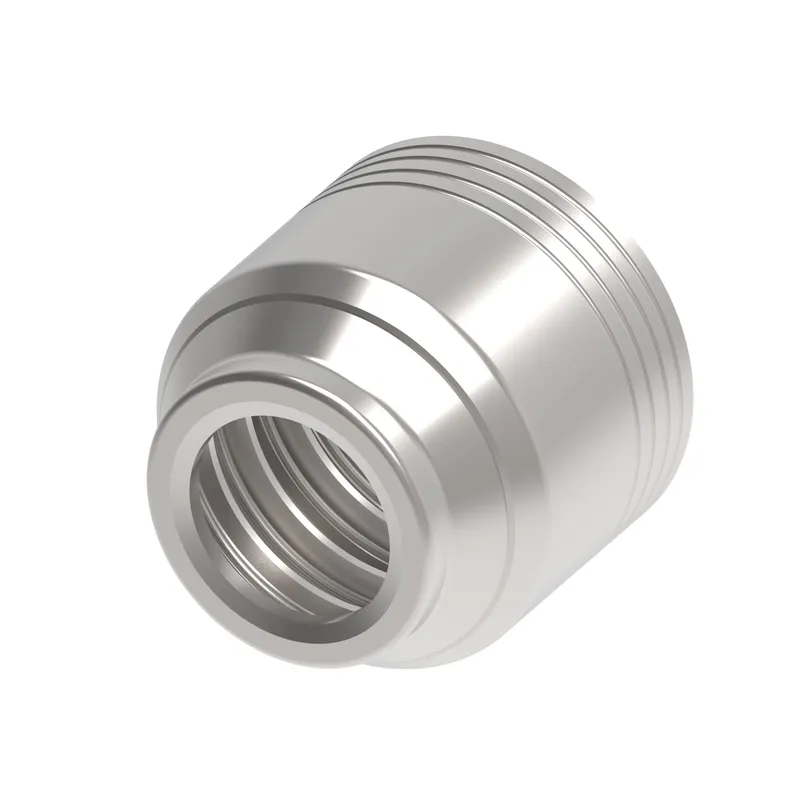

SOCKET-PERM, 4S/16, CS

MPN: 1B16
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B16?

Danfoss SOCKET-PERM, 4S/16, CS, manufacturer part number 1B16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	1.626
A dimension MM	41.300
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	GH493
Construction Style	Crimp
End size 1	-16
Finish plating	Zinc plating
Hose size	-16
Inside diameter IN	1.3310
Inside diameter MM	33.8000
Product height in	2.081
Product height mm	52.857
Product length in	1.626
Product length mm	41.300
Product material	Carbon steel
Product width in	2.081
Product width mm	52.857 mm
Series	B Series
Thread sealant	No
Working temperature max C	126
Working temperature max F	260
Working temperature min C	-40
Working temperature min F	-40
